Chapter 5, Connector information – Acer AL1912 User Manual
Page 45
45

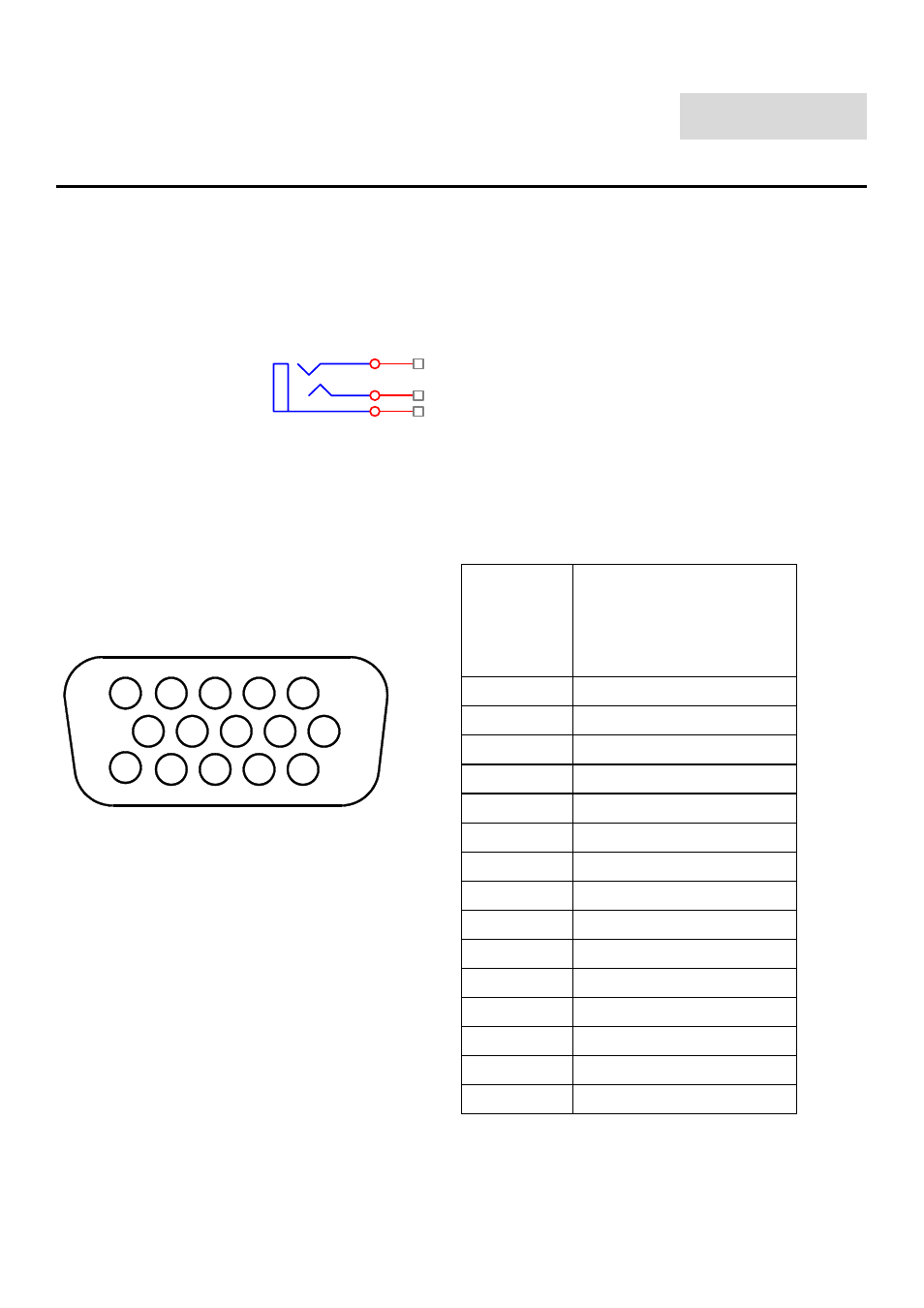

Chapter 5
Connector Information
Phonejack stereo
PIN1. right : CEE22 typed connector
PIN2. Left
PIN3. Gnd : Line-in receptacle
Video input Connector
Analog Video input Connector: 15pins mini D-Sub
Table 2.4.5. Pin assignment for D-sub connector
PIN NO.
Separate Sync
1 RED
VIDEO
2 GREEN
VIDEO
3 BLUE
VIDEO
4 GROUND
5 GROUND
6 RED
GROUND
7 GREEN
GROUND
8 BLUE
GROUND
9
PC5V (+5V DDC)
10 CABLE
DETECTION
11 GROUND
12 SDA
13 H.SYNC
14 V.SYNC
15
10
5
1
6
11
15 SCL
J1
PHONEJACK STEREO
1
2
3
