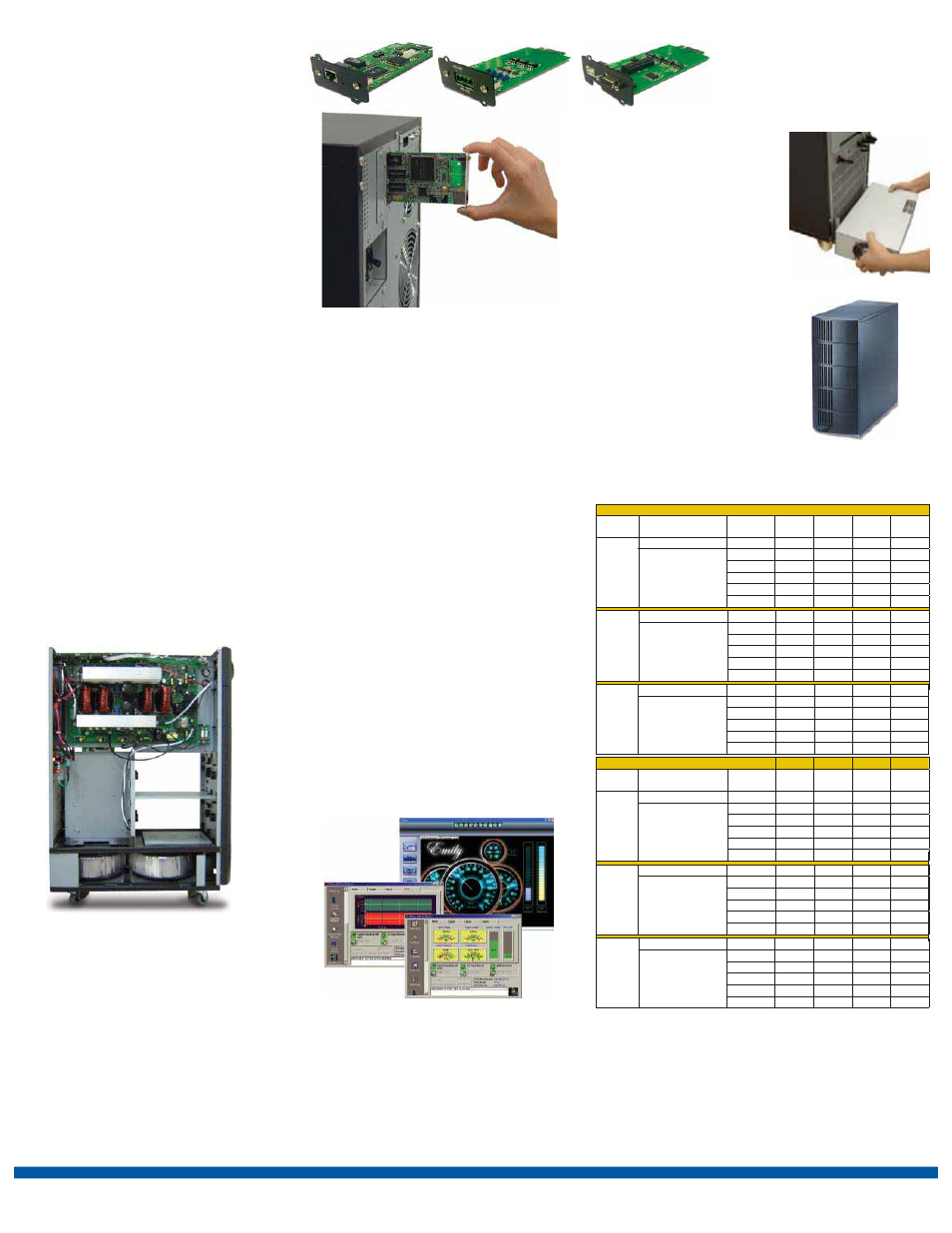

Variety of Customer
Options Slots
This UPS also provides two customer
option communication slots in addition
to the standard RS232 port. All
com-munications cards are designed
for simple installation; electrical
connections are made through a
26-pin edge card connector. The
fi rst RS232 port on the rear panel will
remain active, even though optional
communication cards are installed.
Communications Capability
The UniStar ® P is shipped with standard
monitoring/shutdown software. The
software allows control of the UPS and
graceful shutdown when the utility
power fails, but also allows the user to:
■
Remotely test the major operating
functions of the UPS
■
Communicate via SNMP/WEB card
■
Access UPS functions via the WEB
Hot-Swappable Battery
The UniStar ® P allows users to replace
batteries without electric shock hazard,
while the UPS supplies continuous
power to your application.
Optional External
Battery Charger
The optional charger can be
installed for fast recharge of
the extended battery pack.
■
Power Output: 1000W
■
Mounting: UPS or wall mount
Matching Extended
Battery Pack
Optional matching battery packs
are available to easily extend the
UPS runtime to several hours.
User Personalization
Through the LCD front panel, you may
easily change the parameters and
settings built in to the DSP controllers,
such as UPS operation modes, voltage
confi gurations, synchronization
frequency windows (for use with
generators), bypass voltage tolerances
and audible alarm.
Advanced Battery Management
The UniStar ® P automatically manages
the end of discharge voltage according
to load. This function prevents deep-
discharge of the built-in battery during
a power failure and saves battery life.
Galvanic Isolation Transformer
The galvanic isolation transformer
provides not only complete isolation
between the input and the output, but
also various secondary voltages, such
as 220/230/240 Vac, 208/120 Vac and
240/120 Vac.
Cold Start Function
Users can turn on the UPS without
utility power available.
6, 8 & 10kVA Single Phase UPS Tower
Extended Battery Run Times (minutes)
Note: External 1000W Battery Charger (P/N SC-CHG-1000) required
every (2) External Battery Cabinets
40 X Cabinet (2 strings)
UPS
Size
Part
Number
Qty. of
Cabinets
25%
Load
50%
Load
75%
Load
100%
Load
6kVA
Internal 0 56 22 12 8
SC-BP6000T-2
1 226 95 56 38
2 420 180 109 75
3 629 273 166 116
4 847 370 226 158
5 1073 471 289 203
8kVA
Internal 0 64 21 12 7
SC-BP1100T-2
1 216 91 54 37
2 402 172 104 72
3 602 261 158 110
4 812 354 216 151
5 1028 451 276 194
10kVA
Internal 0 40 15 8 5
SC-BP1100T-2
1 164 68 40 27
2 307 131 78 54
3 461 198 120 83
4 623 270 154 114
5 790 345 210 147
60 X Cabinet (3 strings)
UPS
Size
Part
Number
Qty. of
Cabinets
25%
Load
50%
Load
75%
Load
100%
Load
6kVA
Internal 0 56 22 12 8
SC-BP6000T-3
1 321 137 82 56
2 629 273 106 116
3 959 420 257 180
4 1305 576 354 249
5 1660 737 454 321
8kVA
Internal 0 64 21 12 7
SC-BP1100T-3
1 307 131 78 54
2 602 261 158 110
3 919 402 246 172
4 1251 551 338 238
5 1594 706 435 307
10kVA
Internal 0 40 15 8 5
SC-BP1100T-3
1 234 98 58 40
2 461 198 120 83
3 706 307 187 130
4 963 422 258 181
5 1229 541 332 234
