214 piston flow meter, 875 sq, Not to scale 2.26 – Max Machinery 216 Piston Flow Meter User Manual
Page 17: 00 sq
Max Machinery, Inc. 210 Series User Manual © Copyright 2013
Rev. 002Q4
17
214 Piston Flow Meter
3 c
P
Expected Failure Area
Continuous Duty Area
Intermitte
nt Duty Area
3
000
cP
10
00
cP
30 cP
Flow Rate (cc/min)
Pressure Drop (psi)
0
30
35
5
10
15
20
25
TYPICAL PRESSURE DROP (Delta P versus Flow rate for various viscosities)
10
20
30
50
100
200
300
500
1000
2k
3k
5k
10k
—0.5 bar
—1 bar
—1.5 bar
—2 bar
10
0 cP
3
00 c
P
4.875 SQ”
(124mm)

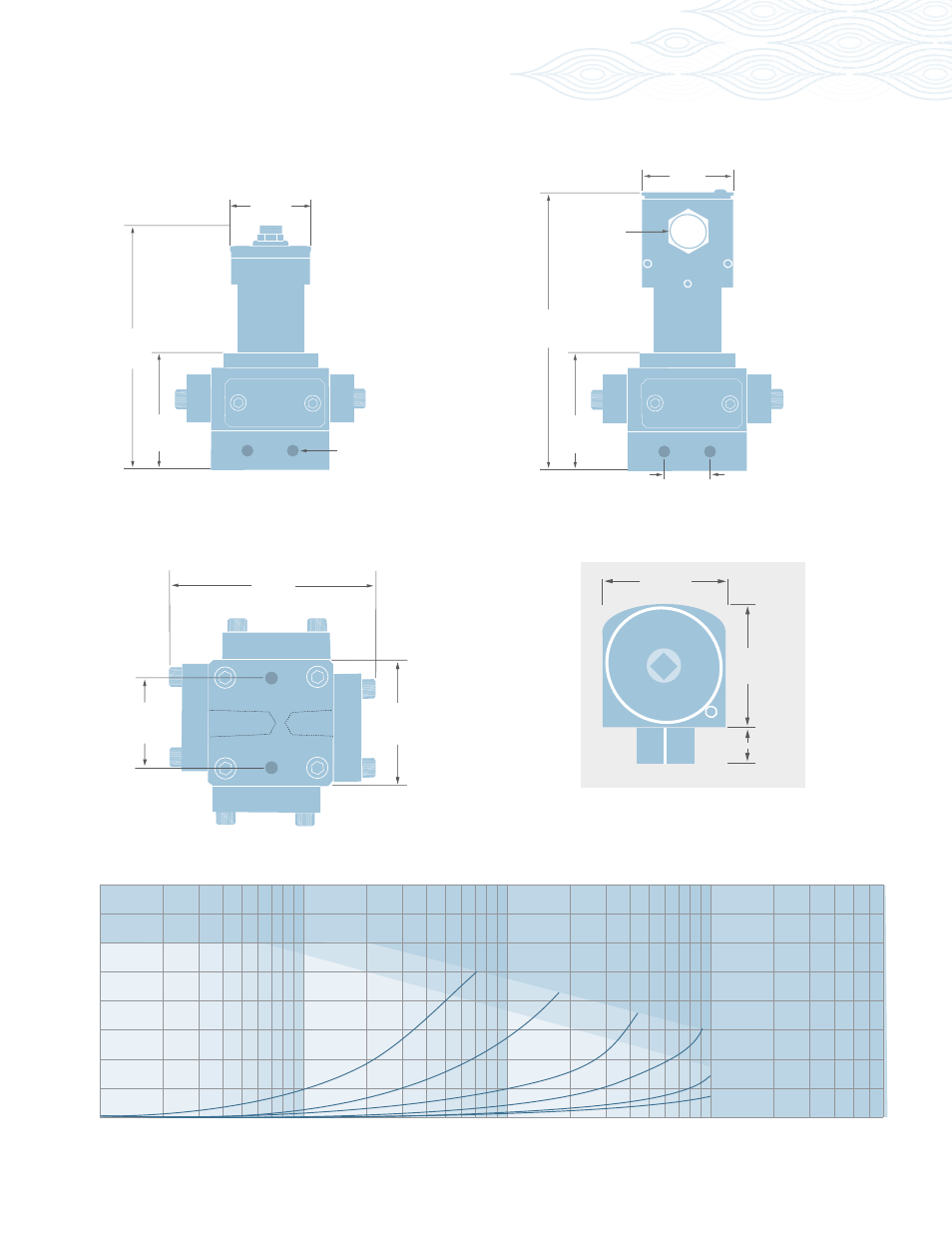

BOTTOM VIEW
MODEL 214 WITH INDUSTRIAL
HOUSING TRANSMITTER
MODEL 214 WITH EX-PROOF
HOUSING TRANSMITTER
EX-PROOF HOUSING
TOP VIEW
not to scale
2.26”
(57mm)
2.26”
(57mm)
0.65”
(17mm)
1.93”
(49mm)
6.3”
(160mm)
2.57”
(65mm)
2.26”
(57mm)
6.61”
(168mm)
2.57”
(65mm)
in
out
3.00 SQ”
(76mm)
1/2”
FNPT
mounting holes
1/4-20NC
(6) places
1.125”
(29mm)
2.125”
(54mm)
