General Description
The Max 234 Series Flow Meters are positive displacement units specifically designed to be compatible with aqueous
based solutions . Metering is accomplished by four radial pistons which are moved by the fluid stream being
monitored . The motion of the pistons, which is proportional to flow, moves a pair of magnets . A built in electronic
transmitter detects the magnetic motion and provides five volt CMOS/TTL compatible square wave and quadrature
outputs .
The Model 234 is generally used to monitor flows in the 10 cc/min to 1 .5 gpm range with fluid temperatures up to
2300F . Weather-tight or amphenol electronic connector versions are available to meet environmental conditions .
Optional seal materials may be specified for optimal fluid compatibility .

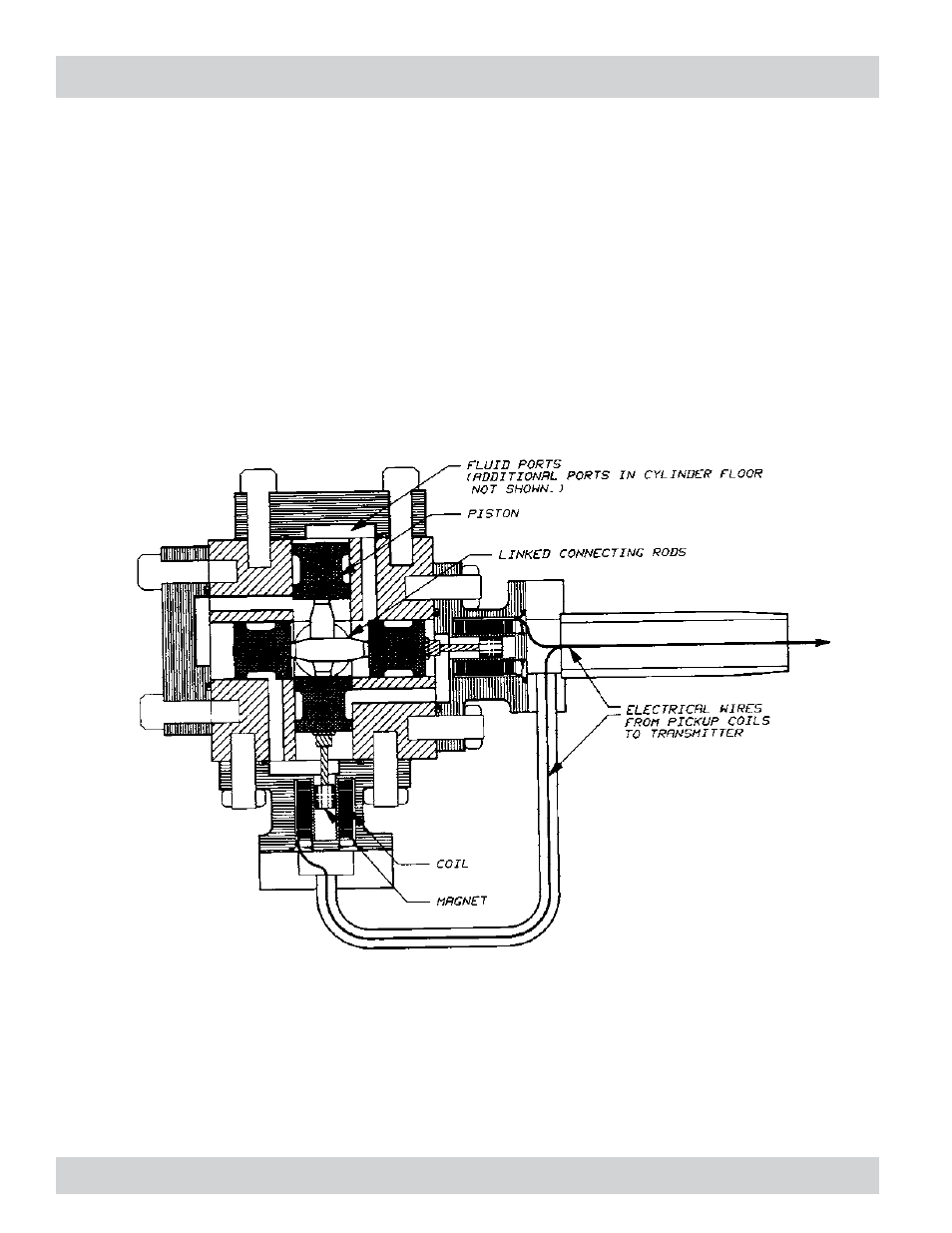

234 Cross Section
