6
2. SPECIFICATIONS AND TECHNI-
CAL DATA

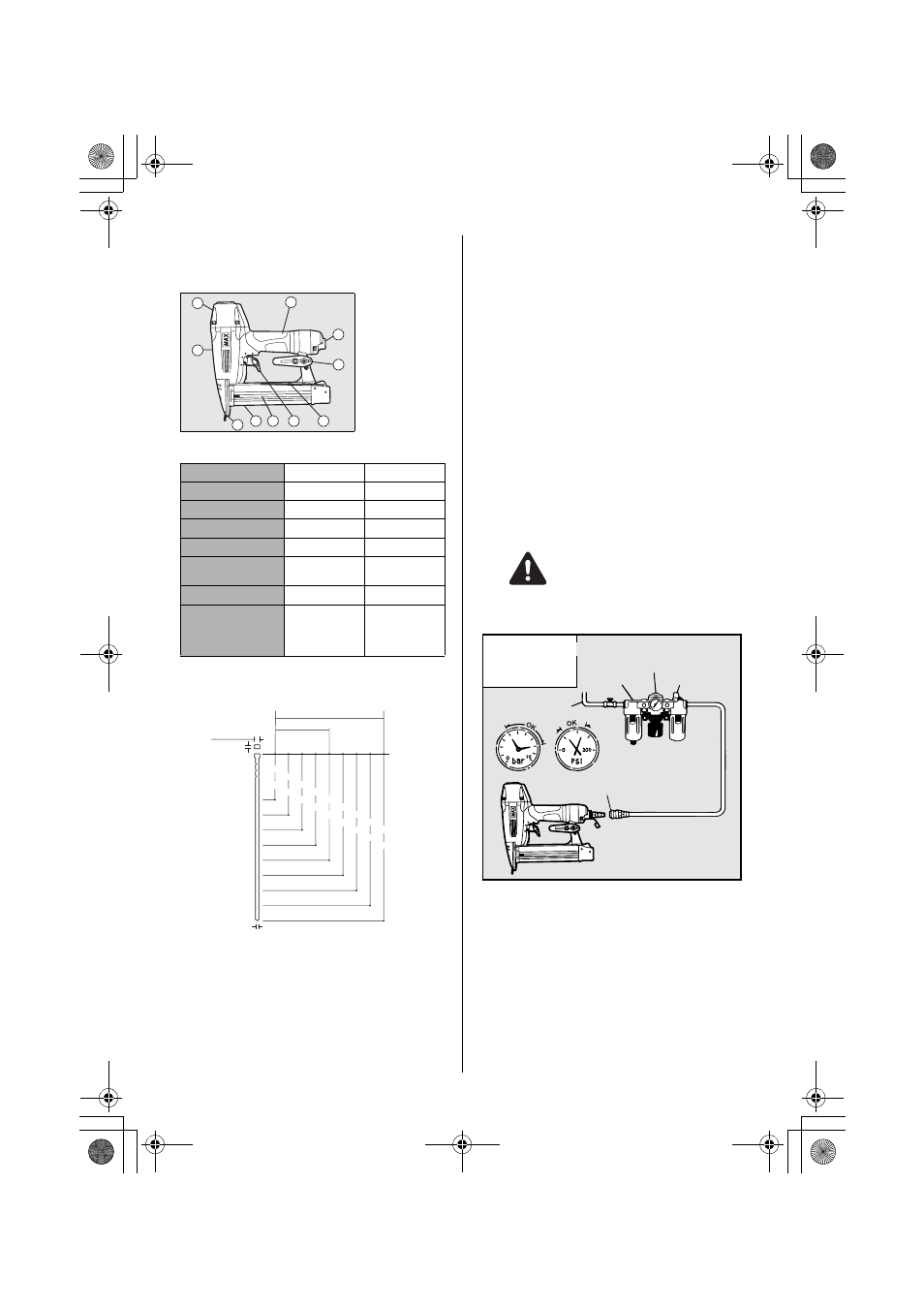

1. NAME OF PARTS
2. TOOL SPECIFICATIONS
∗ The machine has been compactly designed in order to im-
prove operating weight balance.
3. BRAD NAIL SPECIFICATIONS
• The design of this tool is based on millimetric brad nails.
TOOL AIR FITTINGS:
This tool uses a 1/4"_ P.T. male plug. The inside diameter should
be .28" (7mm) or larger. The fitting must be capable of discharg-
ing tool air pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRESSURE:
70 to 100 p.s.i. (5 to 7 bar). Select the operating air pressure with-
in this range for best fastener performance.
DO NOT EXCEED 120 p.s.i. (8.3 bar).
4.
TECHNICAL DATA
NOISE
A-weighted single-event sound power level
NF235F/18------ LWA, 1s, d 87.9 dB
NF255F/18------ LWA, 1s, d 85.9 dB
A-weighted single-event emission sound pressure level at
work station
NF235F/18------ LpA, 1s, d 81.8 dB
NF255F/18------ LpA, 1s, d 79.8 dB
These values are determined and documented in accord-
ance to EN12549 : 1999.
5. APPLICATIONS
∗ Door and window casings
∗ Plywood, decorative boards, and other interior finish works
∗ Panel assembly and moldings
∗ Sub flooring
∗ Furniture assembly including drawer assembly, case back
nailing, blind pinning, and other finishing works
∗ Cabinet assembly
3. AIR SUPPLY AND CONNECTIONS
FITTINGS: Install a male plug on the tool which is free flowing
and which will release air pressure from the tool when discon-
nected from the supply source.
HOSES: Hose has a min. ID of 1/4" (6 mm) and max. length of
no more than 17" (5 meters).
The supply hose should contain a fitting that will provide "quick
disconnecting" from the male plug on the tool.
SUPPLY SOURCE: Use only clean regulated compressed air as
a power source for the tool.
3-PIECE AIRSET (Air filter, Regulator, Oiler):
Refer to TOOL SPECIFICATIONS for setting the correct operat-
ing pressure for the tool.
1 Frame
2 Cylinder Cap
3 Exhaust Port
4 Magazine
5 Slider Unit
6 Trigger
7 Grip
8 Click Lever
9 Warning Label
(back side)
0 Outlet
PRODUCT NO. NF235F/18 NF255F/18
HEIGHT 8-3/4" (221mm) 10" (255mm)
WIDTH 2-1/2" (64mm) 2-1/2" (64mm)
LENGTH 9-1/2" (241mm) 9-5/8"(244mm)
WEIGHT 2.5lbs (1.1kg) 2.7lbs (1.2kg)
RECOMMENDED
OPERATING PRESSURE 70 to 100 p.s.i.
(5 to 7bar)
70 to 100 p.s.i.
(5 to 7bar)
LOADING CAPACITY 109Nails 111Nails
AIR CONSUMPTION 0.020ft 3 (0.56l) at
7 bar
operating pres-
sure
0.024ft 3 (0.68l) at
7 bar
operating pres-
sure
9 6 5 4
10
2
1
7
3
8
.051" 1.3 mm
.041" 1.05 mm
.075" 1.9 mm
Wire gauge: 18
5/8"
15 mm
7/8"
20 mm
1"
25 mm
1-3/16"
30 mm
1-3/8"
35 mm
1-5/8"
40 mm
1-3/4"
45 mm
2"
50 mm
2-3/16"
55 mm
NF255F/18
NF235F/18
Wire gauge: 18
WARNING
100
70 5
7
[AIR SUPPLY & CONNECTIONS]
Air filter
Air hose
Regulator
3-piece airset
Used at 70 to 100 p.s.i. (5 to 7 bar)
Air compressor
Oiler
