10

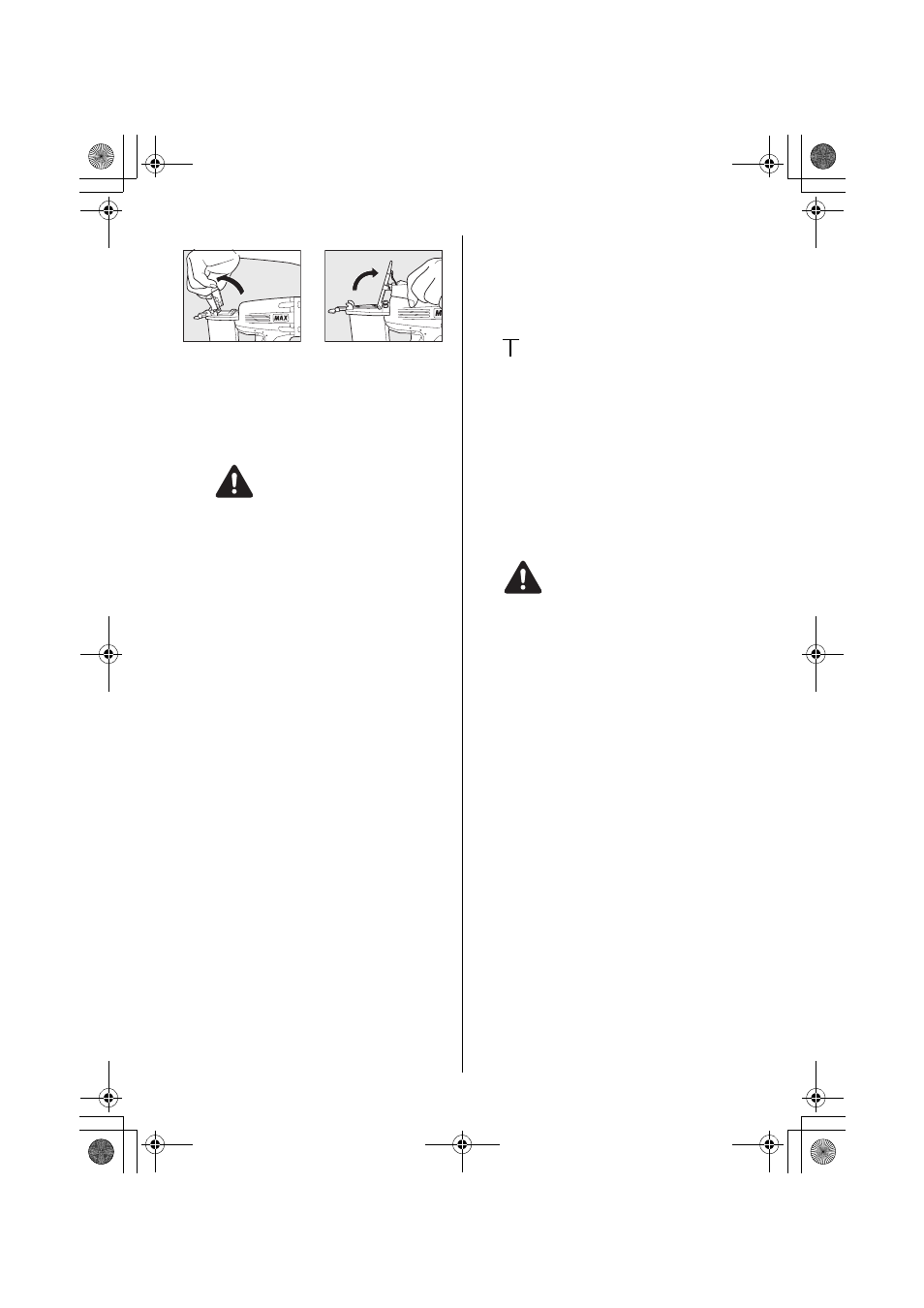

CLEARING JAMMED NAILS (NF255F/18)
1
Disconnect the air hose.
2
Remove the magazine release from behind nails.
3
Open the front cover then pull up to open the driver guide A.
4
Clear the nails-jammed inside the driver guide A. and the
ware plate using a thin iron bar or a flat-blade screwdriver.
5
Remove bar on screwdriver and close the driver guide A
and the front cover.
6
Reinsert the set of nails and bring back the slider unit.
ALWAYS-disconnect air supply before clearing jammed nails.
5. MAINTENANCE
1
ABOUT PRODUCTION YEAR
This product bears production number at the lower part of
the grip of the main body. The two digits of the number from
left indicates the production year.
2
DO NOT FIRE THE NAILER WHEN IT IS EMPTY
3
USE A 3-PIECE AIRSET
Failure to use a 3-piece airset allows the moisture and dirt
inside compressor to pass into the tool directly. This causes
rust and wear, and results in a poor operating performance.
The hose length between airset and tool should be no long-
er than 5 m since a longer length results in a reduction in air
pressure.
4
USE RECOMMENDED OIL
The velocite or turbine oil should be used to lubricate the
tool. Upon completion of operations, place 2 or 3 drops of
oil into the air plug inlet with the jet oiler. (Recommended Oil
: ISO VG32)
5
INSPECT AND MAINTAIN DAILY OR BEFORE OPERA-
TION
Disconnect air supply and empty the magazine when inspect-
ing or maintaining the tool.
(1)
Drain air line filter and compressor
(2)
Keep lubricator filled in air 3-pieces set
(3)
Clean filter element of air 3-pieces set
(4)
Tighten all screws
6. STORAGE
1
When not in use for an extended period, apply a thin coat of
the lubricant to the steel parts to avoid rust.
2
Do not store the tool in a cold weather environment. Keep
the tool in a warm area.
3
When not in use, the tool should be stored in a warm and
dry place. Keep out of reach of children.
4
All quality tools will eventually require servicing or replace-
ment of parts because of wear from the normal use.
7. TROUBLE SHOOTING/REPAIRS
The troubleshooting and/or repairs shall be carried out only by
the MAX CO., LTD. authorised distributors or by other specialists.
Driver guide
WARNING
(Example)
0 8 8 2 6 0 3 5 D
Year 2008
WARNING
