connected to ground when the switch is active, and has a
maximum current rating of 10 amps. NOTE: The RPM range
for this switch is 1000 to 12, 8000 and the off RPM (mode
6) must be at least 100 RPM higher than the on RPM
(mode 5).
Mode B – This is RPM Switch 1. It is selected when the
ORANGE wire coming out of the end panel is grounded.
The range is .1 to 15 degrees in .1 degree steps.
Mode C– This is RPM Switch 2. It is selected when the
GREEN wire coming out of the end panel is grounded. The
range is .1 to 15 degrees in .1 degree steps.
Mode D– Boost timing retard degrees per PSI of boost. If
you have an optional 2 BAR, #716 or 3 BAR, #717 MAP
sensor connected, the HYFIRE® 686M will retard the timing
as the boost pressure increases. Mode D tells the system
how many degrees to retard the timing for each pound of
boost. The range is .1 to 4 degrees per pound of boost
and adjusts in .1 degree increments The MAP sensor plugs
into the optional harness #29785 which connects to the 3
wire connector that comes out of the front panel. If you
don’t have a MAP sensor installed, this function has no
effect.
Mode E – Cylinder number select. Set this to however many
cylinders your engine has. The range is 4 to 12 cylinders,
even-fire ONLY!
Mode F – MAP sensor select. There are two MAP sensors
available that are compatible with the HYFIRE® 686M. One
is a 2 Bar sensor (P/N 716), which is good for about 15 PSI
of boost, and the other is a 3 Bar sensor (P/N 717), good
for about 30 PSI of boost. You will also need to purchase
MAP Sensor Harness 29785. Use mode F to tell the
HYFIRE® 686M which sensor you are using. If you don’t
have a MAP sensor installed, this function has no effect.
Mode 2 – This is the auxiliary RPM limiter, and it is activated
when the RED wire coming out of the end panel is
grounded. The range is the same as the Mode 1 RPM
limiter. This RPML will over-ride the Mode 1 RPML when it
is active.
Mode 3 – This is the auxiliary RPM limiter, and it is activated
when the BLACK wire coming out of the end panel is
grounded. The range is the same as the Mode 1 RPM lim-
iter. This RPML will over-ride the Mode 1 and 2 RPM lim-
iters when it is active.
Retard Stages Modes 4, 5, 6 and 7- Utilize in Sequence.
Mode 4 – This is the first selectable high-speed timing
retard. It is selected when the ORANGE wire coming out of
the end panel is grounded. The range is .1 to 15 degrees in
.1 degree steps.
Mode 5 – This is the second selectable high-speed timing
retard. It is selected when the YELLOW wire coming out of
the end panel is grounded. The range is .1 to 15 degrees in
.1 degree steps.
Mode 6 – This is the third selectable high-speed timing
retard. It is selected when the PURPLE wire coming out of
the end panel is grounded. The range is .1 to 15 degrees in
.1 degree steps.
Mode 7 – This is the fourth selectable high-speed timing
retard. It is selected when the WHITE wire coming out of
the end panel is grounded. The range is .1 to 15 degrees in
.1 degree steps.
Mode 8 – Start retard value. This amount of retard is applied
whenever the engine RPM is below 500. The range is .1 to
10 degrees in .1 degree steps.
Modes 9 and A – RPM Window Switch. These two control
the built-in RPM activated “window” switch. Mode 9 sets
the RPM where the switch activates, and mode A sets the
RPM where the switch de-activates. This is useful if, for
example, you want to have your nitrous system only work
within a certain RPM range. The output wire for the RPM
switch is the VIOLET wire coming out of the end panel. It is

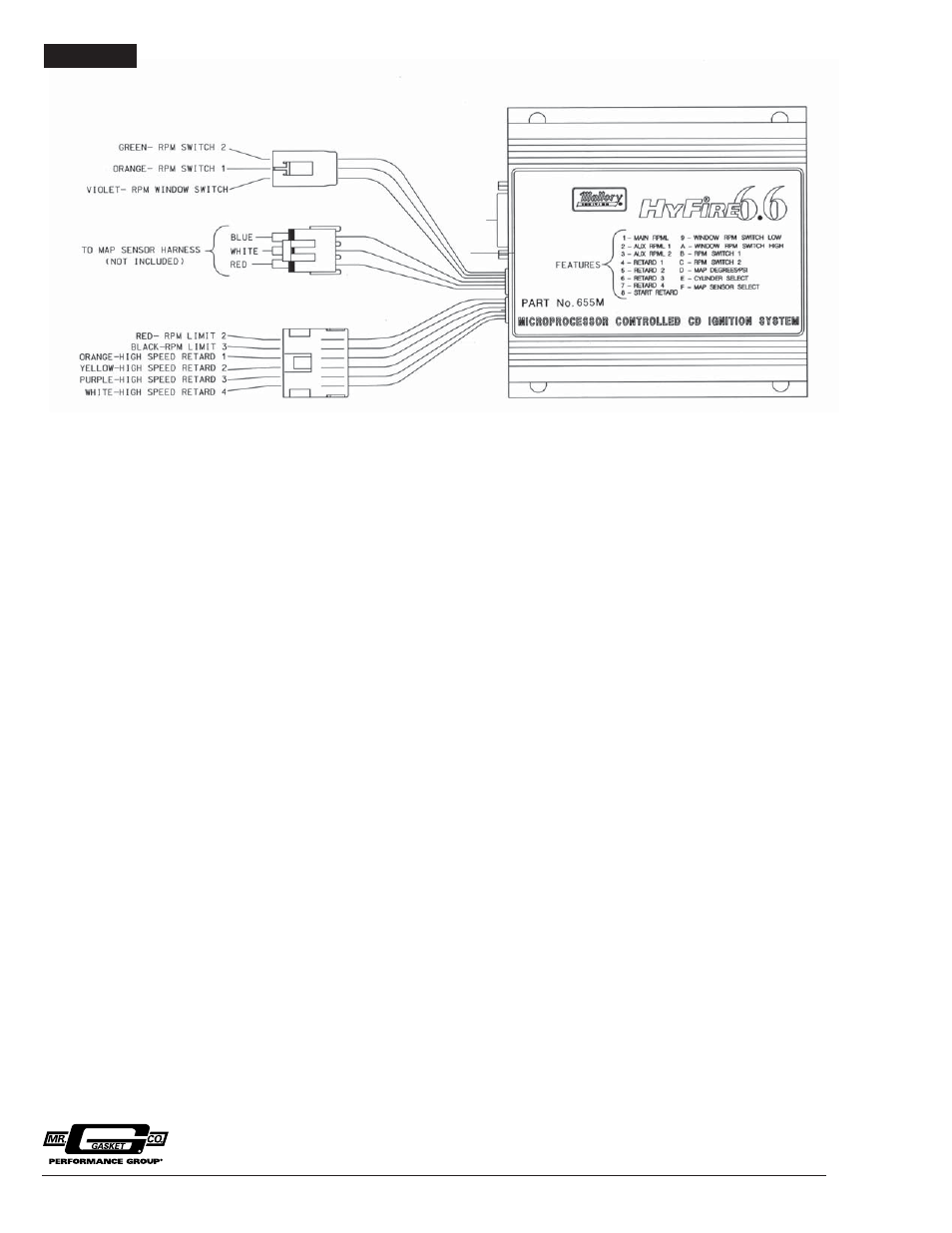

FIGURE 18
