6. Use the mount brackets as a template, mark and drill
the four mounting holes.
7. Install the fuel pump making sure the fuel pump is facing
the correct direction. The outlet side is the same side
as the fuel pump’s electrical connections.
8. Install the inlet and outlet fittings. Connect the fuel
tank pickup line to the pre-filter and the fuel pre-filter
to the fuel pump inlet. The pre-filter can be directly
mounted to the fuel pump inlet or via a short section of
fuel line if necessary. Make sure that if you must use
angled fittings, that they are of a sweep design to
minimize any flow restrictions. Most fuel system problems
are due to flow restrictions on the inlet side of the fuel
pump. If at all possible do NOT use forged hard
angled fittings.
9. Make sure you are using a correctly rated high pressure
fuel line from the fuel pump forward. Make sure that
you are using a high flow 10 micro fuel filter between
the fuel pump and the fuel pressure regulator. We
recommend the Mallory part no. 3160 fuel filter or
equivalent. Make sure you are using a return style fuel
pressure regulator.
10. Fuel pump wiring – We recommend that you use a 30
amp universal electric fuel pump relay and harness
installation kit. Please fellow the wiring kit’s installation
instructions. If you are not using a relay harnesses kit,
connect a 12ga BLACK wire to the negative (-) terminal
on the fuel pump and to a quality ground location
such as an engine ground or the negative battery
terminal to chassis ground location. Connect a RED
12ga wire from a 12v key-on switched connection,
such as a 30 amp relay to the positive (+) terminal on
the fuel pump. Use a 30amp inline fuse. Double check
to make sure the power to the pump is only on when
the ignition key is on.
11. Check for leaks – Turn the ignition key to the “Run”
position without starting the engine. This will power
up the fuel pump. Check for any fuel leaks at all the
connections. Fix and repair any leaks immediately
before operating the vehicle.
If you have any questions or problems, please contact our
Technical Service department at 216.688.8300 8:00am- 5:00pm
Monday- Friday EST.

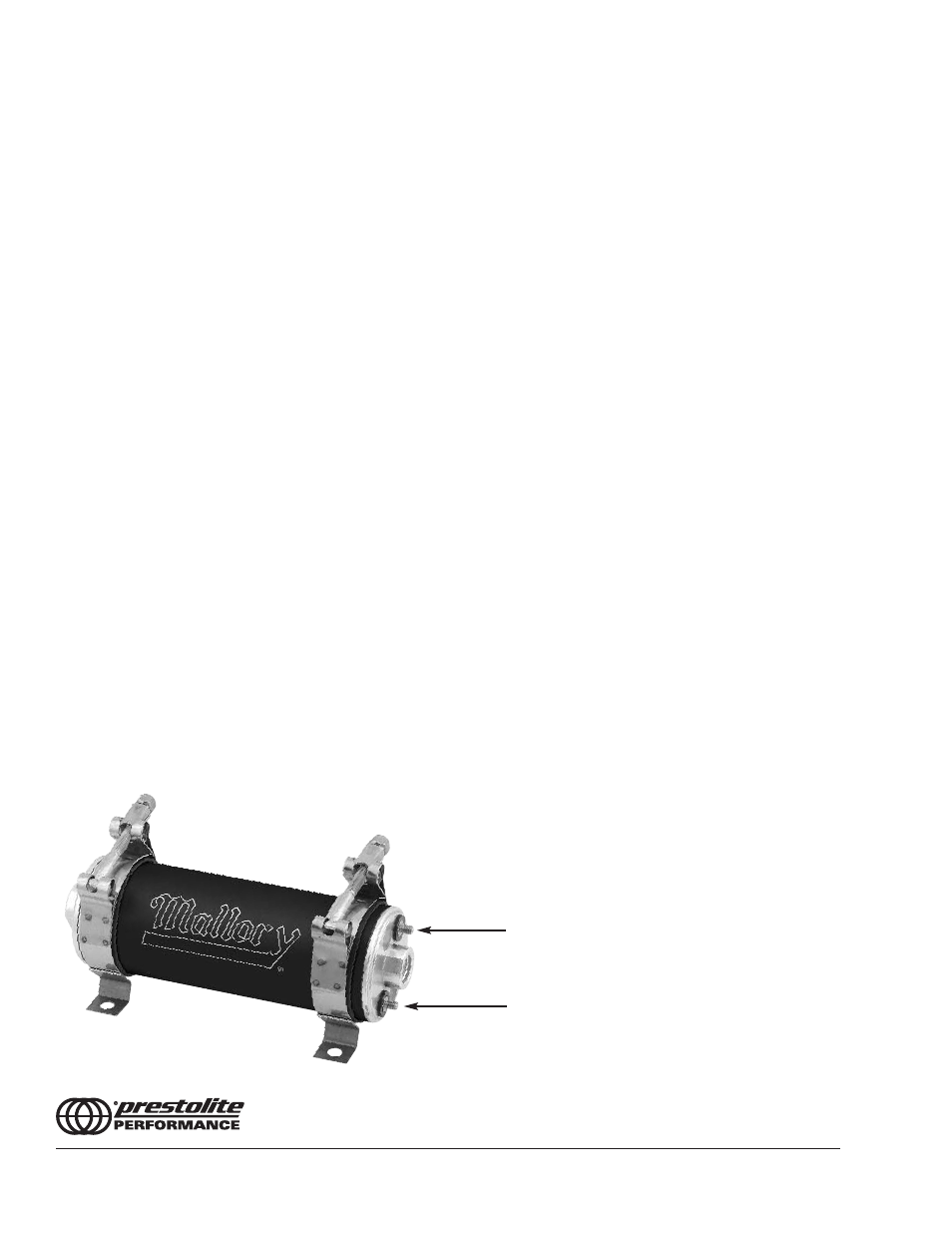

When installing the pump, do not over tighten the nuts
on the electrical posts. These need to be a snug fit
only
. Over tightening these connections can result in
damaging internal connections and create a no run
condition. This is considered damage at installation
and not warrantied.
