IGNITION MODULE PN A605 FOR HARLEY DAVIDSON
INSTALLATION INSTRUCTIONS
FORM 1271 (REVISION A) 08/06

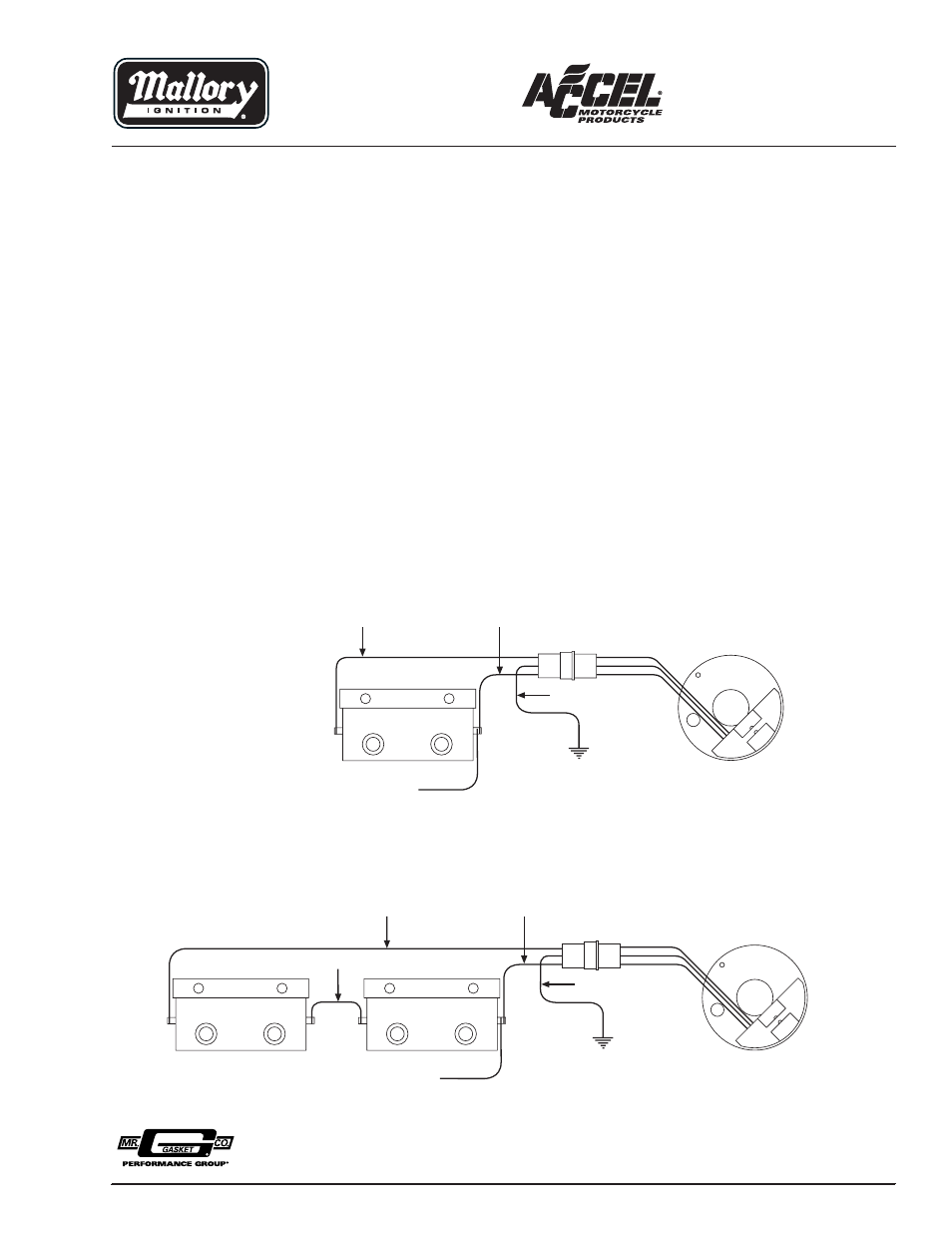

SINGLE PLUG HEADS
GREEN
RED
2 TO 4 OHM
BROWN
GROUND
12 VOLTS FROM IGNITION SWITCH
DUAL PLUG HEADS
GREEN
JUMPER
12 VOLTS FROM IGNITION SWITCH
RED
BROWN
GROUND
1 TO 2 OHM
1 TO 2 OHM
INSTALLATION AND ELECTRICAL WIRING PROCEDURE
Step 1: Apply a thin coat of silicone grease to the bottom of the module before mounting the module to its plate in the
distributor.
Step 2: Slide the three wires from the MODULE, through the grommet, to outside the distributor housing. Put the three
wires from the MODULE in the TERMINAL PIN HOUSING: GREEN WIRE in hole #1, BROWN WIRE in hole #2, RED
WIRE in hole #3. Plug the three wire harness (PN 29349, not supplied with this kit) into the TERMINAL PIN HOUSING.
RED WIRE:
Power/voltage for the MODULE. Connect to coil (+) terminal.
GREEN WIRE: Ignition trigger. Connect to coil (–) terminal.
BROWN WIRE: Ground for the MODULE. Connect to ENGINE BLOCK GROUND. Clean away any grease, oil, and paint from the mounting
surface before the connection is made.
