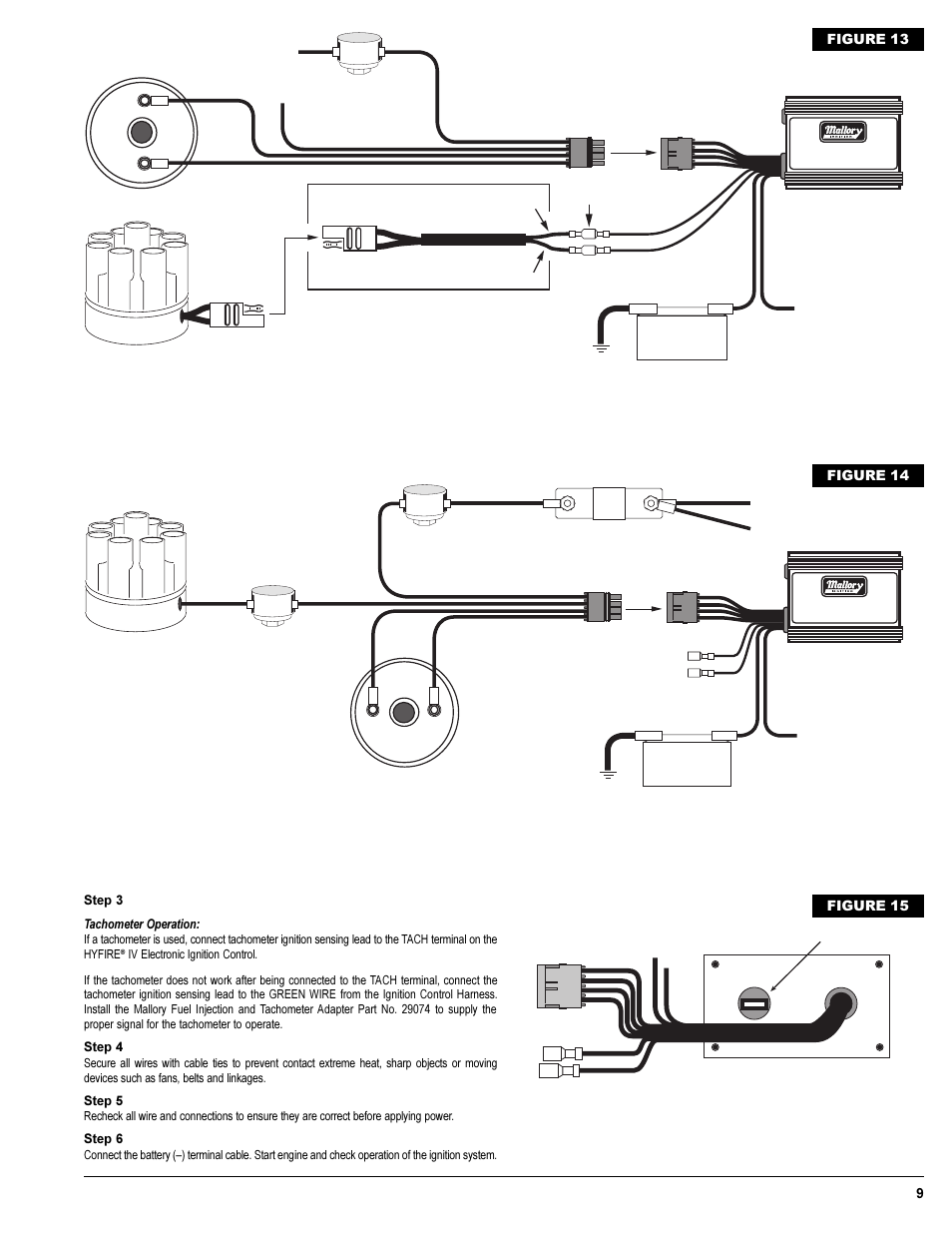

Breaker point distributor, Figure 13, Figure 14 – Mallory Ignition Mallory HYFIRE IV SERIES Ignition System 692_697 User Manual
Page 9: Tach/rpm output, Figure 15
