Ford: Install the diode inline to the wire
going to the #1 terminal.
GM: Install the diode inline to the wire
going to the #4 terminal.
GM 1973-83 with Delcotron Alternators
GM Delcotron alternators use an internal
voltage regulator. Install the diode inline on
the smallest wire exiting the alternator (see
Figure 5). It is usually a brown wire.
Most other applications: To eliminate run-on,
place a resistor in-line to the SPORT 6 small
red wire to keep voltage from leaking into
the SPORT 6 Ignition.
Ballast Resistor
If you have a current trigger tach (originally
connected to coil (+) positive) and use the
green wire of the SPORT 6 for triggering,
you can purchase a Chrysler Dual Ballast
Resistor (1973-76 applications).
Engine Run-On
If your engine continues to run even when
the ignition is turned off, you are experiencing
engine run-on. Usually, older vehicles with
an external voltage regulator are susceptible
to this condition. Because the SPORT 6
Ignition Control receives power directly from
the battery, it does not require much current
to keep the unit energized. If you are
experiencing run-on, it is due to a small
amount of voltage going through the
charging lamp indicator and feeding the
small red wire (even if the key is turned off).
Early Ford and GM: To solve the run-on
problem, a diode is supplied with the
SPORT 6 Ignition Control. By installing this
diode in-line of the wire that goes to the
charging indicator, the voltage is blocked from
entering the SPORT 6 Ignition Control. Figure
4 shows the proper diode installation for
early Ford and GM vehicles.
NOTE: Diodes are used to allow voltage
to flow only one way. Make sure the diode
is installed facing the proper direction, as
shown in Figure 4.
SMALL RED
12 VOLT
IGNITION SWITCH
CHRYSLER DUAL
BALLAST RESISTOR
GREEN WIRE
FROM POINTS OR
AMPLIFIER

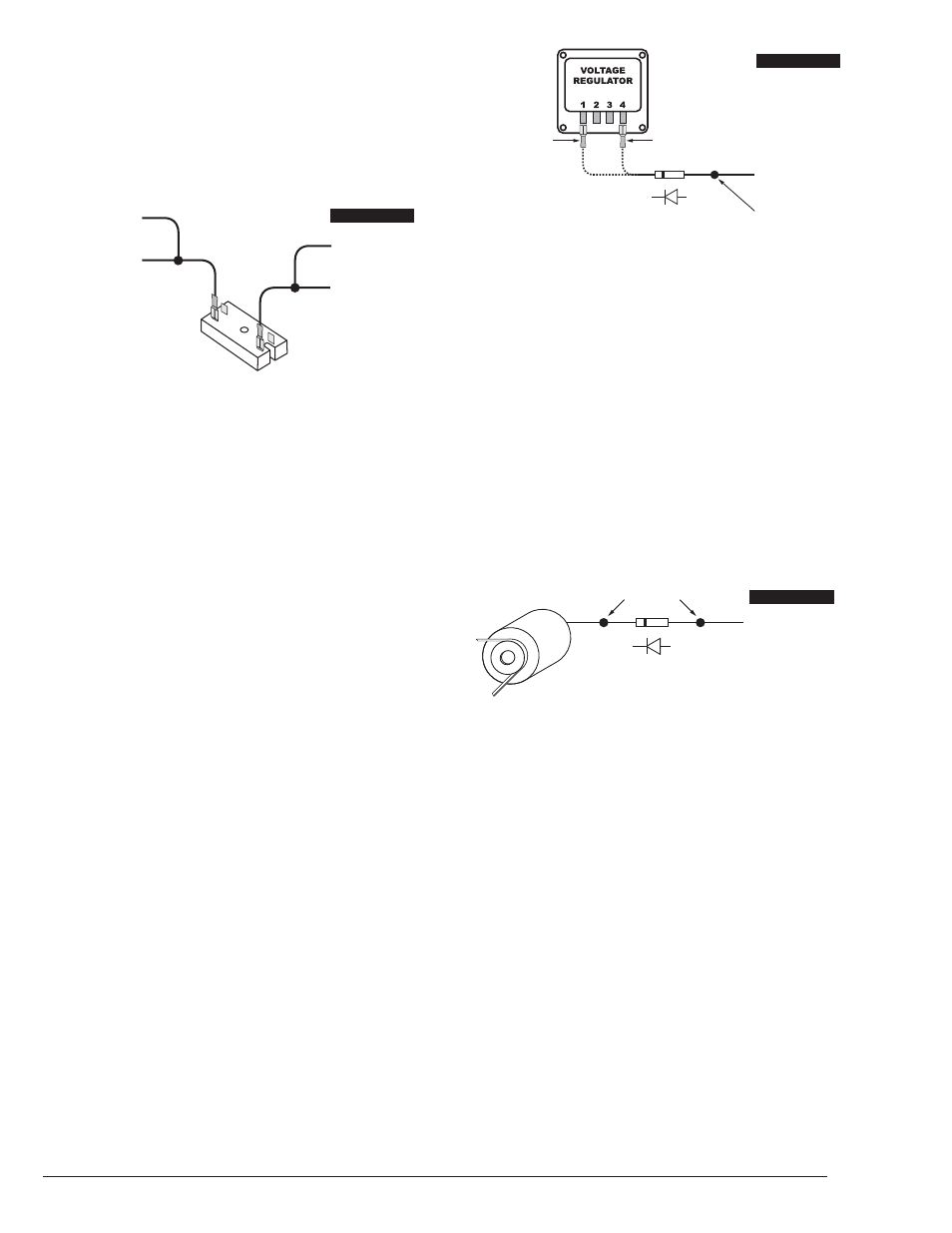

FIGURE 3
FOR EARLY GM VEHICLES
ATTACH DIODE TO
#4 TERMINAL FOR FORD VEHICLES
ATTACH DIODE TO
#1 TERMINAL
1A-100V DIODE
TO CHARGING LIGHT
SPLICE HERE
FIGURE 4
DELCOTRON
ALTERNATOR
1A-100V DIODE
TO CHARGING LIGHT
SPLICE HERE
FIGURE 5
