Mallory Ignition ACCEL 500+ ELECTRONIC IGNITION CONTROL 49500 User Manual
Page 8
8

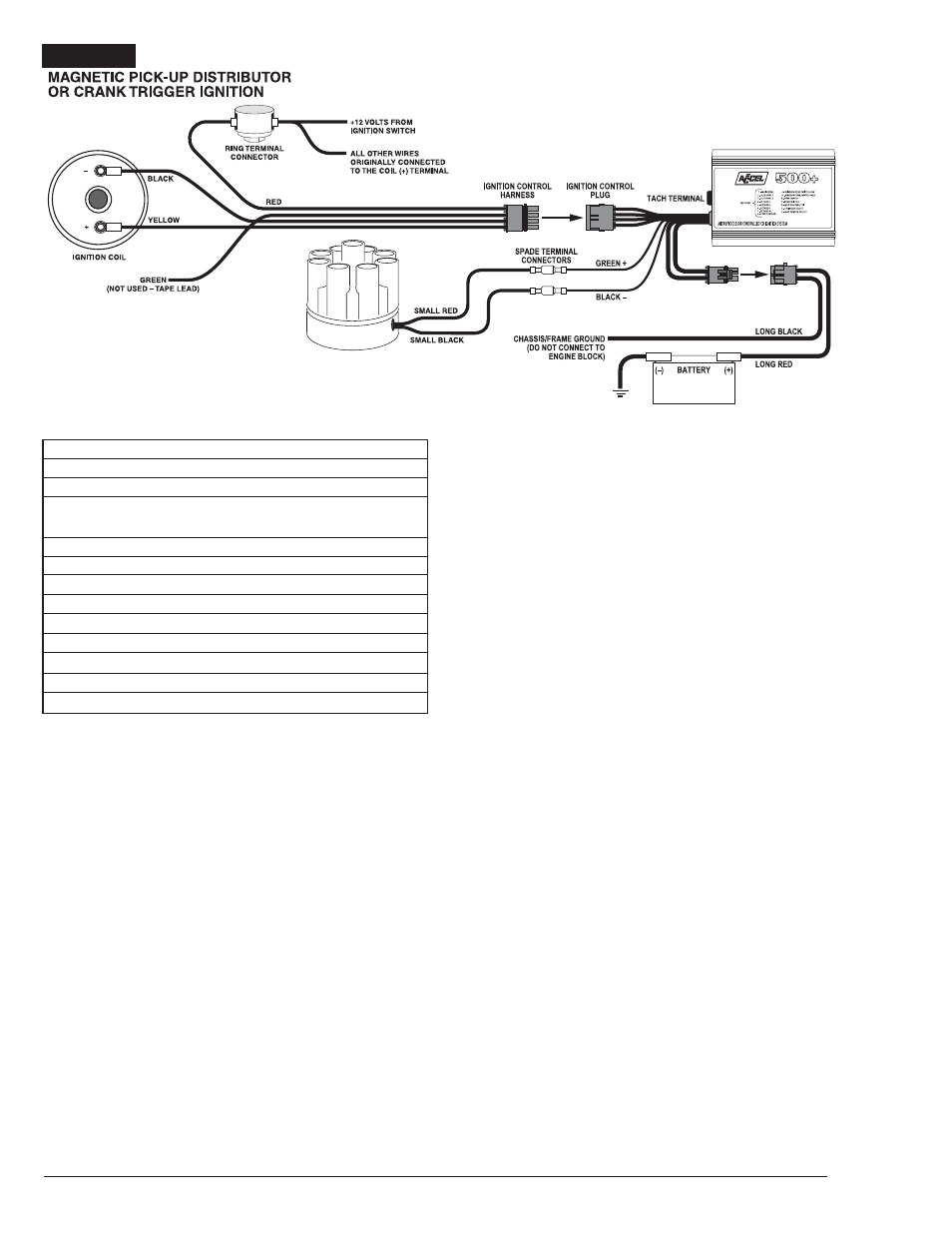

FIGURE 14
www.accel-ignition.com
ACCEL IGNITION
COMMON COLORS FOR MAG PICKUP WIRES
Distributor
Mag +
Mag –
Mallory Crank Trigger
Purple
Green
Mallory Billet Competition Distributor,
Series Nos. 81 and 84
Orange
Purple
Mallory COMP
®
9000 Series Nos. 96-99
Orange
Purple
Mallory Harness P/N 29040
Red
Black
MSD
Orange/Black
Violet/Black
MSD Crank Trigger
Orange/Black
Violet/Black
Ford
Orange
Purple
ACCEL 46/48000 Series
Orange/Black
Violet/Black
ACCEL 51/61000 Series
Red
Black
Chrysler
Orange/White
Black
ACCEL 71/52 Series
Orange
Violet
