Mallory Ignition ACCEL High Flow Fuel Valve 5105_5106 User Manual
Installation instructions
INSTALLATION INSTRUCTIONS
ACCEL HIGH-FLOW FUEL VALVE
#5105 / #5106
Drain fuel tank(s). Remove old valve. The ACCEL valve is installed on the fuel tank
in the same manner as the OEM valve. Thread nut to lowest position on valve
(LH thread). Be sure the non-stick washer is in the inside of the nut resting on top of
the valve. Place the valve on the fuel tank bung (RH thread), and thread the fuel tank
nut onto the tank bung until tight.
For 5106 only:
To prevent damage to O-rings, and possible leakage, DO NOT REMOVE hose barb
from stem. Determine the best position for the hose barb, then tighten Nyloc nut on
the bottom of the valve. Proceed to connect the fuel hose.
ACCEL is a trademark of Prestolite Performance
10601 Memphis Ave., #12
Cleveland, Ohio 44144
www.accel-motorcycle.com

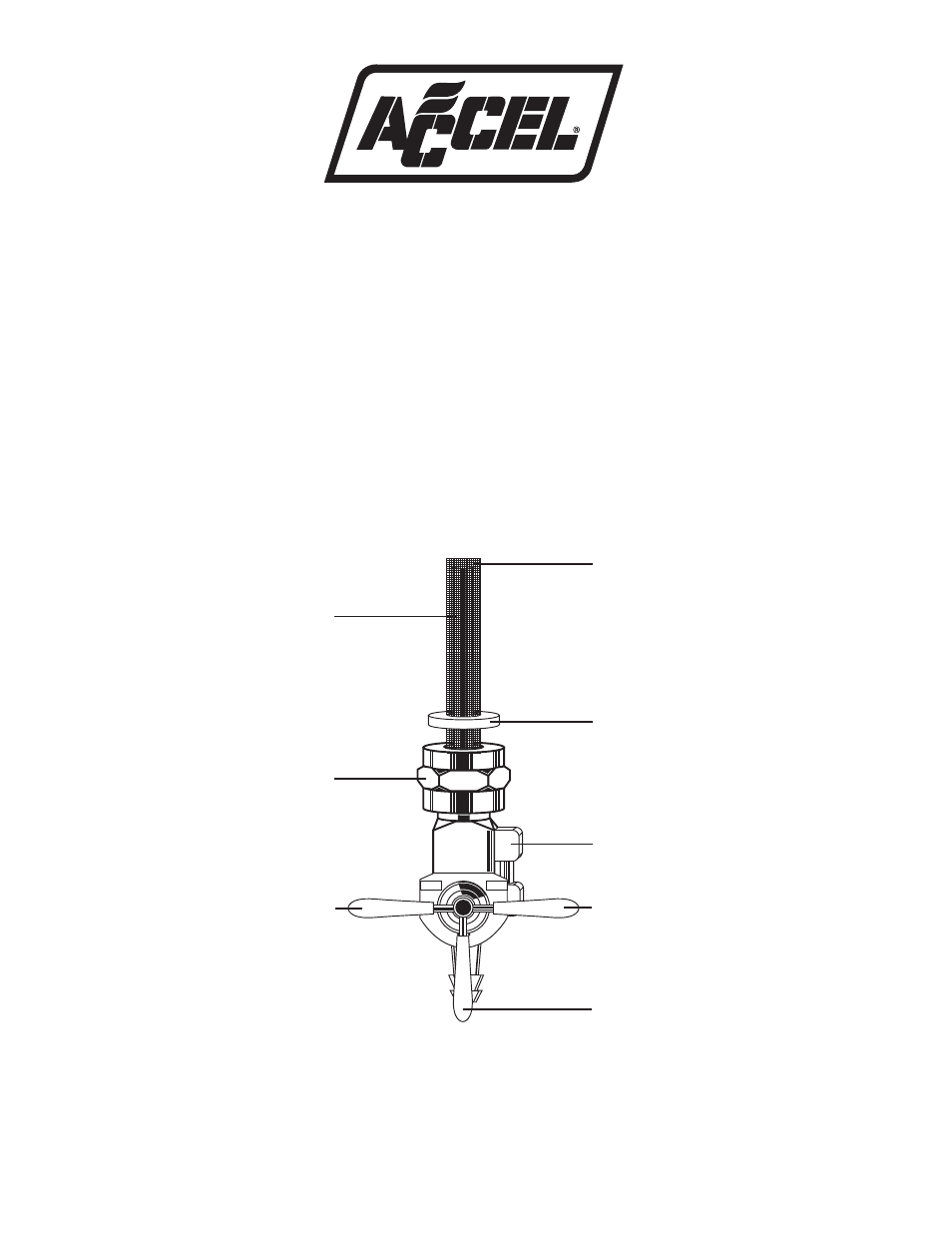

OFF
RES
MAIN
FU
EL
PRE-FILTERING
SCREEN
NON-STICK
WASHER
RESERVE
CIRCUT
HANDLE IN
RESERVE POSITION
RESERVE
TUBE
FUEL TANK NUT
(RH thread to tank)
(LH thread to valve)
HANDLE IN
OFF POSITION
HANDLE IN
MAIN POSITION
Form 3-746-00 01/12
