INSTALLING H.E.I. DISTRIBUTOR CAP BOOTS
Follow Steps 1-5 and 7-9 first.

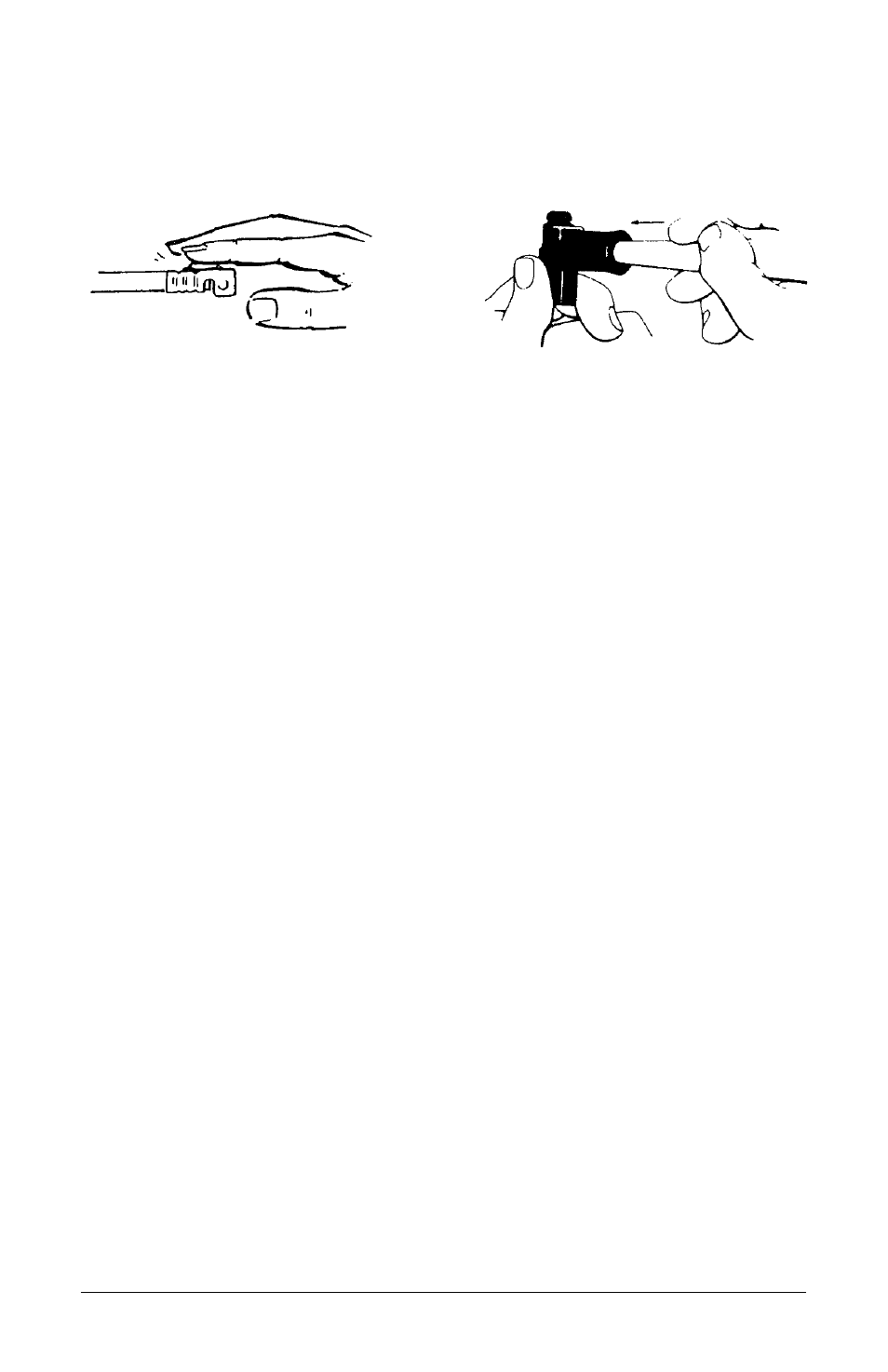

1. Lightly lubricate the terminal with silicone dielectric grease and slide the
wire into the H.E.I. boot.
2. Small amounts of grease may also be applied inside of boots on both spark plug
and distributor cap ends. This silicone dielectric grease will prevent corona and
arching conditions.
3. Be sure you have made a good connection in the distributor cap and coil. You
should recheck these connections periodically. If connector in distributor cap or coils
is gray-green, or appear corroded you may have a poor connection. Poor connections
at either the distributor or spark plug ends will cause an arching condition
.
