Luminex No Top Plate Swivel Base Installation and User Manual
6
4.
If necessary, use a 7/16” wrench to adjust one or more feet to make the top plate level.

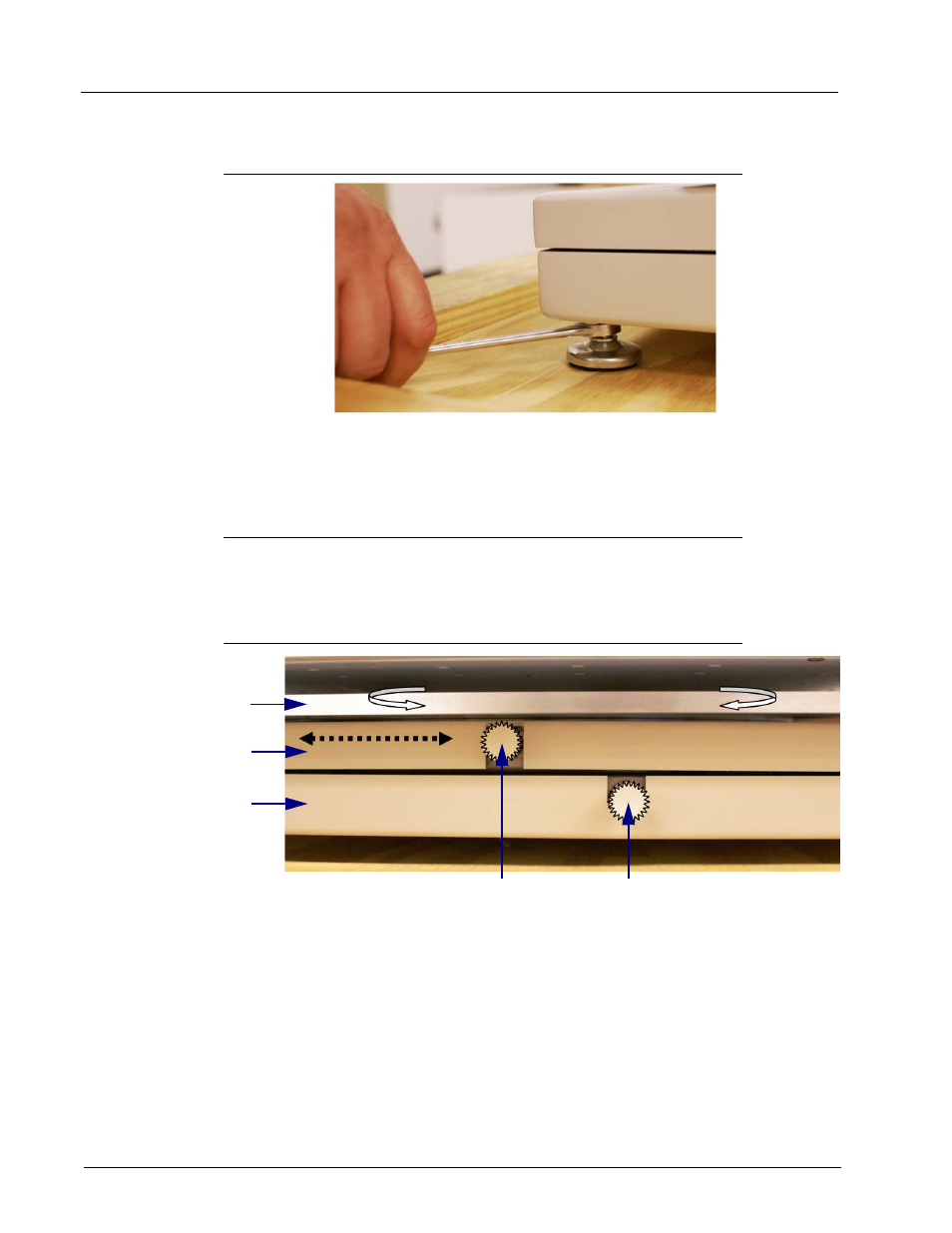

FIGURE 4. Adjusting a Foot with the Wrench
NOTE:
All four feet of the NTP Swivel Base are adjustable by
approximately 1”.
Operation
The Luminex NTP Swivel Base both swivels and moves left to right. A pair of knobs, one
on the front and one on the back, controls each kind of movement.
FIGURE 5. Swivel Base, Front View
1 Top Plate: differs in design depending
on manufacturer, swivels
4 Swivel knob: with corresponding knob
on back of instrument, controls
rotation movement of top plate
2 Middle Section: moves left and right
and carries the top plate along on its
movements
5 Slide knob: with corresponding knob
on back of instrument, controls back
and forth movement of middle section
and top plate
3 Bottom S ection: remains stationary
1
2
3
4 5
