Magnum Venus Plastech RT-1000 PUSH BUTTON TRIGGER User Manual
Page 31
RT-1000 Remote Trigger Manual
Rev. 12/2012
Page | 31
4
1
5
2
3

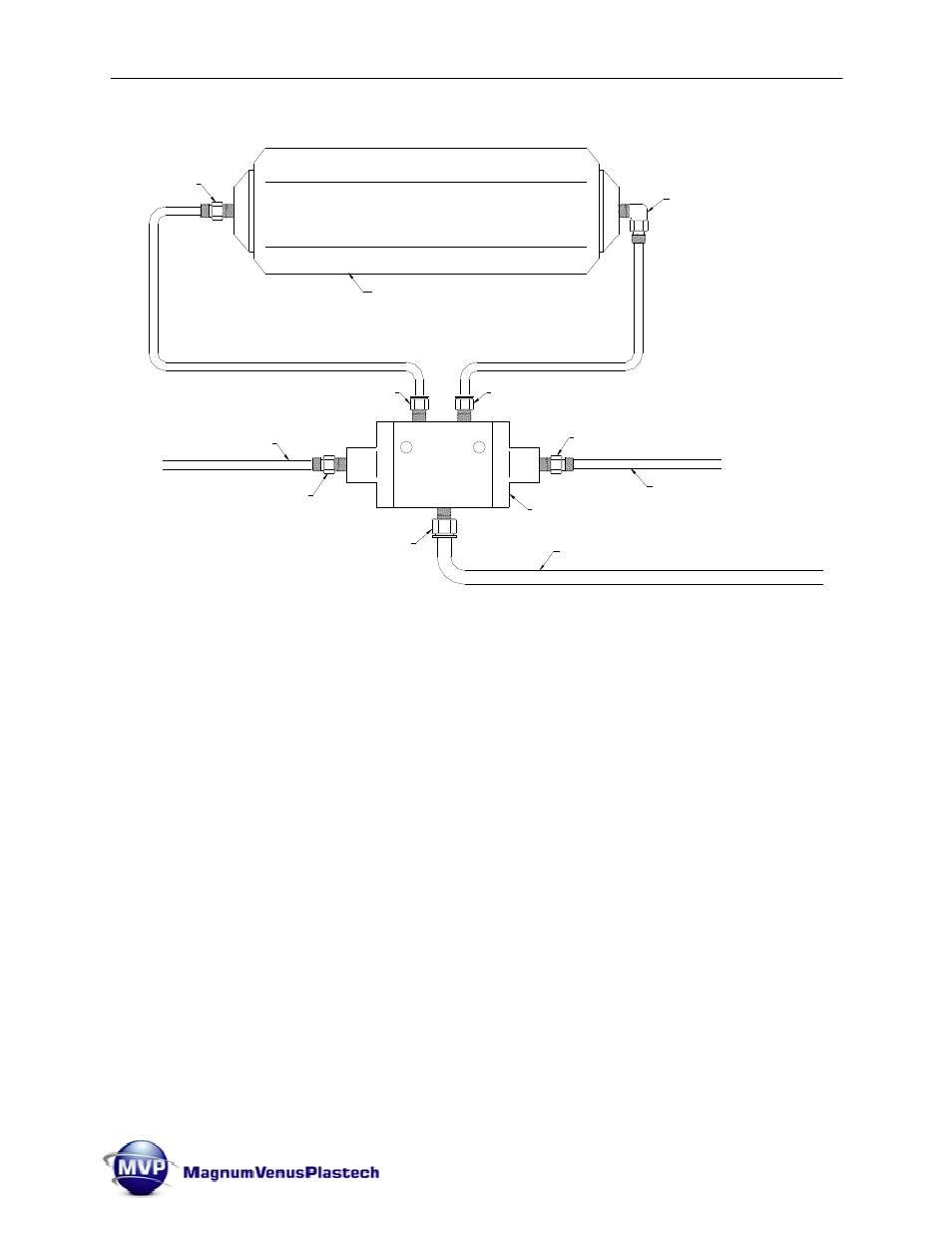

09047 4 Way Valve
5102-1-1 Poly Fitting
5102-1-1 Poly Fitting
00285 1/2" Poly Fitting
00382 3/8" Poly Fitting
00382 3/8" Poly Fitting
01001 3/8" Poly Elbow
00003-1 3/8 Poly Fitting
1/2" Poly Air Supply
Gun Signal Line from Control panel
Gun Signal Line from Control panel
HV Pro Gun Actuator
HV Gun controls using 4way dual piloted valve and 3/8 fittings.
