Powerslide Powerhead
4.
Insert the diaphrams (MPH-2529) into the upper and lower valve blocks with the
outside leading edge of the diaphrams facing out. Push the diaphrams all the
way down into the valve block bore. Install the valve exhausts (MPH-2522) onto
the upper and lower valve blocks. One side of the valve exhausts has three
holes, one of the holes must line up with the machined holes in the upper and
lower valve block. (See Figure 4) Install the two socket head cap screws (F-
CS-1024-06-SS) into each of the two valve exhausts and snug tight.
5.
Install valve end caps (MPH-2521) into the upper and lower valve blocks and
lightly snug tight.

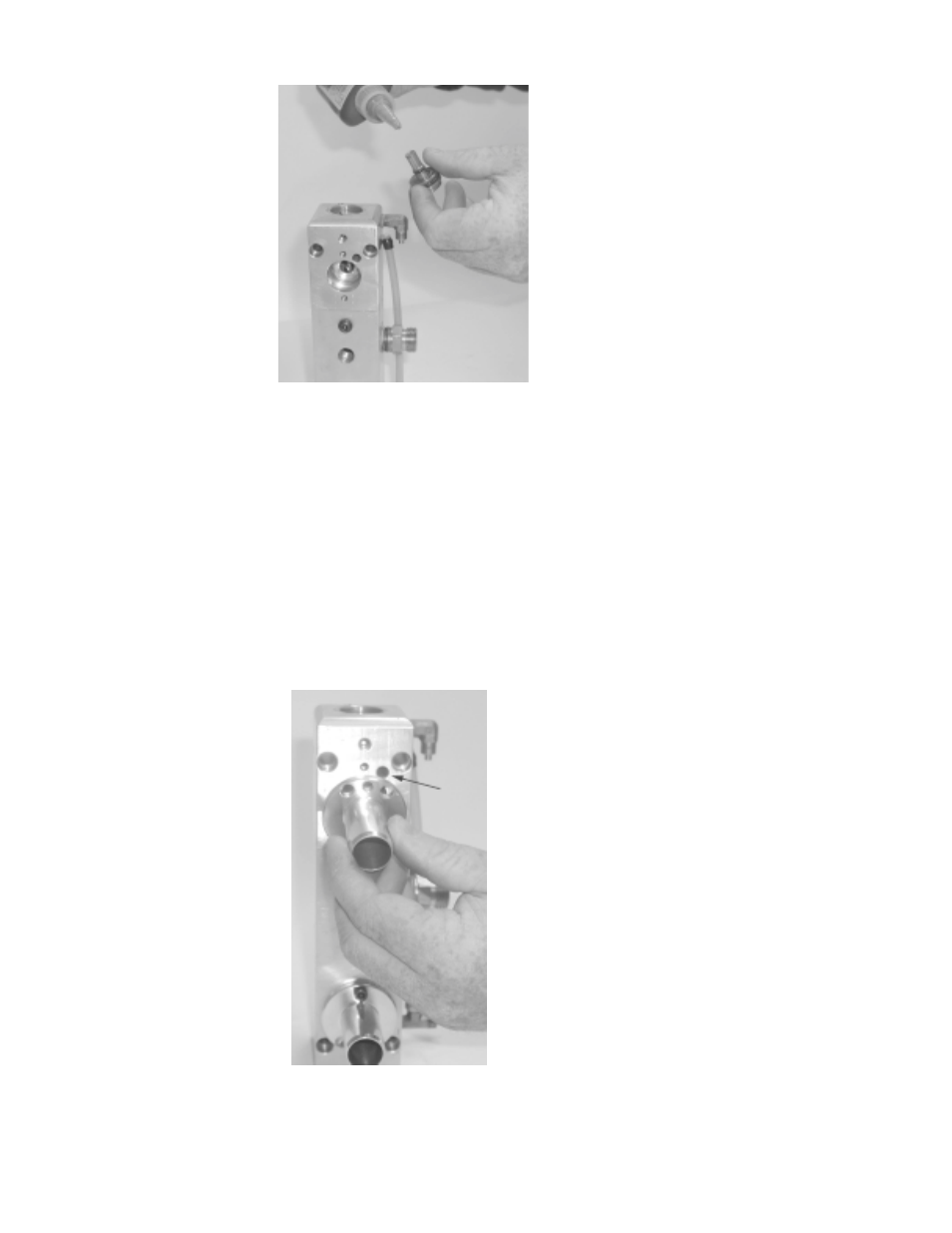

Figure 3
Use only one to two drops of Lock Tite
®
in valve piston threads.
Figure 4
Do not block the hole in the
valve block when installing the
valve exhaust.
Do not block
hole
