Magnum Venus Plastech Flex Molding Process IVx3 MODULE 8018 User Manual
Page 18
Vacuum Valve Service Module Manual
Rev. 10/2012
Page | 18

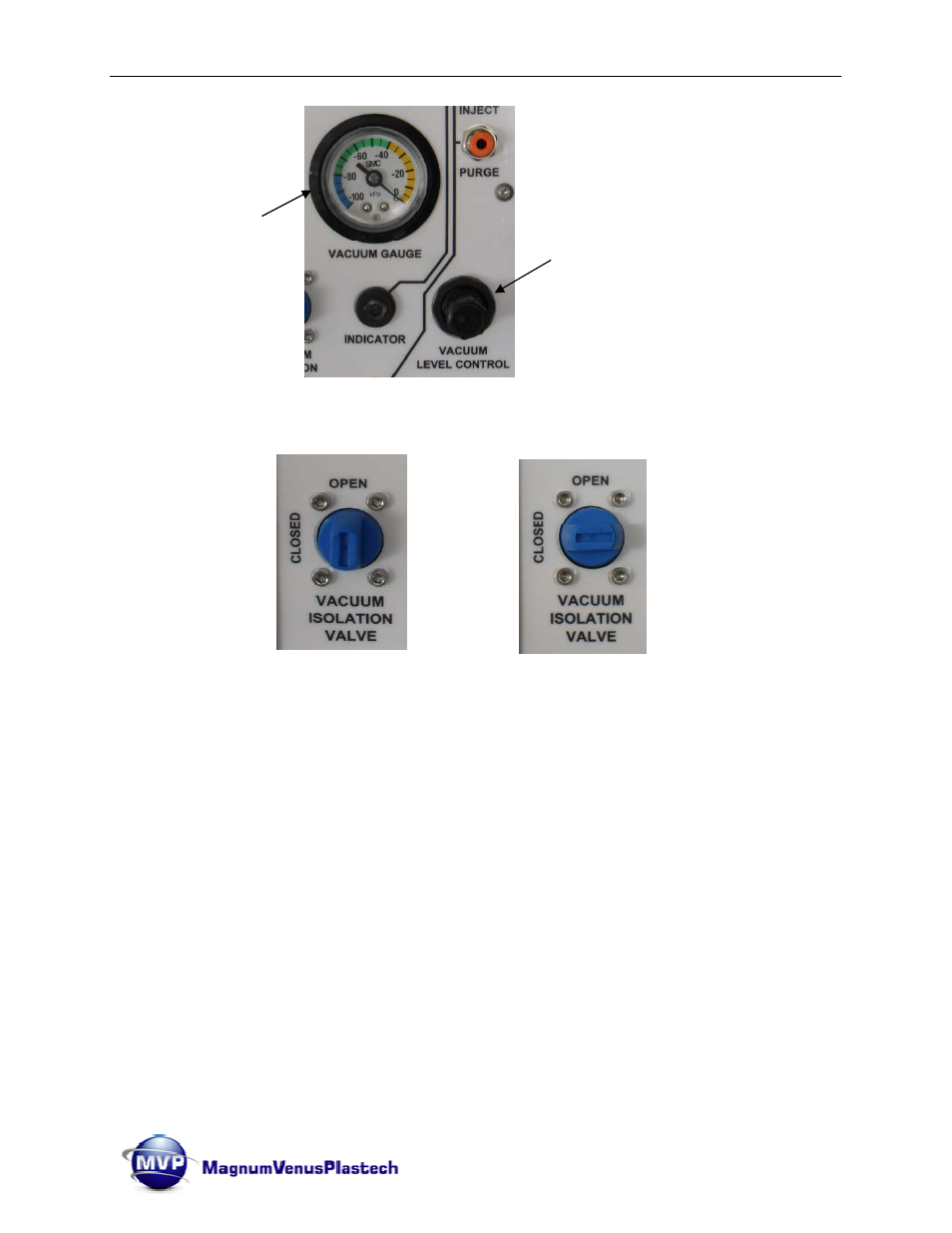

VACUUM LEVEL CONTROL – Used to adjust the vacuum pressure level. By adjusting
the vacuum regulator the vacuum level will be indicated on the vacuum gauge.
VACUUM ISOLATION VALVE – Locks or insolates the vacuum pressure on the valve
in the Universal Insert Adapter port – The Open position applies the set vacuum on the
valve in the universal adapter port. The Closed position locks the set valve on the valve
in the universal adapter port.
Vacuum Level Control – Regulator
used to adjust the vacuum pressure
Vacuum Gauge
Open Position
Closed Position
