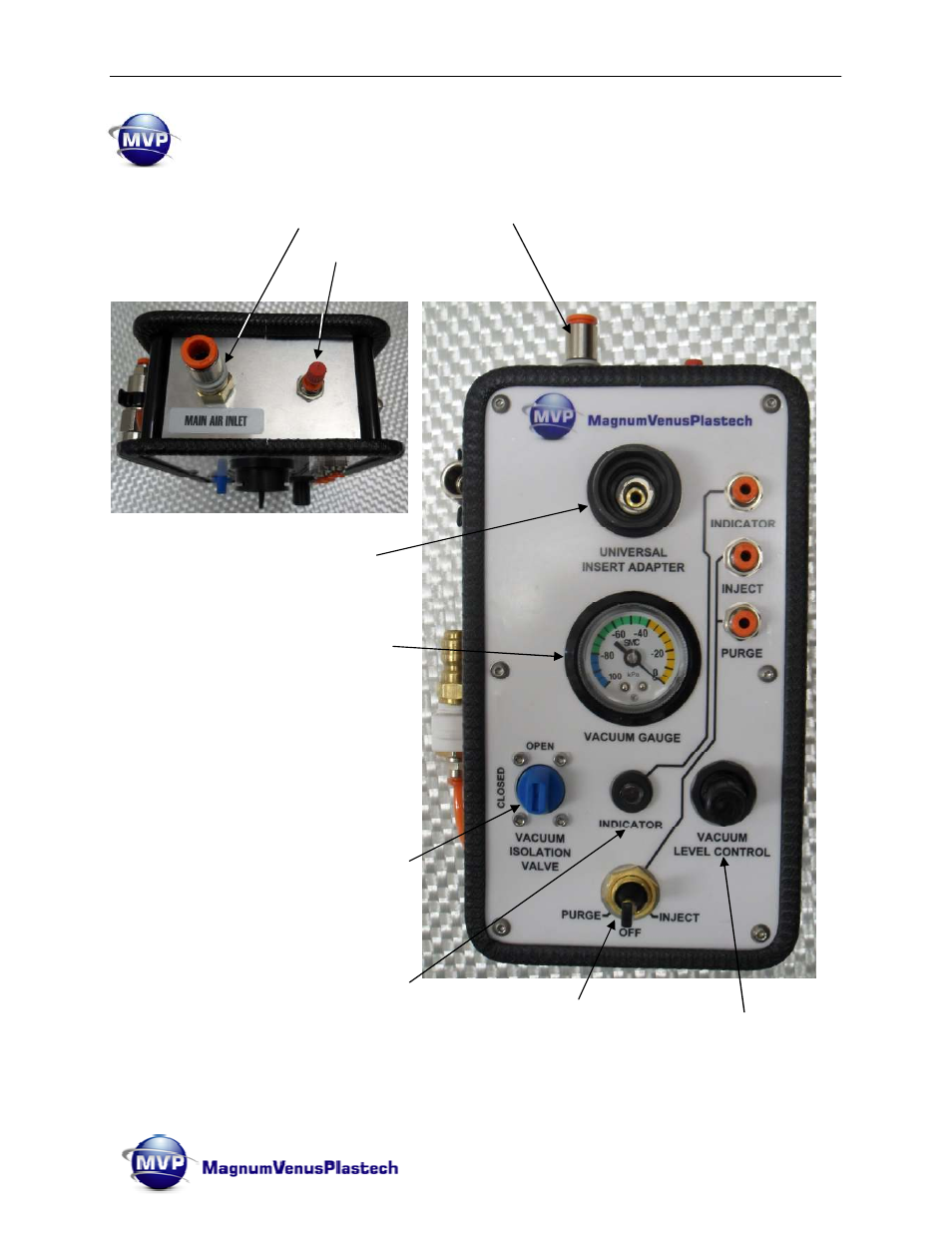

Overview:
8mm/10mm Main Air Inlet
Optional Air Outlet -
4mm connection
Universal Insert Adapter – Plug
the Valve being tested/adjusted
in this location
Vacuum Gauge – indicates
vacuum level as set by the
Vacuum Level Control
Vacuum Isolation Valve –
locks the vacuum on the
valve to test for leaks
Indicator – pneumatic indicator
connects to the control valve
output to indicate when the
valve activates
Signal Valve – sends an air signal
to the Injection valve to activate.
Can be used to activate the IVx3
in either Purge or Inject mode
Vacuum Level Control –
adjusts/sets the
vacuum pressure
