IVx3 Valve Control Box Manual
Rev. 10/2012
Page | 21

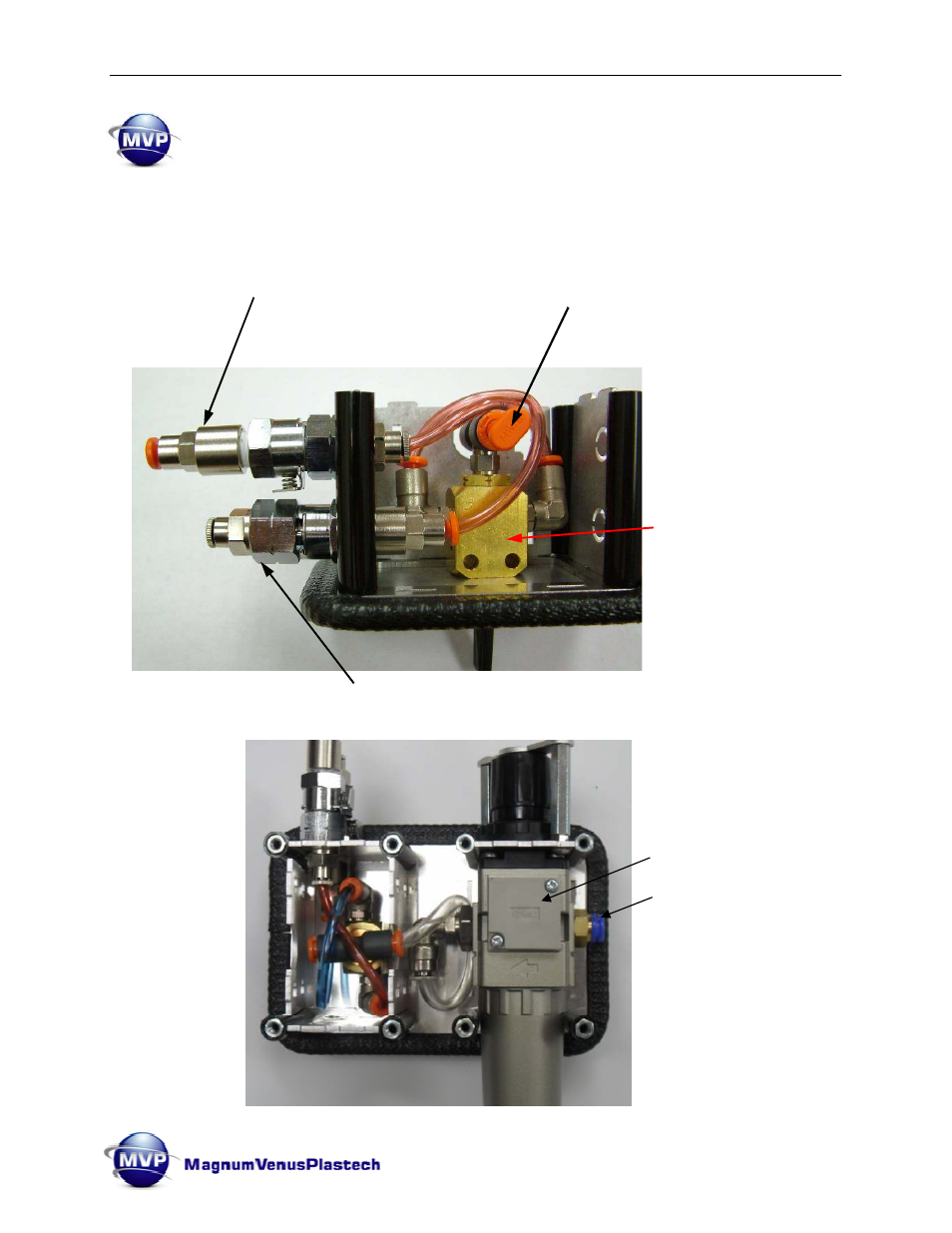

Purge Air Signal to the IVx3 Valve
– with Quick Disconnect Fitting
Inject Air Signal to the IVx3 Valve
– with Quick Disconnect Fitting
Air Supply Inlet – 6bar max –
extra port provided for connecting
modules together
Inside the Box:
The 3-Position - Control Valve is the same for all of the Control Box Modules and will be
plumbed the same for each. The Control Box Modules can be connected together
using the connecting bracket and plumbing through from Control Box to Control Box
using the port provided.
3 Position - Control Valve
8016 IVx3 One Way Control Box
Per Set Regulator w/ Gauge
Main Air Inlet Port
