IVx3 Valve Control Box Manual
Rev. 10/2012 Page | 19

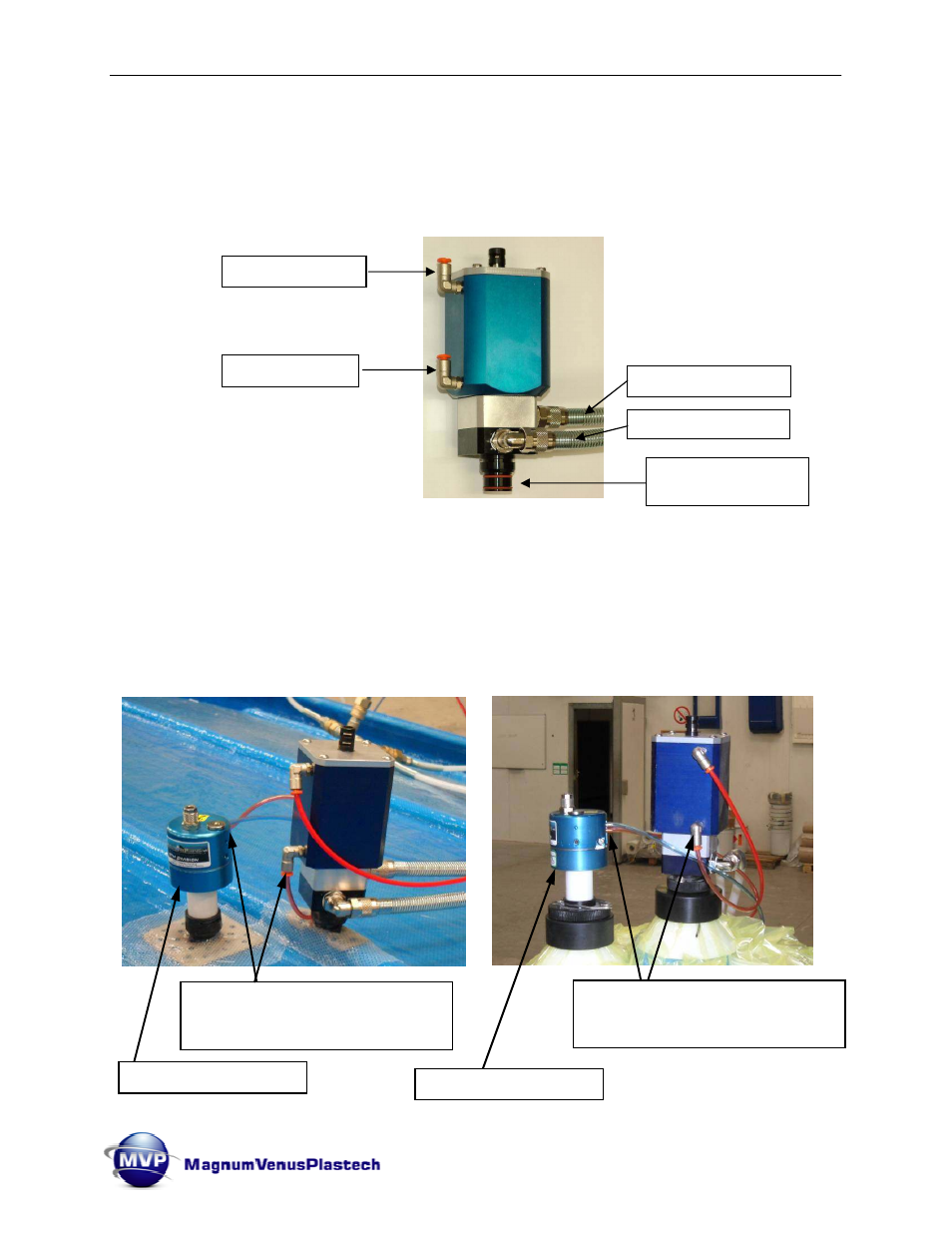

IVX3 Injection Valve – To put the IVX3 into Injection mode move the Control Box to
INJECT – this supplies a 6 bar (90psi) air signal to the Injection Signal port. Put the Control
Box to CLOSE to close the IVX3 Valve – no air signal to the ports. To put the IVX3 into
Purge mode, switch the Control Box to PURGE - this sends a constant 6 bar (90psi) air
signal to the Purge signal port.
IVX3 with PPVS-INFUSION Valve – connecting the IVX3 Injection valve to the PPVS-
INFUSION will allow for automatic Open / Close control of the IVX3 valve based on the
vacuum level. Connect the output signal of the PPVS to the Inject Signal port on the
IVX3 valve and the INJECT signal from the control box to the PPVS supply signal (blue
tube). Connect the Resin supply Inlet and Outlet as noted above. Connect the Purge
Signal port to the purge valve on the control box or flush signal. The PPVS-INFUSION
should be positioned 80mm from the IVX3 Injection valve.
Connect the outlet signal of the
PPVS-INFUSION to the Injection port
of the IVX3 valve
PPVS-INFUSION Valve
Connect the outlet signal of the
PPVS-INFUSION to the Injection port
of the IVX3 valve
PPVS-INFUSION Valve
Purge signal port
Inject signal port
Resin / Solvent Inlet
Resin / Solvent Outlet
Resin Injection Port –
Universal Insert
