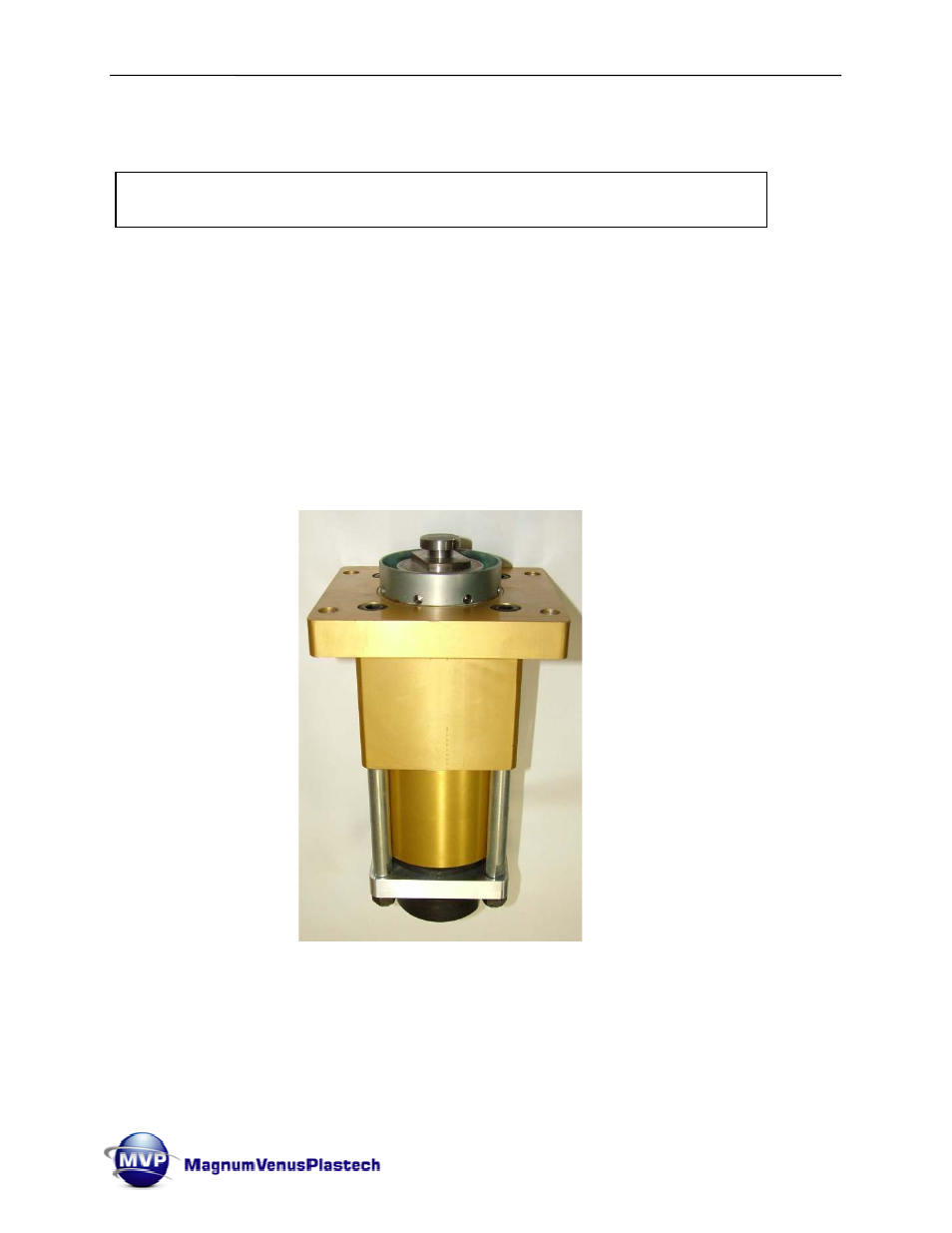

• Pump Assembly –



1.

Install the Inlet Body onto the Inlet Valve – making sure it is seated against the
O-ring.

2.

Slowly and firmly push the Piston and Fluid Rod assembly all the way down into
the Inlet Body.

3.

Carefully and firmly push the assembled Outlet Body onto the Inlet Body until the
Fluid Rod extends though the Packing Nut.

4.

Align the Foot Collar with the Tie Rods on the Outlet Body and install the four Hex
Nuts. Snug the Hex Nuts tight.



























NOTE: I will be helpful to mount the Inlet Valve vertically into a vise by
the flats on the Inlet Valve or Pipe Elbow attached to the bottom.
