Patriot Fluid Section Manual PAT-LS-49090
Rev. 10/2012 Page | 19
Fluid Section Assembly:
• Inlet Valve Assembly –
1. Properly clean Inlet Valve – checking the ball seat area.
2.
Install a new O-Ring on the Inlet Valve, lubricate O-Ring and seat with Red
Grease (6706-2-1).
3.
Lightly grease the Inlet Ball with Red Grease and place in the Inlet Valve.
4. Install the Foot Valve Spring onto the Inlet Ball, narrow side against the Ball.
5. Place the back of the Ball Stop on top of the Foot Valve Spring and into the grove
in the Inlet Valve, using a pair of Pliers squeeze the Ball Stop and push the front
into the grove. Set the Inlet Valve aside for now.
• Inlet Body Assembly –
6. Properly clean Inlet Body, lightly lubricate both ends with Red Grease (6706-2-1).
7. Install the Piston Seal Assembly into the top of the Inlet Body with o-ring or
spring side facing up.
8. Install the Piston Bushing into the Inlet Body on top of the Piston Seal Assembly.
Apply Red Grease to the inside of the Piston Bushing.
NOTE: Use care not to drop the Inlet ball as it will be damaged.

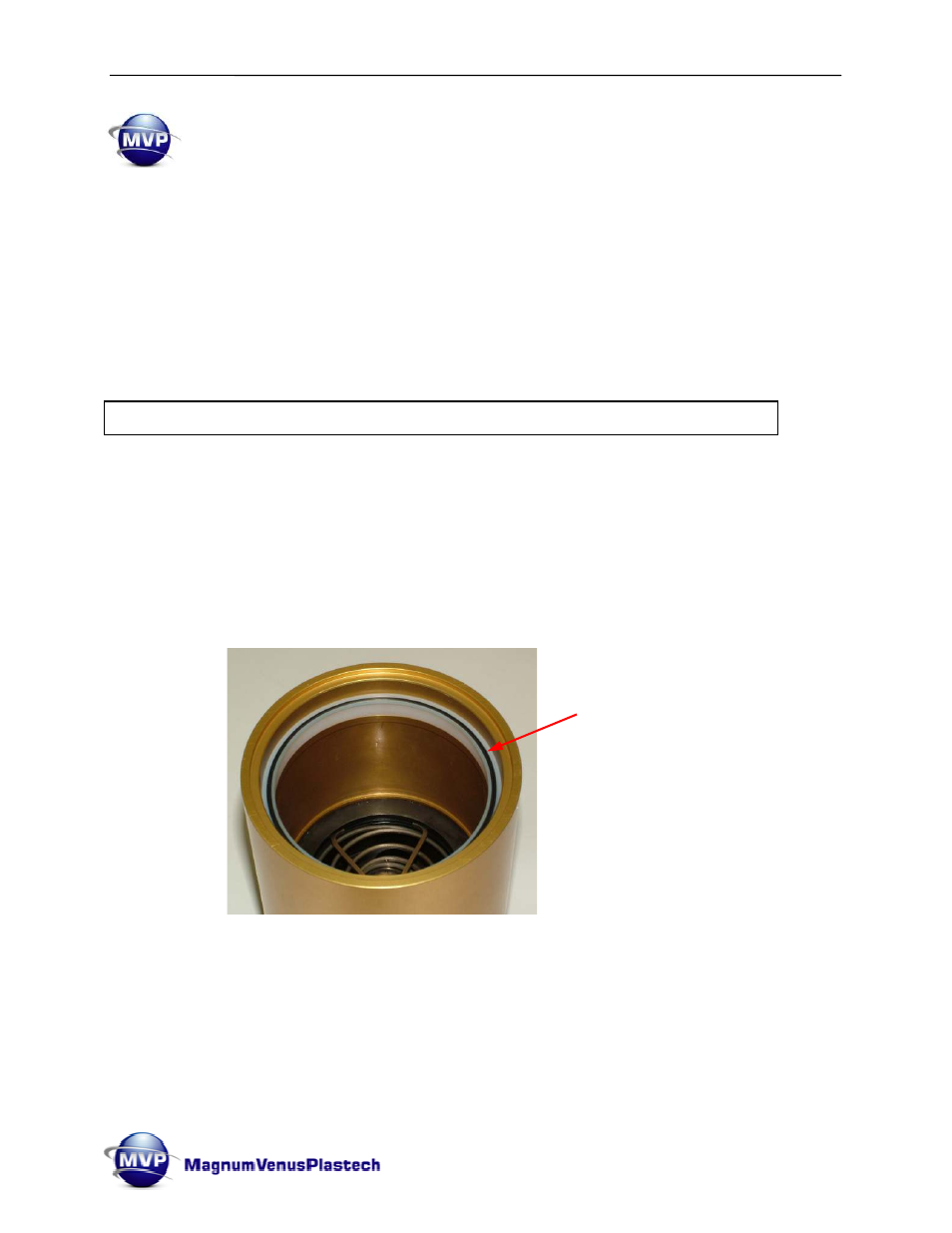

Piston Seal – install with the O-
ring facing up
