60
Chapter 3
Main Unit Disassembly Process

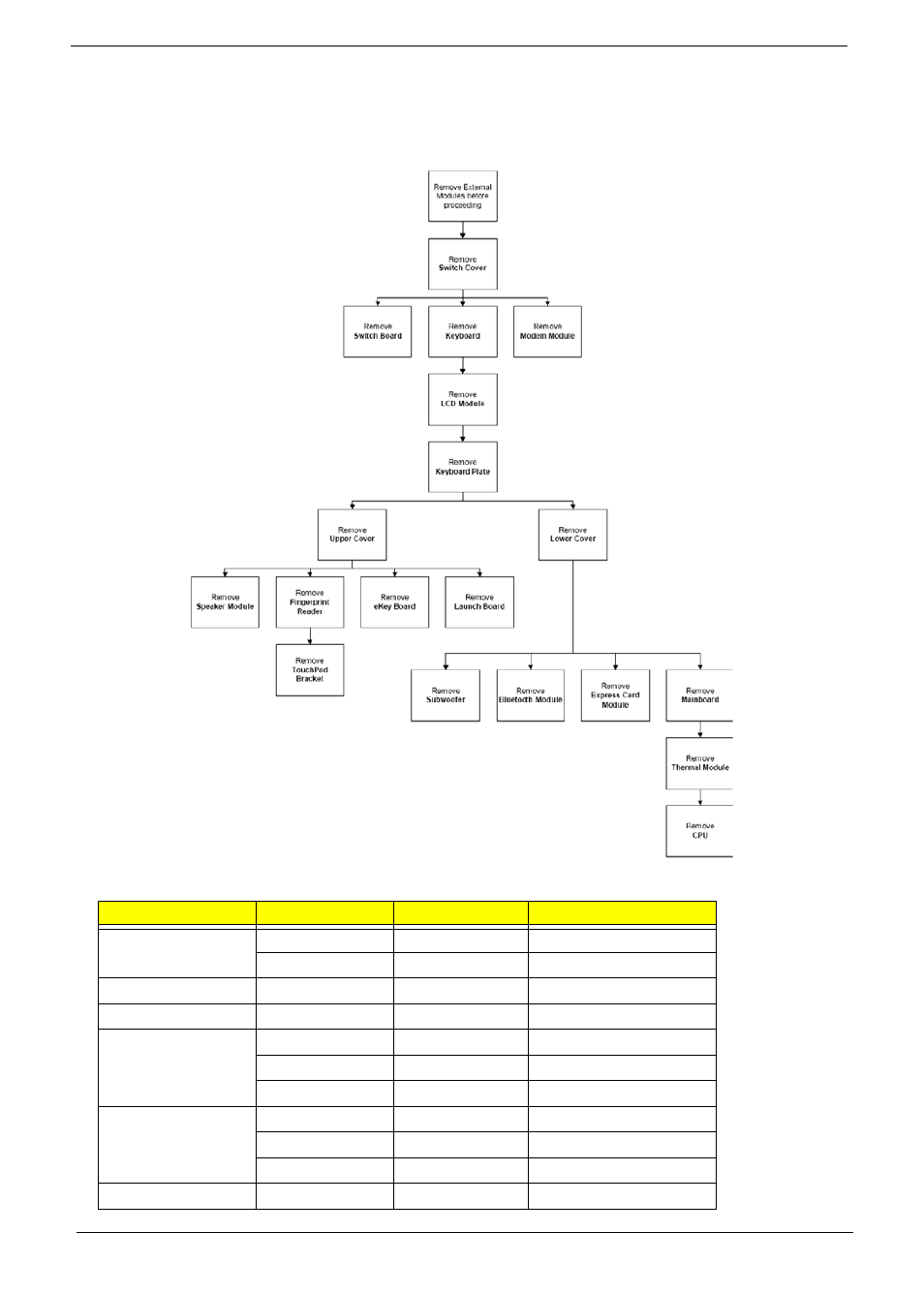

Main Unit Disassembly Flowchart
Screw List
Step
Screw
Quantity
Part No.
Switch Cover
M2.5*3
4
86.T25V7.012
M2.5*6.5
5
86.ARE07.001
Switch Board
M2*3
2
86.ARE07.002
Modem Module
M2*3
2
86.ARE07.002
LCD Module
M2.5*6.5
2
86.ARE07.001
M2.5*6.5
4
86.ARE07.001
M2.5*3
1
86.T25V7.012
Upper Cover
M2.5*6.5
11
86.ARE07.001
M2*3
1
86.ARE07.002
M2.5*3
4
86.T25V7.012
Touch Pad Bracket
M2*3
4
86.ARE07.002
