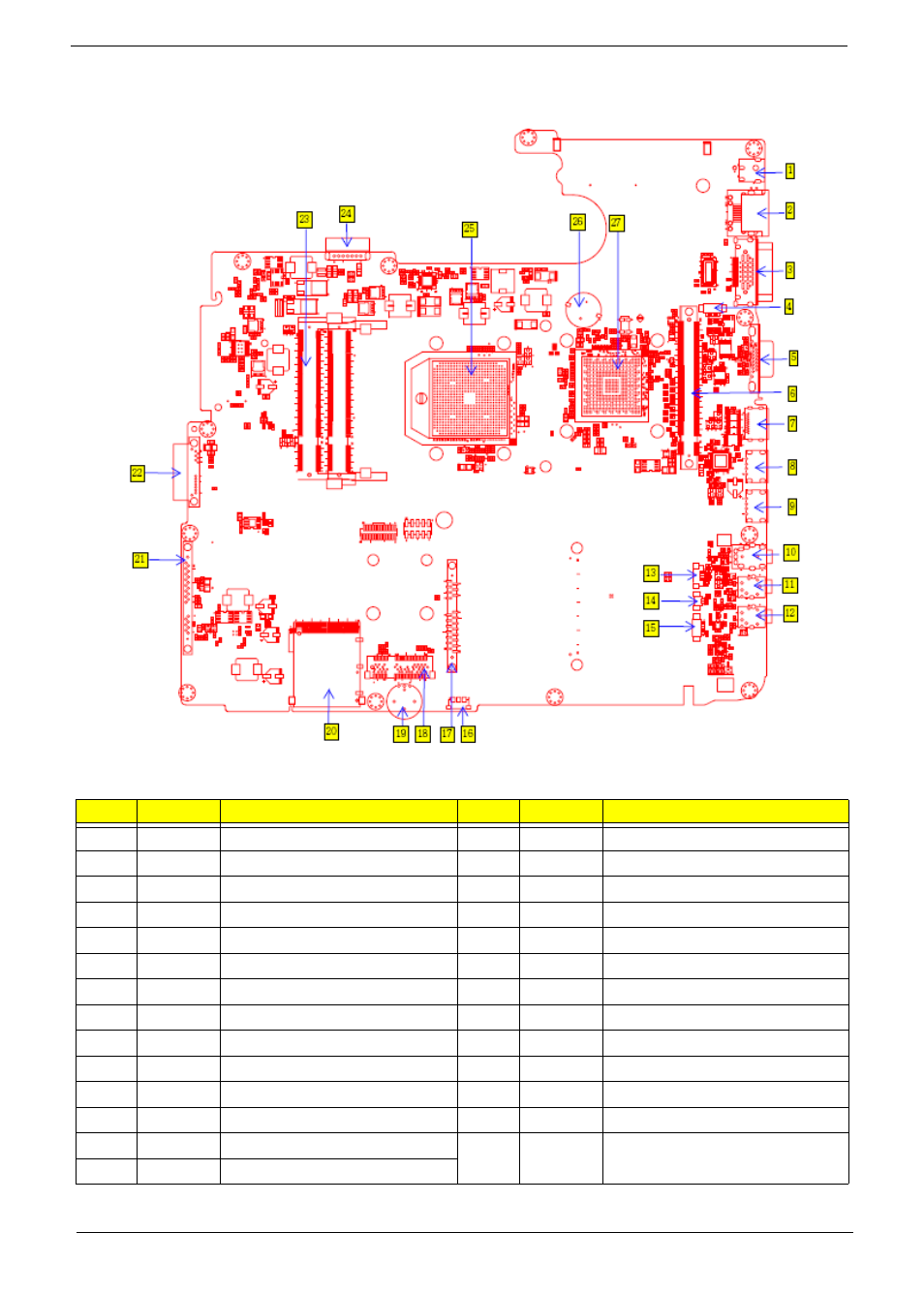

Bottom View
No. Jumper Description No. Jumper Description
1 PJ1 DC JACK 15 CN30 SUBWOOFER CONN.
2 CN11 RJ5 CONN. 16 U34 CIR
3 CN12 DOCKING CONN. 17 CN28 2nd HDD CONN.
4 CN14 FAN CONN. 18 CN33 MINI CARD
5 CN15 CRT CONN. 19 VR1 VOLUME WHEEL
6 CN16 MXM CONN. 20 CN31 CARD READER
7 CN17 HDMI CONN. 21 CN26 1st HDD CONN.
8 CN18 USB CONN. 22 CN19 ODD CONN.
9 CN20 USB CONN. 23 J1 SODIMM CONN.
10 CN29 S/PDIF JACK 24 PCN1 BATTERY CONN.
11 CN25 MIC CONN. 25 T90 CPU SOCKET
12 CN23 LINE-IN CONN. 26 CN13 RTC SOKET
13 CN27 SPEAKER CONN. 27 U24 NVIDIA MCP7
14 CN24 MIC CONN.
