Chapter 3
47
External Module Disassembly Process

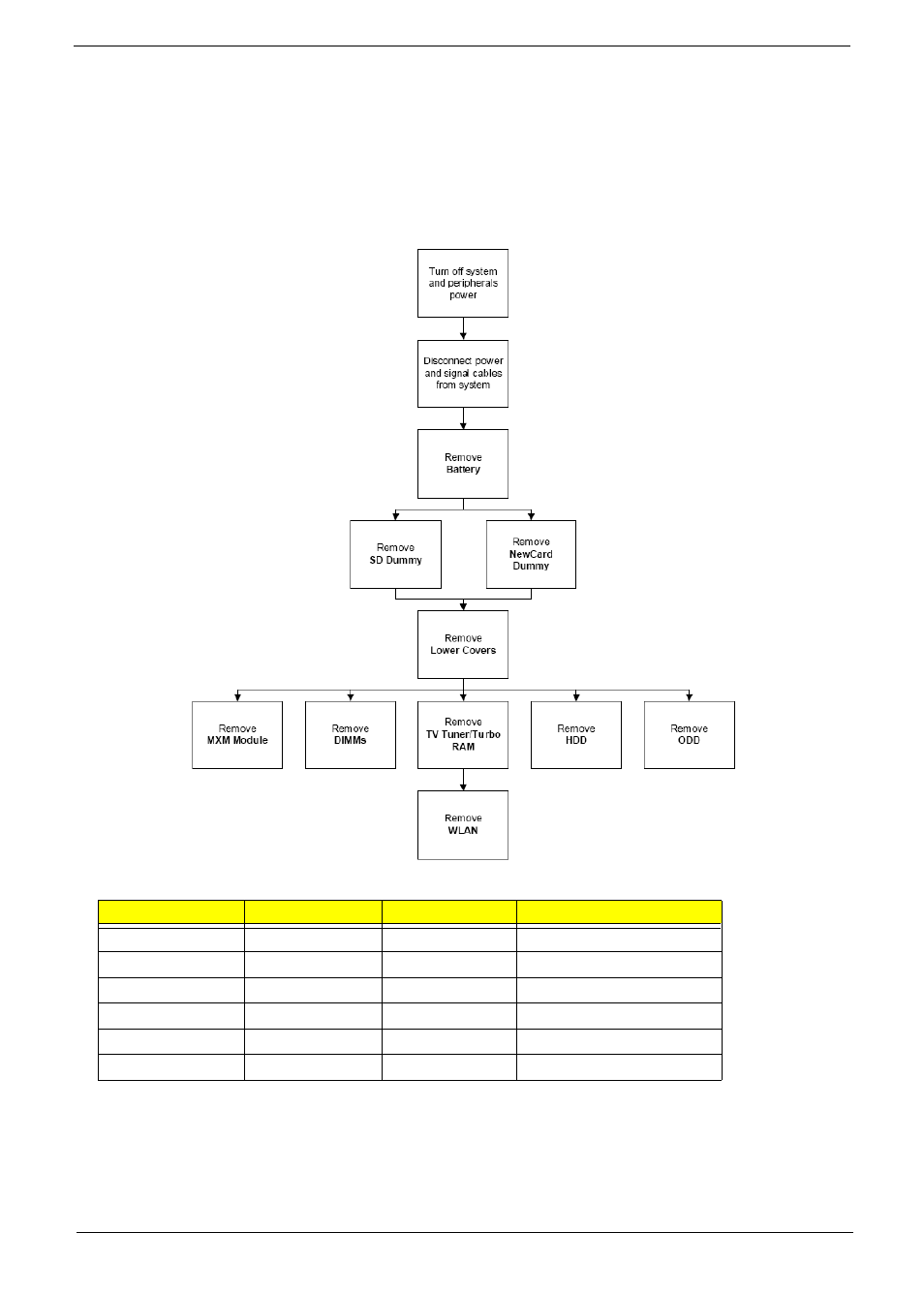

External Modules Disassembly Flowchart
The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you
on the components that need to be removed during servicing. For example, if you want to remove the main
board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
Screw List
Step
Screw
Quantity
Part No.
MXM Module
M2.5*9
4
N/A
TV Tuner Module
M2*3
2
86.ARE07.002
WLAN Module
M2*3
2
86.ARE07.002
HDD Module
M2*3
2
86.ARE07.002
HDD Carrier
M3*0.5+3.5
4
86.A03V7.011
ODD Bracket
M2*2.5
2
86.A03V7.007
