INSTALLATION

Installation of the DC1 is quite straightforward. To use one DC1 by itself, simply plug the microphone cables from
up to four microphones into the XLR inputs of the DC1. Connect the XLR outputs of the DC1 to the XLR inputs of
the mixing console.

If more than one DC1 is to be used, all but one must be set to the slave mode. Slave mode strapping is
accomplished by removing the top cover of the DC1 and moving the two jumpers in the upper right hand corner of
the DC1 from the forward position (i.e. toward the front panel) to the rear position (i.e. toward the rear panel). In
addition, the DC1’s should be connected using 9 pin subminiature D type cables as shown in Figure 3.

"Master"

"Slave"

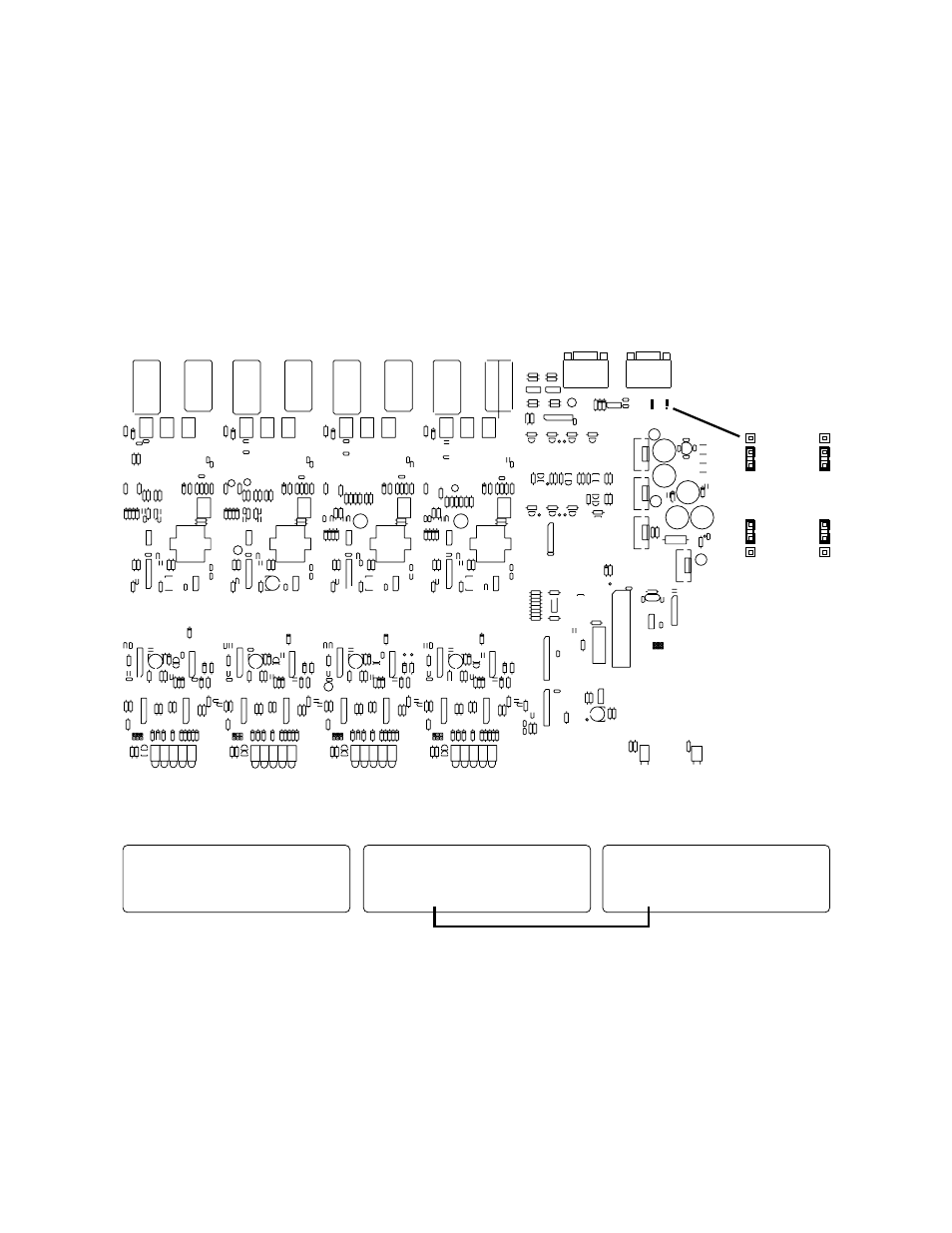

Figure 2 - DC1 Jumper Location and Settings

Master DC1

Slave DC1

Slave DC1

OUT IN

OUT IN

OUT IN

Figure 3 - Master/Slave Connections

4
