QUADRA
LECTROSONICS, INC. 8
MASTER
VOLUME
AUDIO CH.
1 2
NO
FUNCTION
NO
FUNCTION

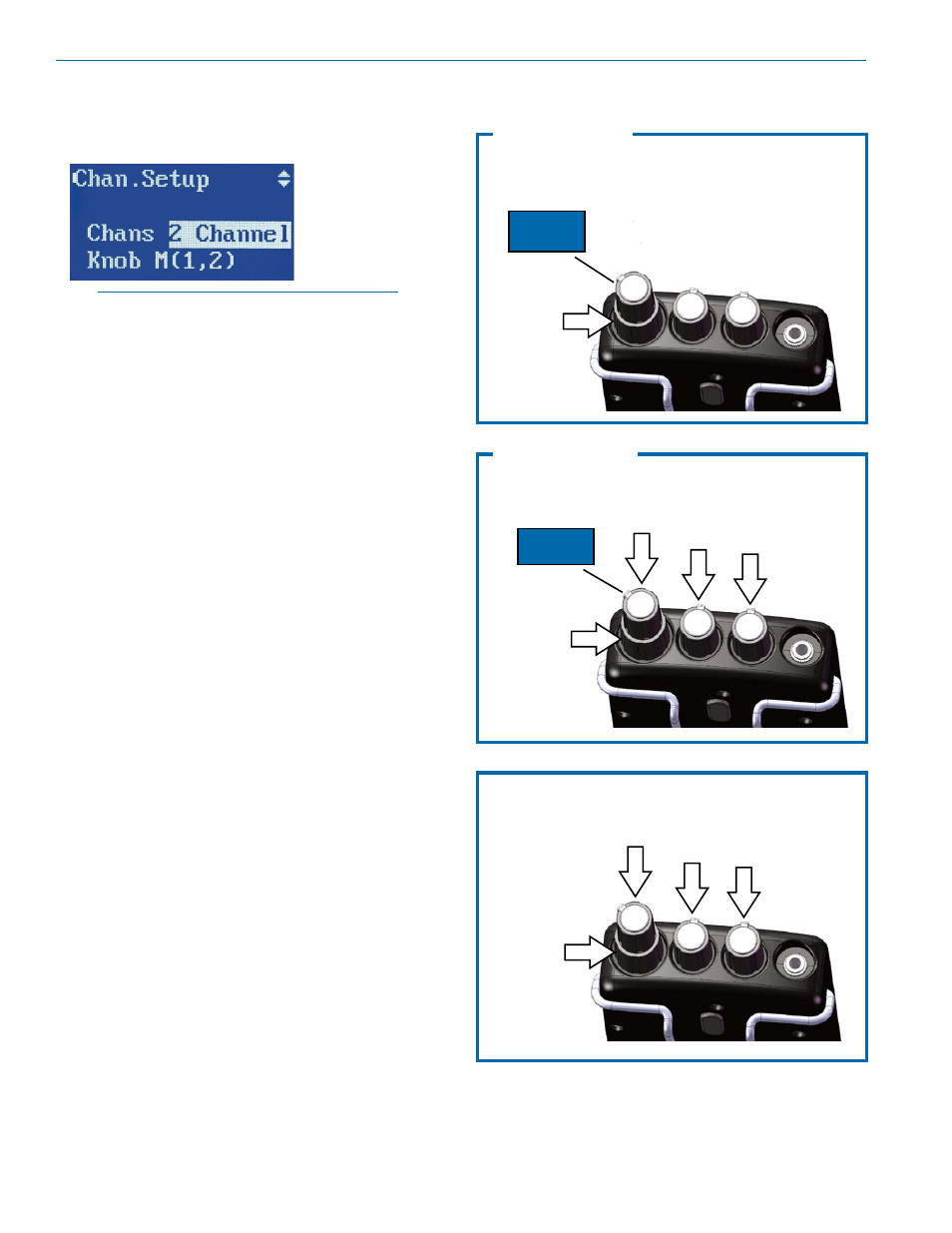

Master(1,2) mode
MASTER
VOLUME
Master(1)+2 mode
AUDIO
CH. 1
AUDIO
CH. 2
MASTER
VOLUME
NO
FUNCTION
AUDIO
CH. 1
AUDIO
CH. 2
1+2 mode
NO
FUNCTION
2 Channel Operation
In this mode, two channels are fed to the transmitter
and are available at the receiver.
NOTE: the transmitter must be also in 2 Channel
mode for the receiver to operate in this manner.
2-ch. mode allows for three different knob setups:
• Master(1,2)
This is the factory default and is equivalent to
standard IEM systems where only a stereo signal
is used. The tall, thin knob is the stereo master
volume.
• Master(1)+2
Feeds audio channel 1 to the master volume
(tall, thin knob) and audio channel 2 to the lower
concentric knob for independent control. You can
develop a stereo mix by panning each channel in
the stereo field (see panning, below).
• 1+2
Gives you individual control over both audio
channels. Audio channel 1 is fed to the tall thin
knob, and audio channel two is fed to the lower
concentric knob. In this setup, there is no master
volume knob. You can develop a stereo mix by
panning each channel in the stereo field (see pan­
ning, p. 10).
