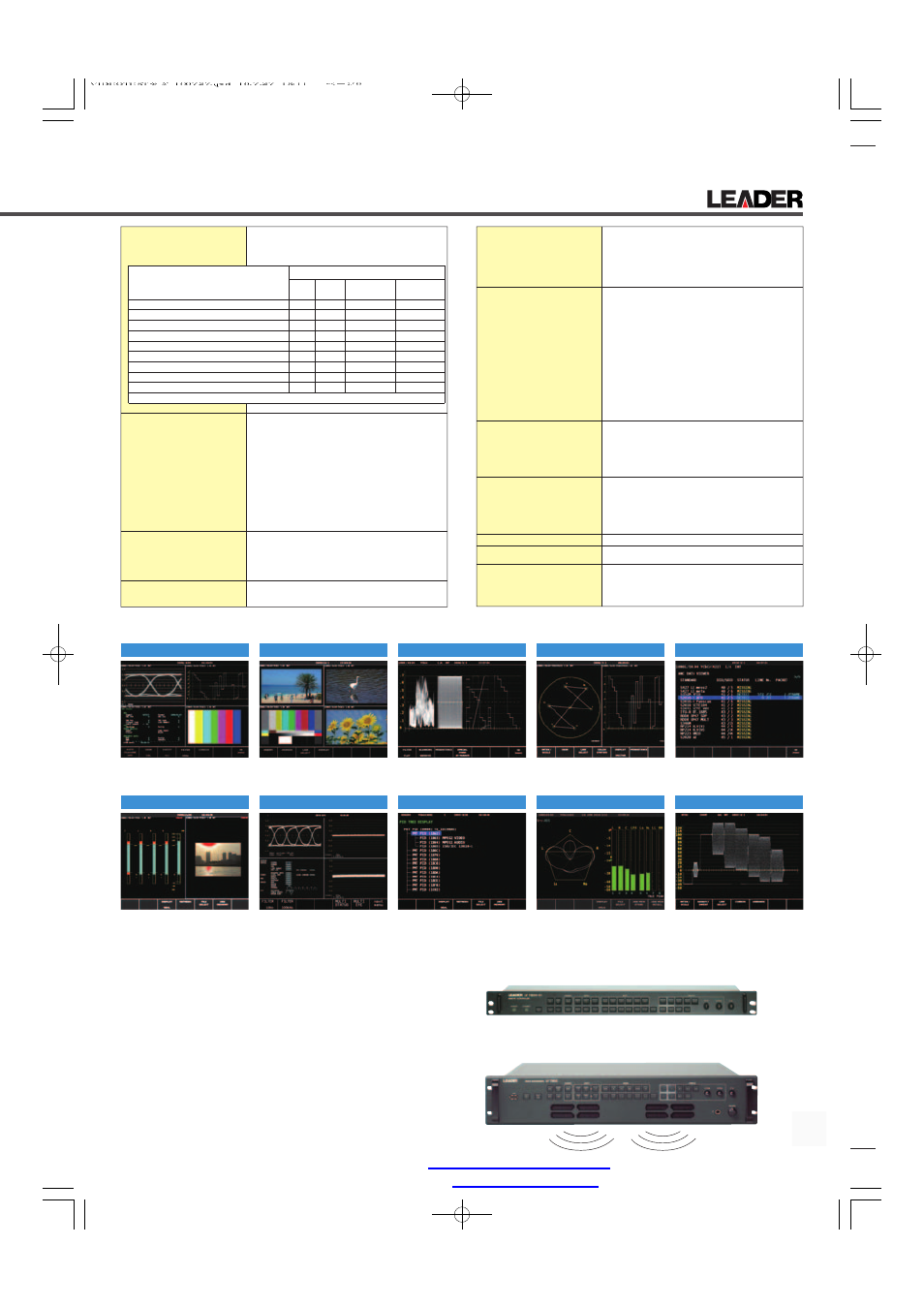

Page 3

LV 7800 SPECIFICATIONS

You can have two 0.8 W stereo speakers installed in the LV
7800 rasterizer as a factory option. These speakers enable you
to check audio. When you remove the headphones, the audio
output switches to the speakers. (LV 58SER40A installed)

Control over the Ethernet
The LV 7800-01 Remote Controller can control several
instruments by simply changing the IP address of the device.
482 (W) x 44 (H) x 110 (D) mm,
19 (W) x 1 3/4 (H) x 4 3/8 (D) Inch

Input/Output Slots

SLOT1, SLOT2

Slots for input units

SLOT3, SLOT4

Slots for input, output, or input/output units

Combinations of Supported Units

DVI-I Output

Output Connector

Signal Format

Single link T.M.D.S
Analog RGB

Display Format

XGA(The effective resolution is 1024 x 768.)
Wide displays are also supported (squeeze mode).
* Only if the LCD panel has a resolution conversion feature.

DDC

Not supported

HOT PLUG

Not supported

Screen Capture

Capture the screen to an image file (only one screen capture is
stored in internal memory)

Media

Internal memory (RAM) and USB memory

Data Output

Save screen captures in bitmap format to USB memory or send
them to a PC over an Ethernet connection.

Preset Settings

Number of Presets

Media

Internal memory (RAM) and USB memory

Recall Method

Front panel, remote connector, or Ethernet command

Copying Saved Settings

Copy preset settings to USB memory.

Loading Saved Settings

Copy all preset settings from USB memory to the LV 7800.

External Sync Signal Input

Input Connector

1 pair of BNC connectors

Input Signal

Tri-level sync or NTSC/PAL black burst

Input Impedance

Passive loopthrough, 15 kΩ

Input Return Loss

30 dB or higher

Maximum Input Voltage

±5 V (DC + peak AC)
* If the video signal waveform is displayed using an external

sync signal as a reference, the waveform phase one clock
before or after an SDI signal is inserted or the power is turned
on is indefinite.

External Control Connectors

USB Port

Compliant Standard

2.0

Device

Only large-memory devices are supported.

Function

Take screen captures, record data, and save preset settings

Ethernet Port

Compliant Standard

IEEE802.3 10BASE-T/100BASE-T

Connector

RJ-45

Function

Control the LV 7800 and monitor errors from a PC and save
screen captures and data to a PC

Remote Connector

Connector

25-pin D-sub (female)

Signal

LV-TTL level (Low active)

Function

Load preset settings, detect errors, switch inputs, and receive
analog audio signals*
* To measure analog audio signals, an LV 58SER40A (DIGITAL

AUDIO) unit is necessary.

Headphone Output*

Output Signal

SDI-embedded audio signal, or an audio signal that was
received from an external source

Output Connector

One 6.3-mm stereo jack

Volume Adjustment

Volume knob
* Headphone output is enabled when an LV 58SER40A (DIGI-

TAL AUDIO) unit is installed.

Environmental Conditions

Operating Temperature

0 to 40 ˚C

Operating Humidity

85 %RH or less (no condensation)

Operating Environment

Indoors

Operating Altitude

Up to 2,000 m

Overvoltage Category

Pollution Degree

Power Supply Requirements

90 to 250 VAC, 50-60 Hz, 150 W max.

Dimensions and Weight

482 (W) x 88 (H) x 450 (D) mm (not including protrusions), 8.5 kg
19 (W) x 3 1/2(H) x 17 3/4 (D) inch, 19 lbs.

Accessories

Instruction manual.................................................................1
Power cord ...........................................................................1
Cover/Inlet stopper ...............................................................1
25-pin D-sub connector ........................................................1
25-pin D-sub connector cover ..............................................1

IDisplay Examples

ILV 7800-01 REMOTE CONTROLLER (sold separately)

ILV 7800 op70 Speakers (Factory option)

LV 7800 Slots

Unit

Does the Slot Support the Units

SLOT1
(Input)

SLOT2
(Input)

SLOT3
(Input/Output)

SLOT4
(Input/Output)

LV 58SER01A (SDI INPUT)

Yes

LV 58SER02 (EYE PATTERN)

Yes*

LV 58SER03 (COMPOSITE INPUT)

Yes

LV 58SER04 (MPEG DECODER)

Yes

LV 58SER06 (3G-SDI INPUT)

Yes

LV 58SER07 (3G-SDI EYE PATTERN)

Yes

LV 58SER20 (DVI-I OUTPUT)

Yes

LV 58SER21 (ANALOG COMPONENT OUTPUT)

Yes

LV 58SER40A (DIGITAL AUDIO)

Yes*

* Only one of this type of unit can be installed in an LV 7800.

Multi-Screen

EX, LV 58SER01A, LV 58SER02
1 set each are installed

EX, LV 58SER01A 2 sets are installed EX, LV 58SER01A 2 sets are installed

EX, LV 58SER01A 1 set is installed

4 Inputs Picture

Waveform/4Y Palade

Waveform/Vector

Anc Date Viewer

5 Bar/Gamut

EX, LV 58SER01A 1 set is installed

EX, LV 58SER01A 2, LV58SER02
1 set are installed

EX, LV 58SER04 1 set is installed

EX, LV 58SER40A 1 set is installed

EX, LV 58SER03 1 set is installed

EyePattern/Jitter

MPEG

Audio

Composite

0.8 W +0.8 W
