LEADER LT450 - Manual

Multiformat Pattern Generator
LT 450
PRODUCTS
NEWS
■GENERAL
The LT 450 is a DTV-compatible multiformat pattern signal
generator equipped with analog component and composite
outputs and digital outputs.
It generates monoscope, color bar, ramp, crosshatch,
multiburst, character, and other test patterns.
You can add additional digital outputs such as DVI-I and
HDMI and analog outputs such as a SCART connector by
ordering option units.
■FEATURES
●Multiformat support
With the formats available on the LT 450, you can test most
video displays, including television sets, PC monitors, and
projectors.
The LT 450 supports 19 component output formats, 8
composite output formats, and 5 PC monitor formats.
●HDMI output
The LT 450 is equipped with an HDMI connector, which is a
digital interface used in household televisions and set-top
boxes. It can be used to check HDCP-compliant copyright
protection functions and to make simple checks on the CEC
and DDC functions (pass/fail results can be displayed on
screen). Simple checks can be made simultaneously on up
to seven outputs (when option units are installed).
●G, B, R and Y, P
B , P R signal outputs
Analog and digital component outputs can be switched
between G, B, R and Y, P
B , P R signal formats.
●S connector
Equipped with an S connector for Y/C separation signal
output. An ID signal is superimposed on the C signal.
●D connector
Equipped with a JEITA CP-4120 D5 output. Supports ID
signals (lines 1, 2, and 3).
●RGB connector
Equipped with a mini D-sub 15-pin connector, which is an
analog interface for PC monitors.
●DVI-I output
Equipped with a DVI-I connector, which is a digital interface
for PC monitors. It can be used to check HDCP-compliant
copyright protection functions and to make simple checks on
the DDC function.
●Sync signal outputs
Equipped with sync signal connectors that transmit CS (tri-
level or binary), HD, and VD signals.
●Analog audio output
The frequency (400 Hz or 1 kHz) can be set and the output
can be turned off separately for left and right channels.
●Simple motion picture
You can make any test pattern into a simple motion picture
pattern by scrolling it vertically, horizontally, or diagonally.
●Variable output level feature
The video signal level and the analog sync signal level can
be adjusted separately in the range of 0 to 100 %.
●Closed caption and teletext
Supports closed captions.
Teletext (VBI), CGMS, and WSS will be supported in the
future.
●Remote control via RS232C
The LT 450 can be remotely controlled from a PC
●Preset/recall features
Up to 100 panel settings can be stored and recalled.
■Factory Options
●Natural picture option (future support)
Allows storage and output of natural picture data.
●PVG option (future support)
Allows generation of video timing and test patterns that have
been created on an external PC.

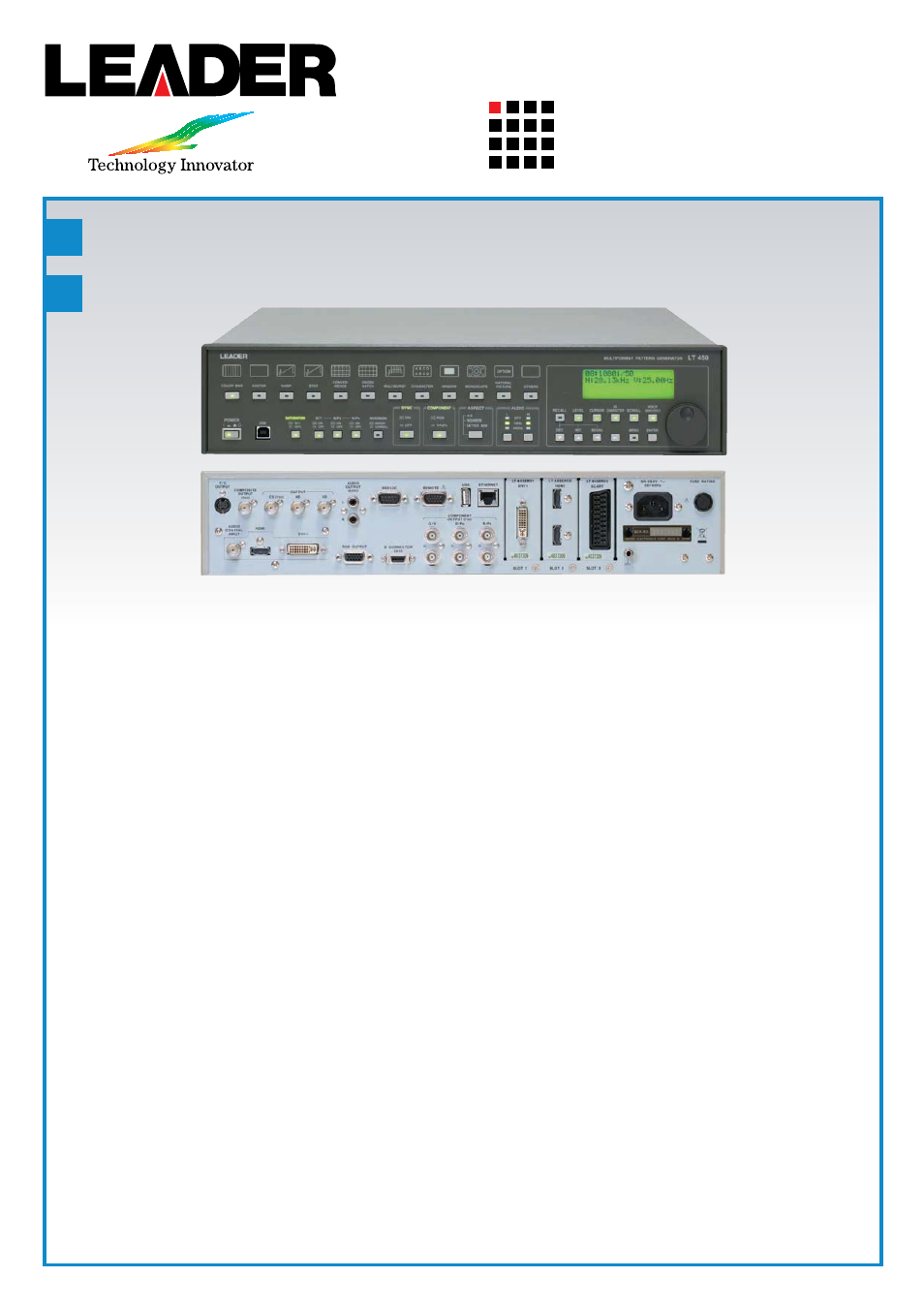

Shown with Option Units
HDMI 1.3a-Compliant
Multiformat Pattern Generator
