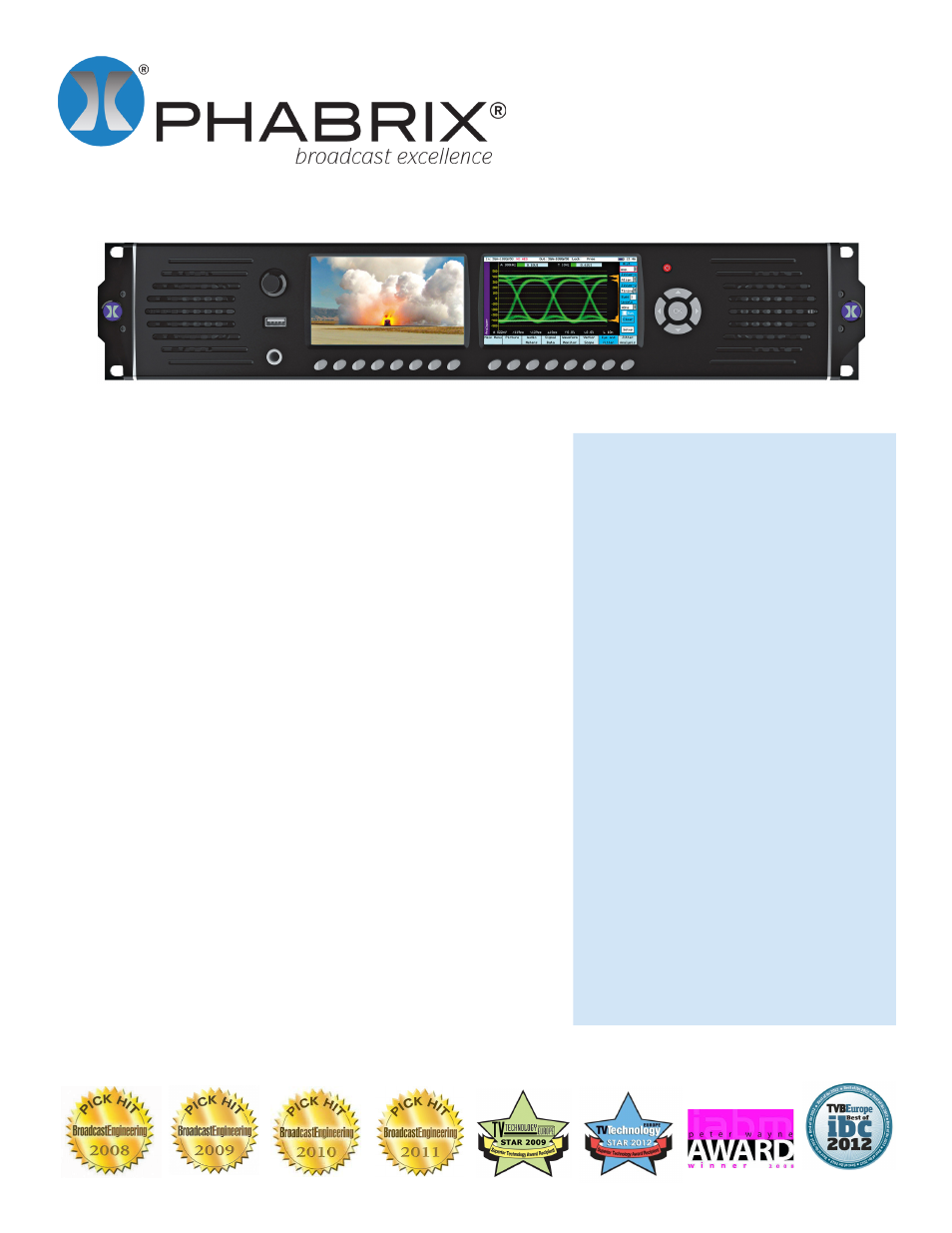

The “Top of the Range” Rx2000 with 2 built-in screens along

with HDMI/SDI output makes this an ideal instrument for outside

broadcast facilities and engineering bays. Confidence is assured

with both video screen and instrumentation available at point of

source and MCR with a simple touch of a button control. Video

and audio sources are easily selected using the input button

control. The focused ergonomics of the Rx mean instruments are

never more than two button presses from top level to instrument

parameter control.

Clever “tilt-in-bay” engineering allows the Rx2000 to be seen at

various eye levels. The Rx2000 benefits from an angled slim profile

of only 13cm of depth. As with all of the Rx range, each instrument

is very lightweight and benefits from very low power consumption.

The Rx2000 can take up to four modules offering 8 simultaneous

SDI channels. Optical is supported via SFP which can be inserted

into the cage built into each module providing 8 optical channel

support, if required.

With a choice of video and audio modules within its slim 2U profile,

the Rx2000 can be found in a range of broadcast environments.

Modules are constantly being added to the range with both video

and audio support. Physical layer measurement is available as a

single eye or dual eye analyzer module.

The Rx2000 supports 16 channels of embedded audio as standard

and comes complete with full range stereo speakers. Additionally

there is a standard audio jack provided on the front of the instrument

for earphones. A front mounted USB port is available for data grab

and off-line parameter storage.

PHABRIX

®

R

X

2000

Dual Screen Rasterizer

FEATURE HIGHLIGHTS:

• 3 IN 1, GENERATOR / ANALYZER /

MONITOR

• 3G-SDI, HD-SDI, SD-SDI

• HDMI OUTPUT

• UP TO 8 SIMULTANEOUS SDI

CHANNELS

• DUAL SCREEN TFT 480x722

PIXELS

• 4 INTEGRATED MODULE SLOTS

• TILT MECHANISM FOR

DIFFERENT VIEW ANGLES

• INTERNAL STEREO

LOUDSPEAKER

• EXTERNAL TEMPERATURE

CONTROLLED FAN

• EMBEDDED AUDIO 16 CHANNELS

DISPLAYED SIMULTANEOUSLY
