Laurel Electronics LTM DPM SERIES ANALOG INPUT, SERIAL DATA OUTPUT User Manual
Page 20
- 20 -

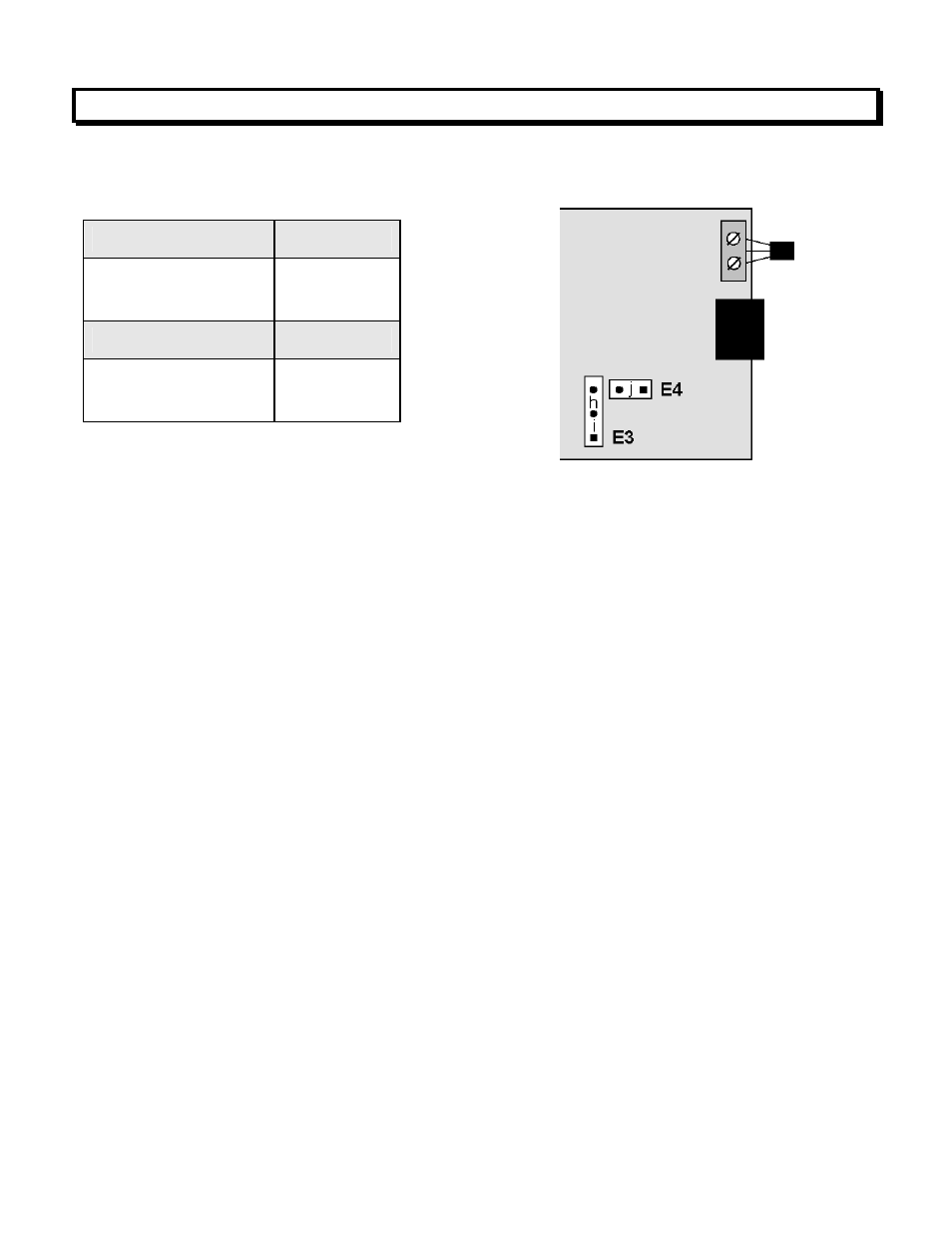

12. THERMOCOUPLE SIGNAL CONDITIONER BOARD JUMPER SETTINGS
Seven thermocouple types are jumper selectable. These also have to be selected in Instrument
Setup software.
1. Use 2.5 mm (0.1") jumpers.
2. Store spare jumpers on an unused jumper post.
Thermocouple Type
E4 Jumper
J, K, E, N
T, R, S
none
j
Open T/C Indication
E3 Jumper
Upscale
Downscale
h
i
