Switch Examples Continued
Port 4 Port 3 Port 2 Port 1

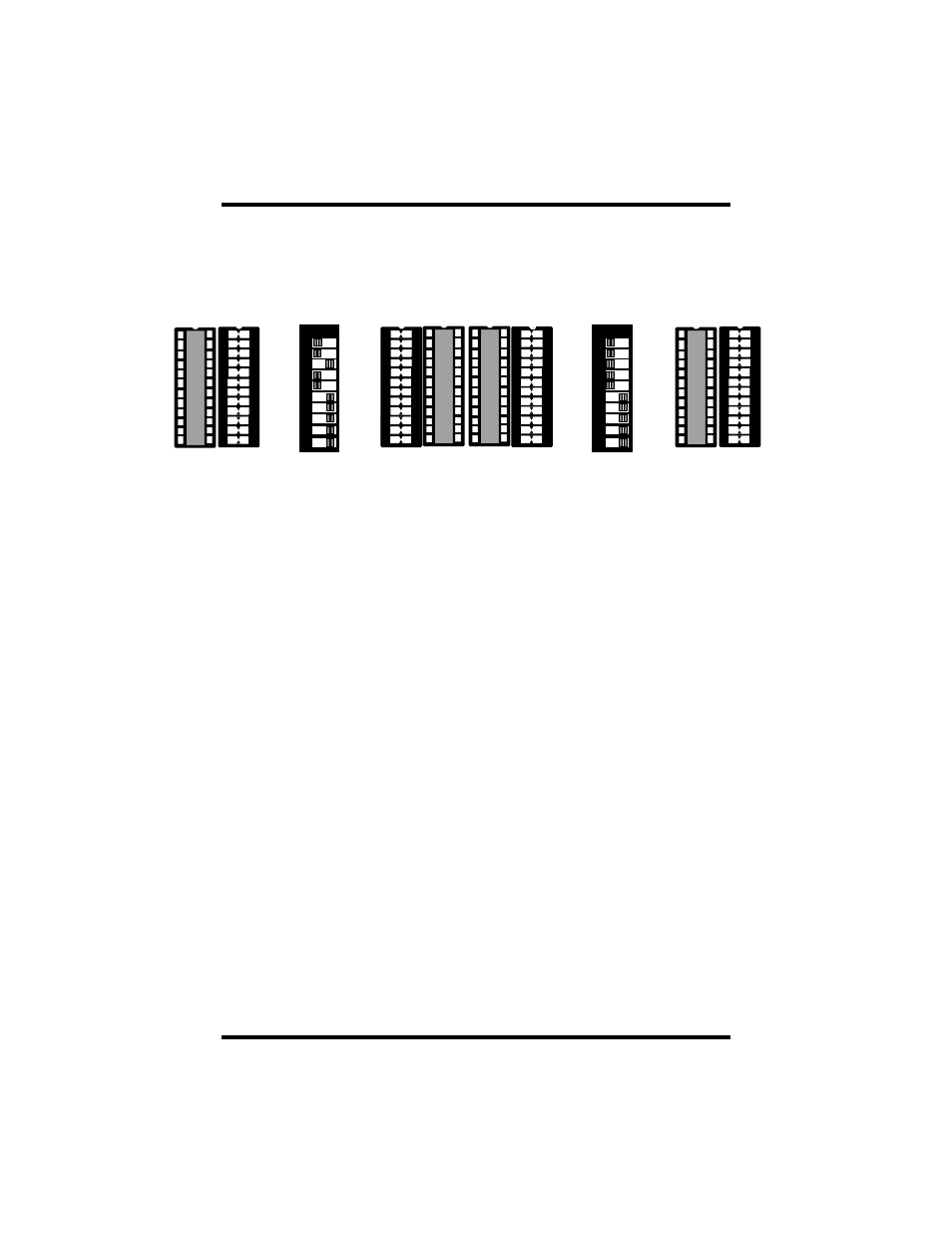

Figure 3: Electrical Interface Configuration
Port 1 : RS-232
The corresponding shunt is in the 232 position. The switches will have
no effect.
Port 2 : RS-485 two wire communication with no echo.
The corresponding shunt is in the 422/485 position. Switches 485 2,
NE 2, and Port 2 L, L, T, PU, and PD are all in the ON position.
Port 3 : RS-422 with 120 ohm termination.
The corresponding shunt is in the 422/485 position. Switches 485 3,
NE 3, and Port 2 L, L, PU, and PD are all in the OFF position, T is in
the ON position.
Port 4 : RS-485 two wire communication with echo.
The corresponding shunt is in the 422/485 position. Switches 485 4,
and Port 2 L, L, T, PU, and PD are all in the ON position, NE 4 is in
the OFF position.
