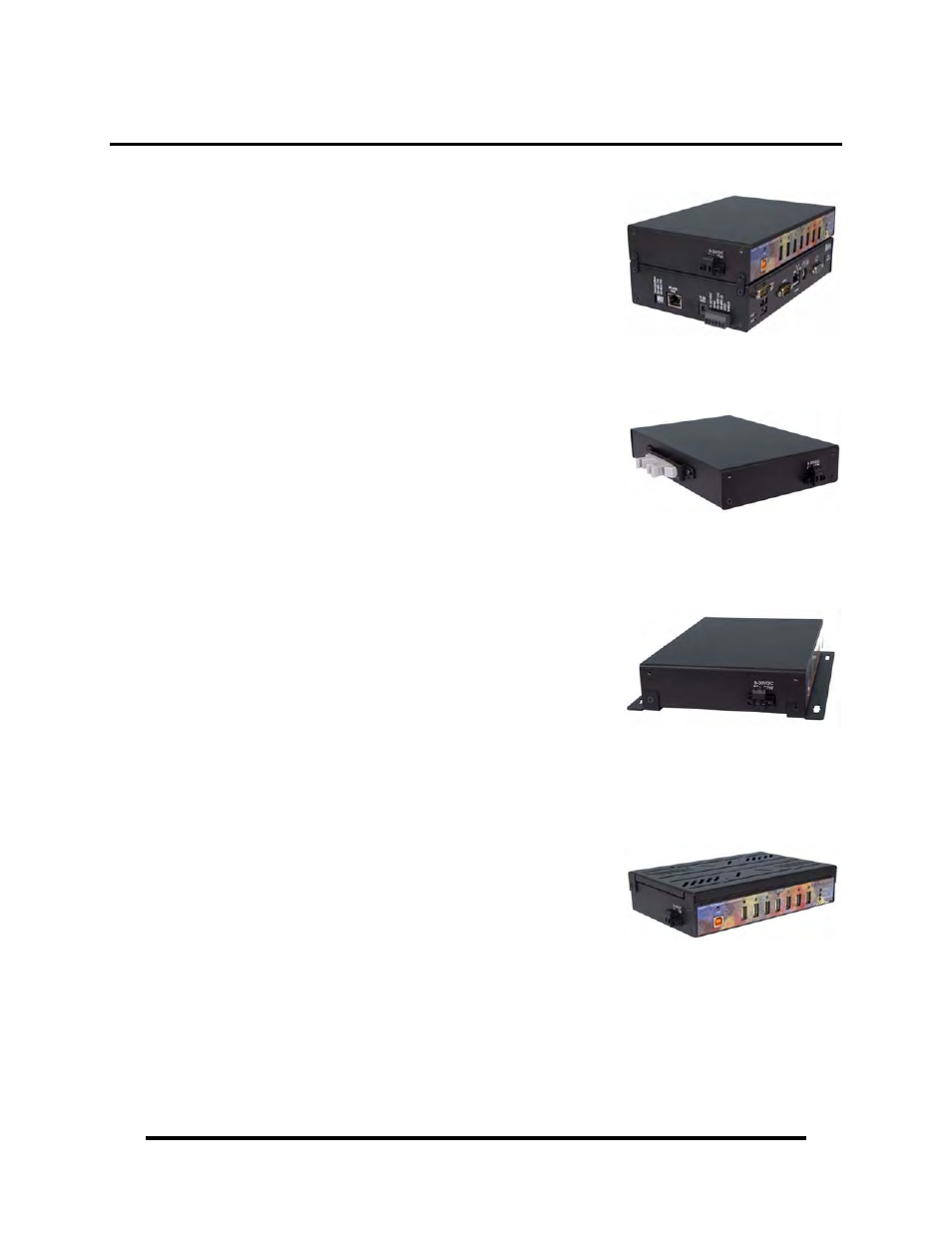

Mounting Options
SeaI/O Mounting Kit
The SeaI/O-270U is ideal for adding USB ports to
a Relio R1000 embedded solid-state industrial
computer (as shown), SeaPAC touchscreen HMI
system, or a SeaI/O data acquisition “stack”. The
SeaI/O-270U ships with an expansion kit that
includes four metal straps and four #4-40 metal
screws.
DIN Rail Mounting
The SeaI/O-270U is available with a factory-
installed DIN-rail mounting clip. Alternatively
DIN-rail mounting clips can be ordered as a field
upgrade kit (Item# DR104). The bracket with clip
is easily attached using two included #4-40
Phillips head machine screws.
Table/Wall Mounting
The flush mount bracket kit (Item# KT123) is
extremely versatile and can be used to mount the
SeaI/O-270U from the top, bottom, or back edge.
The hub alone or with a stack of SeaI/O modules
can be mounted flat to a tabletop, underneath a
counter, or inside an enclosure. The kit can be
used to mount the hub flat to a wall, or along the
back edge, similar to DIN-rail mounting options.
Universal Mounting Bracket
The universal mounting bracket (Item# KT125)
can be used as a “backpack” to other USB
peripheral devices to the SeaI/O-270U. The
universal arrangement of slots and holes accept
bolt sizes to M4 and can be used for virtually any
mounting configuration. The bracket also has
holes for both 75mm and 100mm VESA mounting
options.
