PIO-96.PCI User Manual
Before You Get Started
What’s Included
The PIO-96.PCI is shipped with the following items. If any of these items is missing
or damaged please contact Sealevel for replacement.
PIO-96.PCI Adapter
Sealevel SeaI/O Software CD
Optional Items
Depending upon your application, you are likely to find one or more of the
following items useful for interfacing the PIO-96.PCI to real-world signals. All
items can be purchased from our websit
calling
(864) 843-4343.

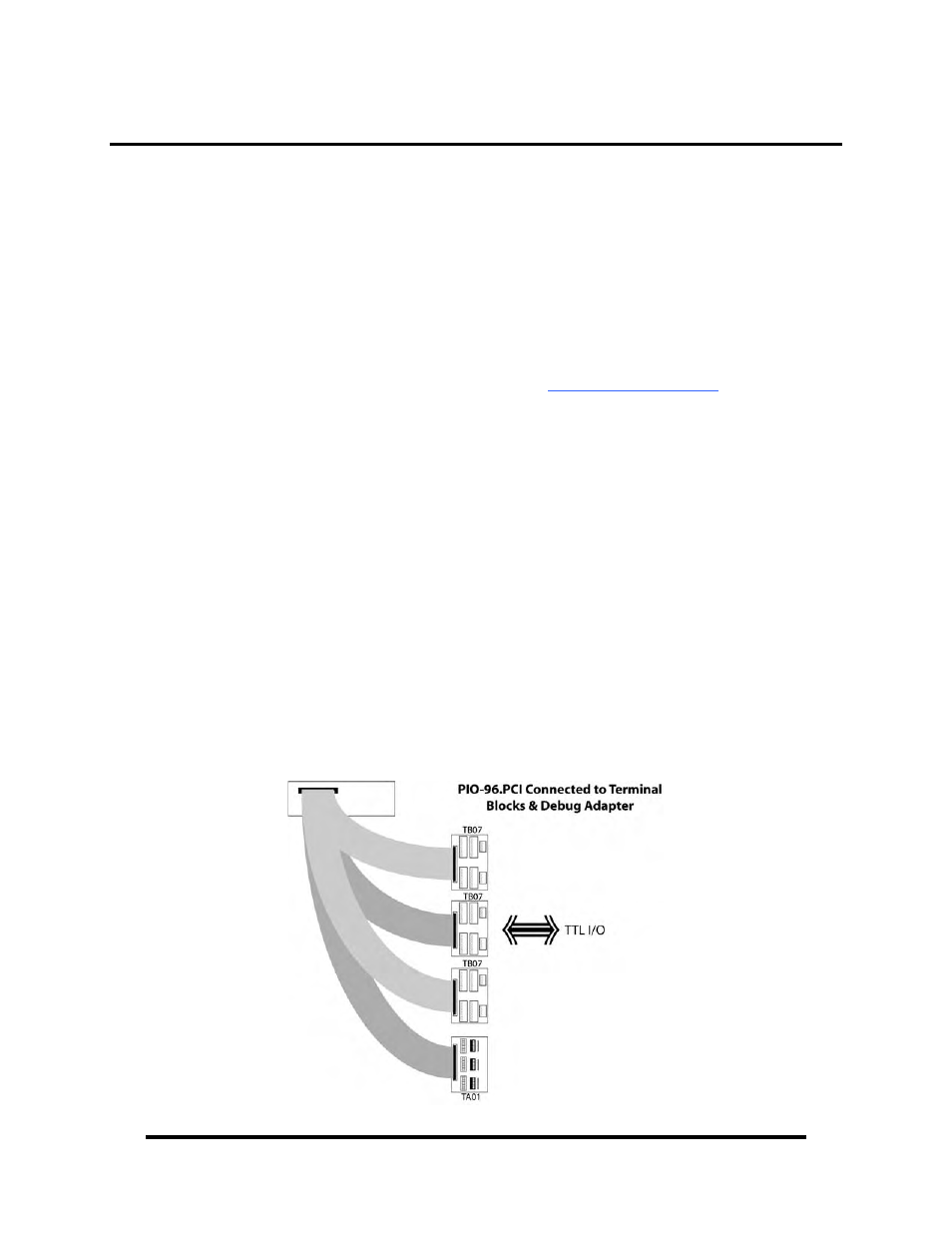

For TTL applications:
Terminal Block Kit - (Part Number KT107)
−
Kit includes the TB07 screw terminal block and CA167 ribbon cable
for connecting one of the PIO-96.PCI’s 50-pin header connectors to
your I/O. 6” Snap track and DIN rail clips are included for DIN rail
mounting.
IDC 50 to IDC 50 Pin 40" Ribbon Cable (Part Number CA167)
−
Interfaces each of the PIO-96.PCI’s 50-pin header connectors to your
I/O.
Simulation/debug module (Part Number TA01)
−
Module allows monitoring status of output pins and controlling state
of input pins. An LED corresponding to each port bit illuminates to
indicate state. Eight position DIP-switches are used to generate input
status changes.
