Ordering Information Packing List
1 x IPC122-833-FL unit
1 x utility CD
1 x screw pack
4 x Foot pad
2 x thermal pad for DRAM
2 x Rack mount handle
2 x Rack mount Ear
1 x HDD Mylar
8 x 5-Pin Phoenix connector
2 x 6-Pin Phoenix connector
IPC122-833-FL
(P/N: E26G122100)
1U fanless barebone system with Intel ® Atom™ processor
N2800, Multiple LAN and Multiple COM
*Specifications and certifications are based on options and may vary.

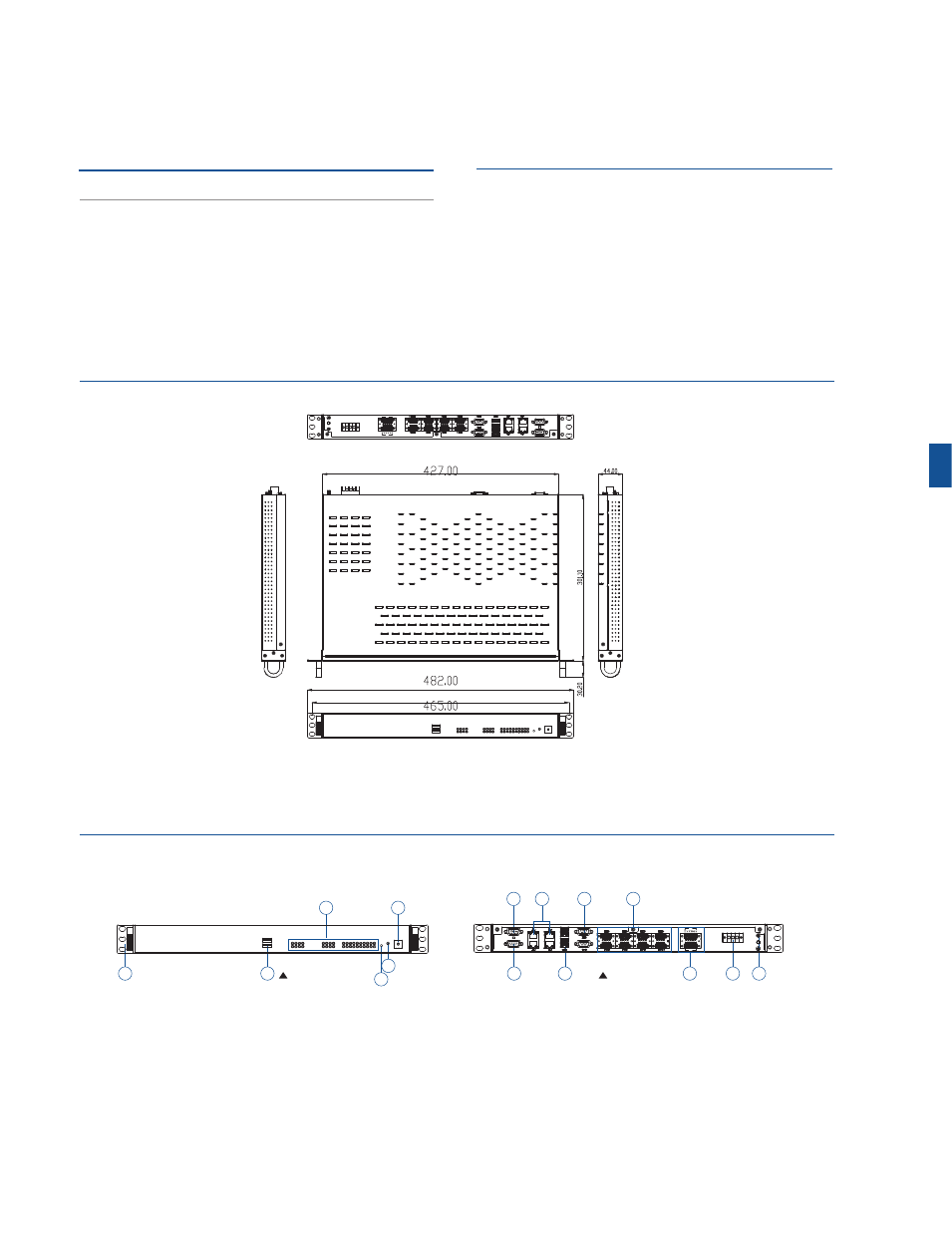

Dimensions
Front & Rear Metal Panel I/O Layout
L G N
DI
DO CAN
1 2
4
6
8 10 13 14 15
3 5
7 11 12 9
1. 19-inch rackmount
2. USB2.0 x 2 4. Reset Button
5. Power Button
6. HDD LED 7. VGA
8. CAN Bus
9. 10/100/1000Mbps
Ethernet x4
10. USB2.0 x 4 11. RS232 Serial Port x2
(DB 9 male)
12. RS232-422-485 Serial Port x8
(Terminal Block)
L G N
DI
DO CAN
3. LEDs
Ethernet x 4
DO x 4, DI x 4
Serial Port TX x 10, RX x 10 13.DI x4,DO x4
(Terminal Block)
14.AC Power Input
15.GND
Rear view Front view
