Product Information
1 AXB-232++ RS-232/422/485 Interface
Product Information
The AXB-232++ RS-232/422/485 Interface is an AXlink bus controller that provides remote
control for devices that require a variety of control protocols. The AXB-232++ extends RS-232,
RS-422, or RS-485 control to remote sources over the 4-wire AXlink data/power bus.
Onboard processing and memory allows the controller to take on complex tasks by itself, reducing
the processing burden for the Axcess control system. For example, the control system can use
simplified commands for generic video switcher or code control, a modular driver program in the
AXB-232++ can process control for specific makes and models.
Front Panel

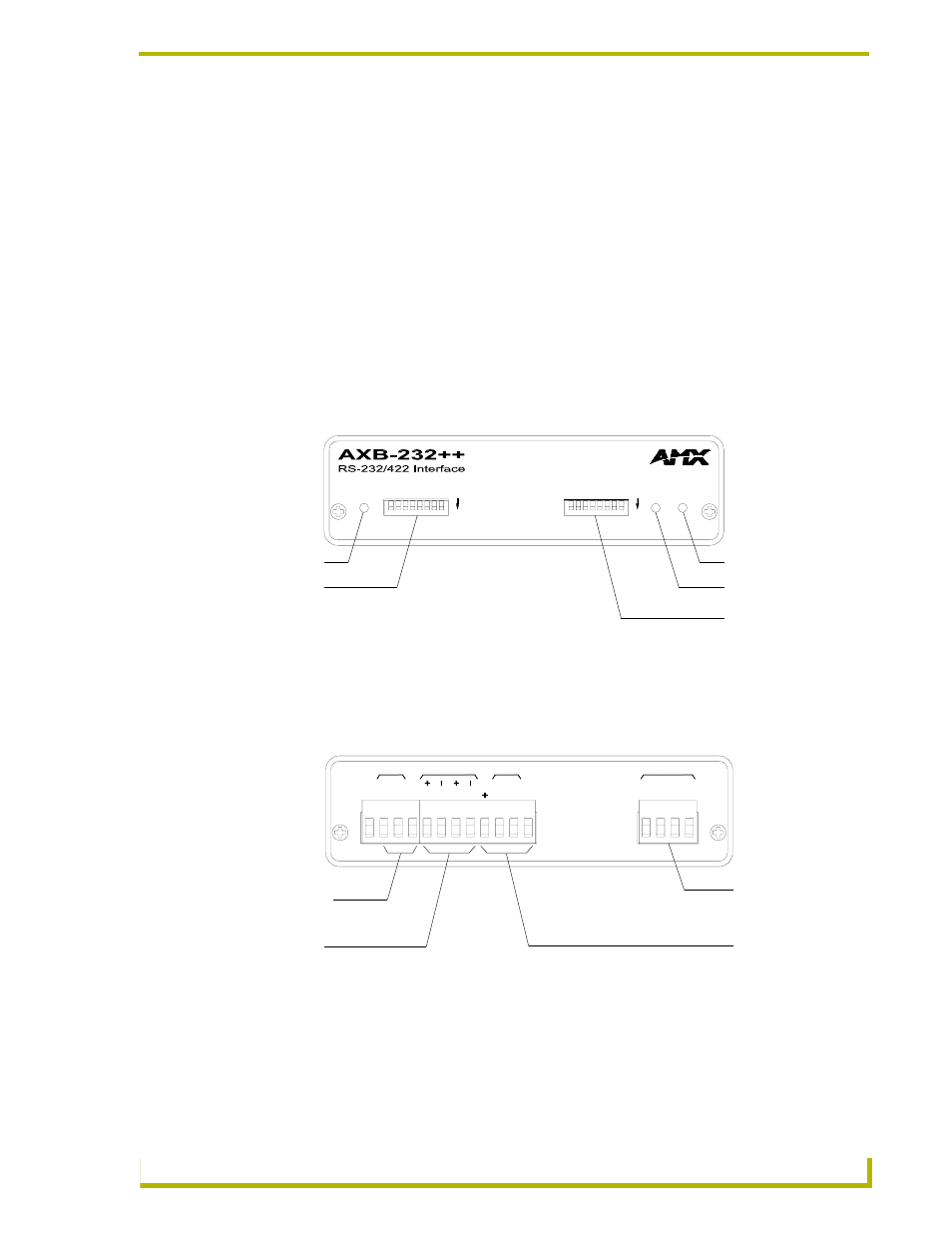

FIG. 1 displays the front panel of the AXB-232++.
Rear Panel
FIG. 2 displays the rear panel of the AXB-232++.
FIG. 1 AXB-232++ front panel
FIG. 2 AXB-232++ rear panel
TX RX
ON
RS-232/422 AXlink DEVICE
ON
AXlink LED
DEVICE DIP
switch
TX LED
RX LED
RS-232/422
DIP Switch
RS422
RT
S
CT
S
RS232
TX GND TX
RS232
TX RX RX
12V
RX GND GND AX
M
AX
P
PWR
AXlink
Hardware
handshaking
connections
RS422
connections
AXlink connector
RS232
connections
