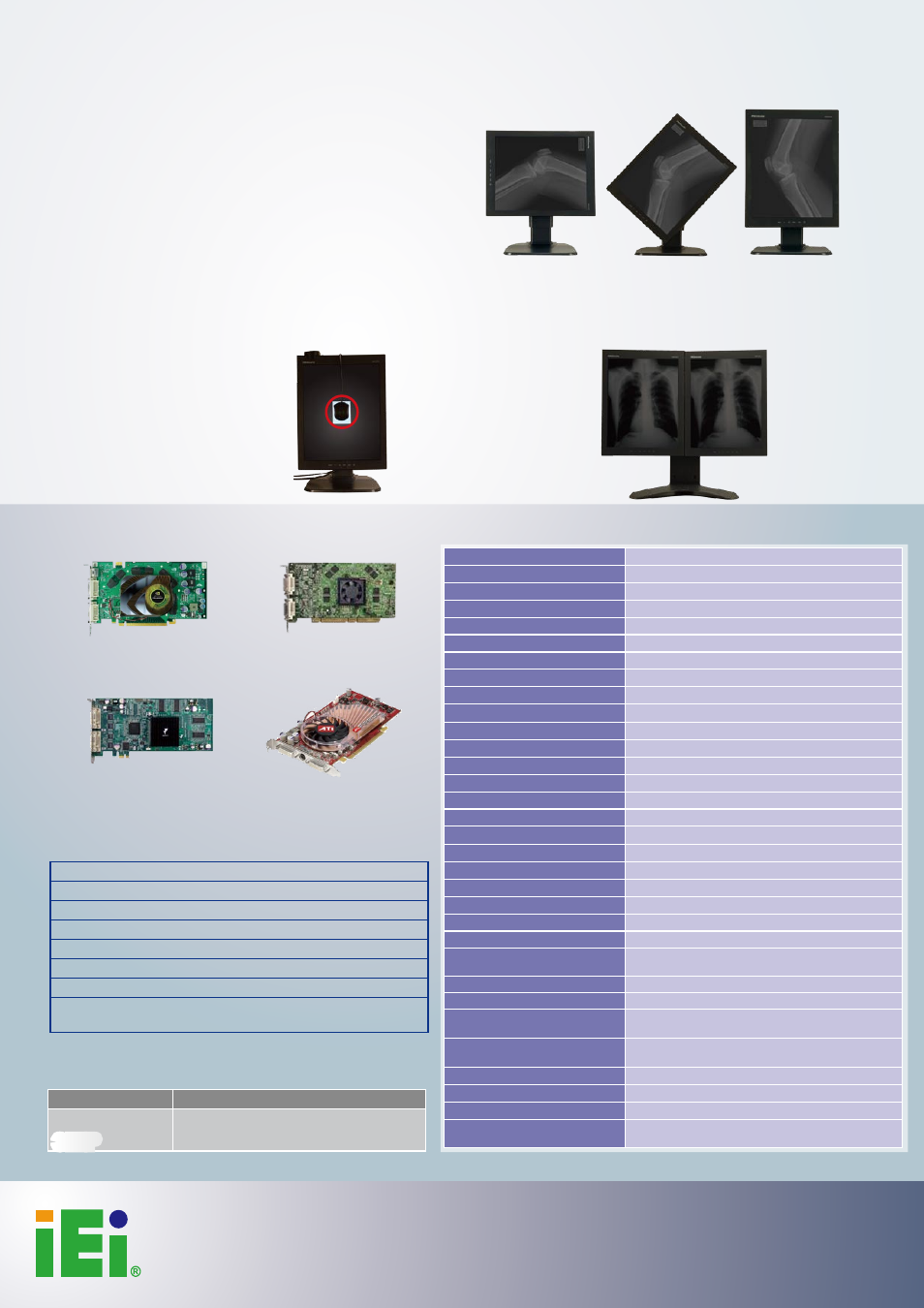

Impulse MMD-3213M - Manual (Page 2)

Graphic Card Compatibility
Packing List
nVIDIA QUADRO FX560/FX1500
nVidia GeForce 8600GT
Matrox MED series
RealVision SMD PCI-X series
RealVision SMD ADV series ATI V7100/V3400
PACSmate™ Series medical LCD monitor
Monitor stand
Power Cord (US x 1, EU x 1)
Power Adapter
Dual-link DVI-D Signal Cable
USB Cable
GeniSPOT® USB Calibrator
Utility CD-ROM
(for user's manual, software utility, and GeniPASS® QC software)
Ordering information
Headquarters
IEI Technology Corp.
TEL : +886-2-86916798 FAX : +886-2-66160028
[email protected] www.pacsmate.com
No. 29, Jhongsing Rd.,Sijhih City,Taipei County, 221, Taiwan
America-United States
IEI Technology USA Corp.
TEL : +1-909-595-2819 Fax: +1-909-595-2816
[email protected] www.pacsmate.com
168 University Parkway, Pomona, CA 91768
China
IEI Technology (Shanghai) Co.,Ltd.
TEL : +86-21-3462-7799 FAX : +86-21-3462-7798, 3462-7797
[email protected] www.pacsmate.com
3F No. 1728 Yi-Shan Road, Min-Hang, ShangHai, China
Ergonomic Design
Narrow bezels enable seamless side-by-side viewing for diagnostic
applications.
Pairing Monitors
IEI provides a pair matching service for dual-head display applications,
allowing image comparison for diagnostic practices.
GeniSPOT® & GeniPASS® QC Solution
Packed in every IEI PACSmate™ monitor, the GeniSPOT® 3-in-1 calibration
system and GeniPASS® QC Utility ensures the display conforms with AAPM,
DIN, JIS and IEC standards all the time.
Functions:
• Luminance testing
• DICOM calibration
• Luminance auto-dimming
• GeniSPOT® self-diagnosis
• Five-point testing of uniformity
GeniSPOT®DICOM
Calibration
Smart Software OSD
The smartOSD is an intelligent and easy to use proprietary On-Screen
Display (OSD) software especially designed for the IEI display monitors.
It delivers excellent performance and flexibility over hardware OSD
solutions in the monitor unit. Users can adjust the monitor with the
smartOSD in a Windows® environment from the remote system instead of
adjustment from front panel.
The smartOSD allows some functions as below :
• Power on/off • Luminance selection
• Graphic card mode selection • GrayBoost® on/off
• DICOM Look-Up-Table selection • Monitor Information
Specifications
PACSmate® Model MMD-3213M
Drive System a-Si TFT active matrix
Display area (H x V) 433.2mm x 324.9 mm
Diagonal size of display 54cm (21.3 inches)
Resolution (H x V) 2048 x 1536
Pixel pitch (H x V) 0.2115mm x 0.2115 mm
Sub-pixel pitch (H x V) 0.0705mmx 0.2115 mm
Pixel format 1 pixel consists of 3 sub-pixels, LCR vertical stripe
Luminace-max. 800cd/m 2
Max. luminance (calibrated) 600cd/m 2
White chromaticity Wx, Wy=(0.280, 0.304) (typical)
Contrast ratio 700:1 (typical)
Viewing angle Right 85°, Left 85°, Up 85°, Down 85° (10:1 contrast)
Response time (Ton + Toff) 35ms (typical)
Polarizer surface/ hardness Antiglare/ 2H
Backlight 6 CCFL
Default gamma DICOM
Grayscale Simultaneous 12-bit
LUT 12-bit
Signal input Dual link DVI-D (digital)
USB 2.0 hub 1 upstream/ 2 downstream
Membrane keypad Yes
Power adapter Input voltage range 100VAC - 240VAC
Power adapter Input frequency
range
47Hz-63Hz
Power adapter Input AC current 1.25A-0.5A
Power adapter Power output 12VDC, 8.33A, 100W (max)
Physical dimensions (H x W x D)
With stand: 520mm x 380mm x 274 mm (portrait)
Without stand: 485mm x 380mm x 100 mm (portrait)
Adjustable height range (with
stand)
Portrait: 520mm~590 mm
Landscape: 465mm~535 mm
Operating temperature 10°C~40°C
Storage temperature -20°C~60°C
Operation relative humidity 30% ~75% Non-condensing
Storage/ Transportation
Relative humidity
10% ~95% Non-condensing
Part No. Description
MMD-3213M
3 megapixel, 21.3" monochrome LCD
monitor includes GeniSPOT® and
GeniPASS® calibration kit
3MP
