545

* All specifications and photos are subject to change without notice.

www.axiomtek.com

Fanless

Dimensions

Ordering Information

Optional Accessories

Introduction

Specifications

22" TFT Multi-function Medical Grade Touch LCD Monitor

MMT225

* Specification and certifications are based on options and may vary.

The MMT225 is a slim medical grade touch LCD monitor, which adopts 22-inch 300
nits WSXGA LCD display. Especially designed for medical environment, it adopts
IPX1 waterproof design which protects the entire system from outside liquid,
preventing system from crashing. This fanless unit features only 69mm in
thickness and is outfitted with user-friendly OSD for easy data entry. To ensure
medical operation safety, The MMT225 complies with UL60601-1/EN60601-1, CE
and FCC Class B certifications. By supporting lock-type medical adaptor plug, this
slim medical grade monitor fits all kinds of harsh environments. Its high
brightness display also incorporates multi-signal inputs of VGA, S-video, video,

DVI, audio-in and 3 USB ports (1 slave, 2 host) to connect with a wide
range of medical equipments. Its optional 1.3 mega pixels camera and
built-in microphone/2W stereo speakers enable remote communication.
In addition, Bluetooth is an available option for wireless connection with
medical peripheral devices. To improve patient treatment accuracy, the
optional RFID (radio frequency identification) offers an efficient way to
validate patient identification and give proper treatment.

VM-101 VESA ARM (clamp type)

E202003329

E202003329

VM-105 VESA ARM (wall mount type)

22" stand kit

Plastic ABS

Mounting

Mounting

Desktop stand, wall mounting or VESA

FPMPMI mounting (video electronics standards association

Flat Panel monitor physical mounting interface)

Display Type

22" TFT LCD

Max. Resolution

1680 x 1050

Max. Colors

16.7M

Active Area (mm)

473.76 x 296.1

Pixel Pitch (mm)

0.282 x 0.282

Response Time

20ms

Backlight

CCFL

Backlight MTBF

50,000 hrs

Viewing Angle (H/V) 178°/178°

Contrast Ratio

1000 (TYP.)

Brightness (cd/m

2

)

300 nits

Display Control

Display Control

OSD (on screen display)

VGA 640 x 480 (60/72Hz), VGA 640 x 350 (70Hz),

VGA 720 x 400 (70Hz), XGA 1024 x 768 (60/70/75Hz),

SVGA 800 x 600 (60/72Hz)

SXGA 1280 x 1024 (60/70/75Hz)

WSXGA 1680 x 1050 (60/70/75Hz)

(

)

VGA Video: R.G.B Analog 0.7v Peak-to-Peak
Video
S-Video
DVI
Touchscreen: USB interface
Audio-in
3 USB (1 slave, 2 host)

I/O Connector

I/O Connector

1 x USB for touchscreen control
1 x VGA input
1 x RCA video
1 x S-Video for video
1 x DVI
1 x lock-type DC power input
1 x Audio-in
2 x USB (2 host)
Lock type external 24V AC/DC medical grade power
adapter

Touchscreen

Touchscreen

Thickness

Resistive: 3.2mm

Light Transmission Resistive: 80%
Power

Resistive: +5V @ 100mA

Consumption
Touch Life

T

T

Resistive: 35million touches
Controller interface:
USB connector

22" TFT medical grade monitor with USB 2.0 interface

resistive touchscreen

MMT225-CO

22" TFT medical grade monitor with USB 2.0 interface

resistive touchscreen, Combo and 1.3 mega pixels

camera

Features

22" TFT 300 nits WSXGA+ LCD

Water/dust-proof design (front bezel: IP65, full

enclosure: IPX1)

Built-in internal microphone/2W stereo speakers

Optional Bluetooth reader/1.3 mega pixels camera

combo/RFID

Supports multi-signal inputs: VGA, S-video, video,

DVI, Audio-in, 3 USB ports (1 slave, 2 host)

Supports wall mount, desktop stand and VESA FPMPMI

UL60601-1, EN60601-1, CE, FCC class B certified

Supports NTSC, PAL

Dimensions

Dimensions

573.5 mm (22.58") (W) x 68.5 mm (2.69") (D)

x 399 mm (15.71") (H)

8.48 kg (18.69 lb)/13.02 kg (28.7 lb)

Environment

Environment

Operating temperature: 0°C ~ +45°C (32°F ~ 104°F)

Storage temperature: -20°C ~ +60°C (-4°F ~ +140°F)

Relative humidity: 20% ~ 90%, non-condensing

UL60601-1, EN60601-1, CE, FCC class B

IPX1

IP65

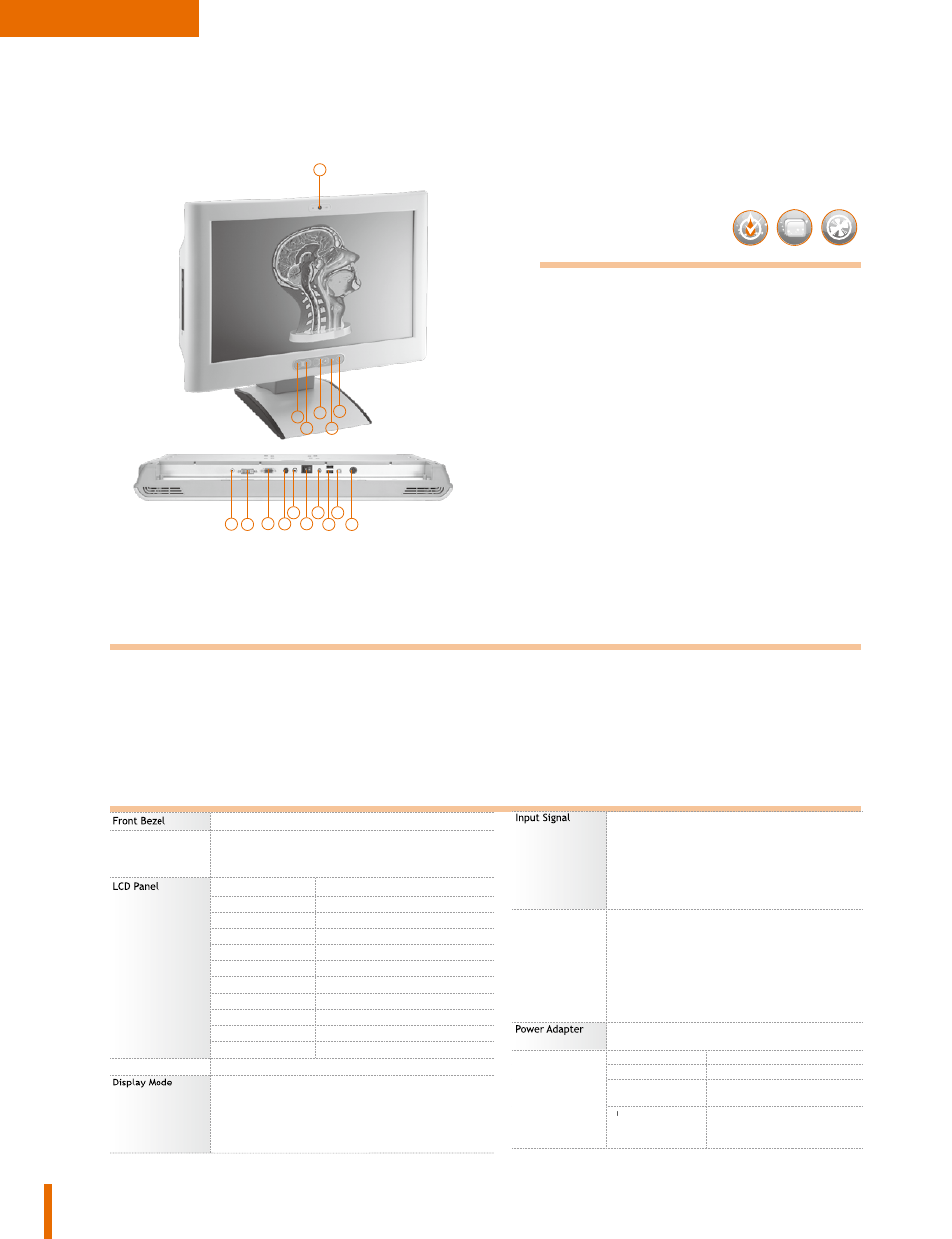

2

4 6

1

3

5

7 8

9 10

11

12

13 15

14 16

1. Camera

2. Auto-adjusted/Return

3. Menu

4. SEL+/SEL-

5. Power LED

6. Monitor switch

7. Audio-out

8. DVI

9. VGA

10. S-video

11. Video

12. Power switch

13. Audio (Mic-in)

14. USB 2.0 x 2

15. USB (type B)

16. DC-in power connector
