Impulse MMD-2213M - Manual (Page 2)

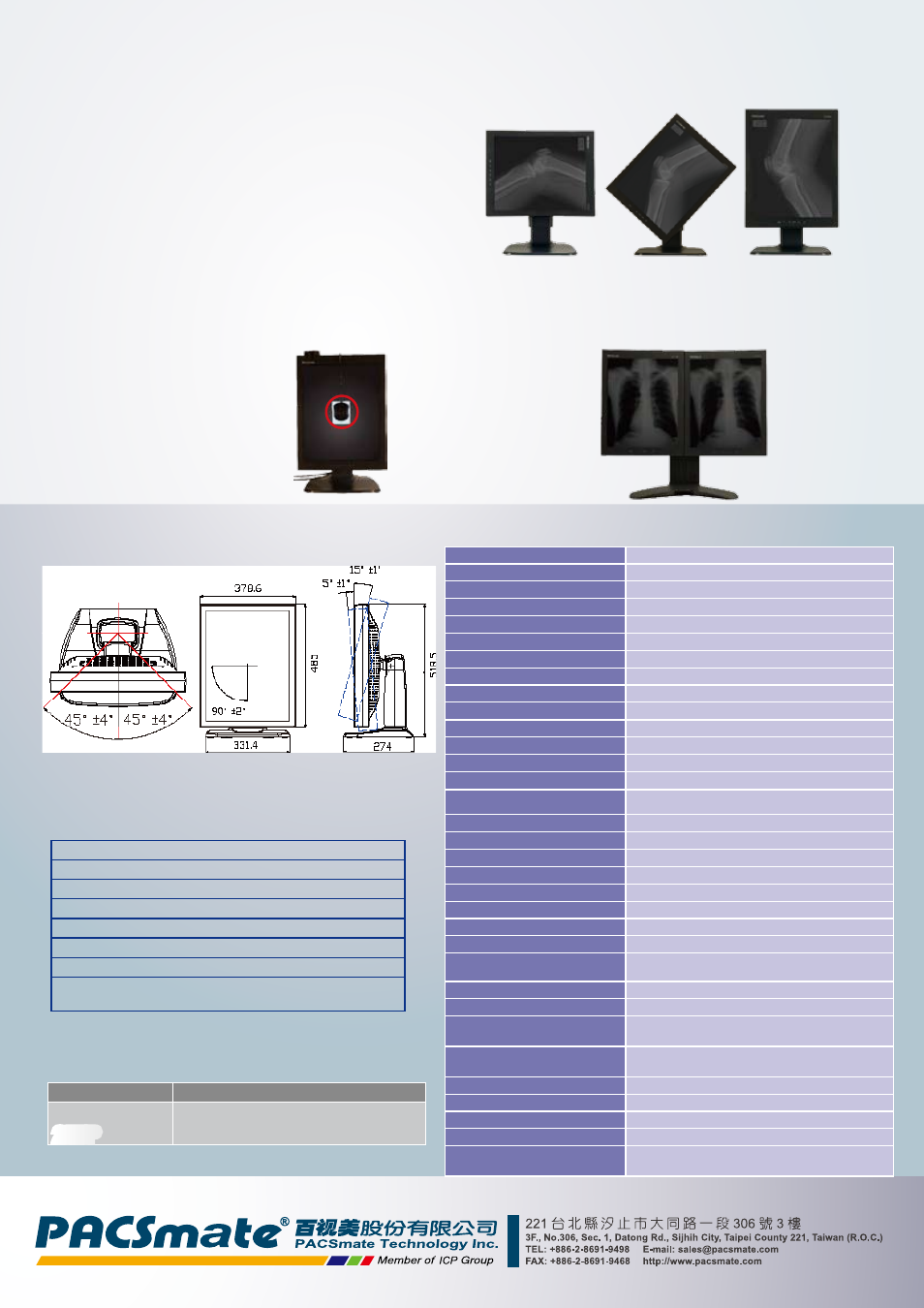

Dimensions
Packing List
PACSmate® Series medical LCD monitor
Monitor stand
Power Cord (US x 1, EU x 1)
Power Adapter
Dual-link DVI-D Signal Cable
USB Cable
GeniSPOT® USB Calibrator
Utility CD-ROM
(for user's manual, software utility, and GeniPASS® QC software)
Ordering information
Ergonomic Design
Narrow bezels enable seamless side-by-side viewing for diagnostic
applications.
Pairing Monitors
PACSmate provides a pair matching service for dual-head display
applications, allowing image comparison for diagnostic practices.
GeniSPOT® & GeniPASS® QC Solution
Packed in every PACSmate monitor, the GeniSPOT® 3-in-1 calibration
system and GeniPASS® QC utility ensures the display conforms with AAPM,
DIN, JIS and IEC standards all the time.
Functions:
• Luminance testing
• DICOM calibration
• Luminance auto-dimming
• GeniSPOT® self-diagnosis
• Five-point testing of uniformity
GeniSPOT®DICOM
Calibration
Smart Software OSD
The smartOSD is an intelligent and easy to use proprietary On-Screen
Display (OSD) software especially designed for the PACSmate display
monitors. It delivers excellent performance and flexibility over hardware
OSD solutions in the monitor unit. Users can adjust the monitor with the
smartOSD in a Windows® environment from the remote system instead of
adjustment from front panel.
The smartOSD allows some functions as below :
• Power on/off • Luminance selection
• Graphic card mode selection • GrayBoost® on/off
• DICOM Look-Up-Table selection • Monitor Information
Specifications
PACSmate® Model MMD-2213M
Drive System a-Si TFT active matrix
Display area (H x V) 433.2mm x 324.9 mm
Diagonal size of display 54cm (21.3 inches)
Resolution (H x V) 1600 x 1200
Pixel pitch (H x V) 0.270mm x 0.270 mm
Sub-pixel pitch (H x V) 0.090mm x 0.270 mm
Pixel format 1 pixel consists of 3 sub-pixels, LCR vertical stripe
Luminace-max. 1000cd/m2
Max. luminance (calibrated) 600cd/m2
White chromaticity Wx, Wy=(0.280, 0.304) (typical)
Contrast ratio 700:1 (typical)
Viewing angle Right 85°, Left 85°, Up 85°, Down 85° (10:1 contrast)
Response time (Ton + Toff) 35ms (typical)
Polarizer surface/ hardness Antiglare/ 2H
Backlight 6 CCFL
Default gamma DICOM
Grayscale Simultaneous 12-bit
LUT 12-bit
Signal input Single link DVI-D (digital)
USB 2.0 hub 1 upstream/ 2 downstream
Membrane keypad Yes
Power adapter Input voltage range 100VAC - 240VAC
Power adapter Input frequency
range
47Hz-63Hz
Power adapter Input AC current 1.25A-0.5A
Power adapter Power output 12VDC, 8.33A, 100W (max)
Physical dimensions (H x W x D)
With stand: 520mm x 380mm x 274 mm (portrait)
Without stand: 485mm x 380mm x 100 mm (portrait)
Adjustable height range (with
stand)
Portrait: 520mm~590 mm
Landscape: 465mm~535 mm
Weight (with stand) 13.2kg
Operating temperature 10°C~35°C
Storage temperature 0°C~45°C
Operation relative humidity 30% ~75% Non-condensing
Storage/ Transportation
Relative humidity
10% ~95% Non-condensing
Part No. Description
MMD-2213M
2 megapixel, 21.3" monochrome LCD
monitor includes GeniSPOT® and
GeniPASS® calibration kit
2MP
