Marine Bridge System Display
Marine Bridge System Display
Note: All Specifications are subject to change without prior notice!

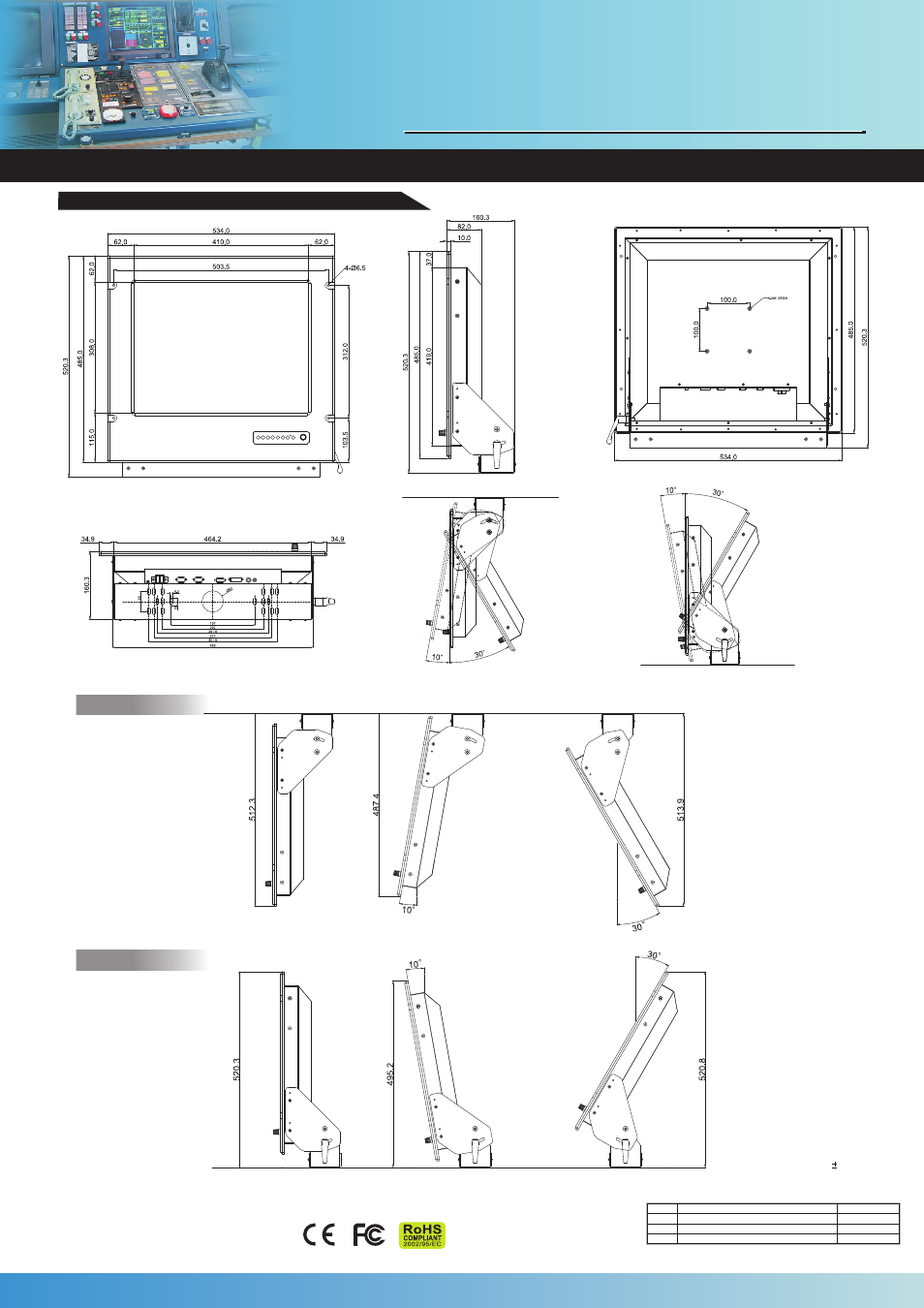

Mechanical Design with Robust Bracket (options)
STAND ANGLE
ROOF MOUNT
Note: this is a simplified drawing and some components are not marked in detail. Please contact our sales representative if you need further product information.
*
Certification and Approvals
:
CE, FCC
20.1"
20.1"
STAND ANGLE
ROOF MOUNT
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
BACK VIEW
All Dimensions are 0.5 mm
Model # R20L100-MRA2
Rev.
Reasons
Revised Date
1.0
Add holes for brackets on back cover
Nov-17-08
*
Extra charge is required for back covers with bracket
holes for products purchased before end of Nov. 08'
*
Revised Date : 03/02/2011
1.1
Spec change
Aug-06-10
1.2
Spec change
Mar-02-11
