VMT6008

Note:

If the case is connected with earth potential at the provided PE contact (e.g. by connecting
the PE contact with the device plug), the electrical insulation is no longer given. This also
applies if the device is installed by using a metal retainer clip.

If you want to have the device electrically insulated from the power supply, you
have to use a method of installation that ensures appropriate insulation.

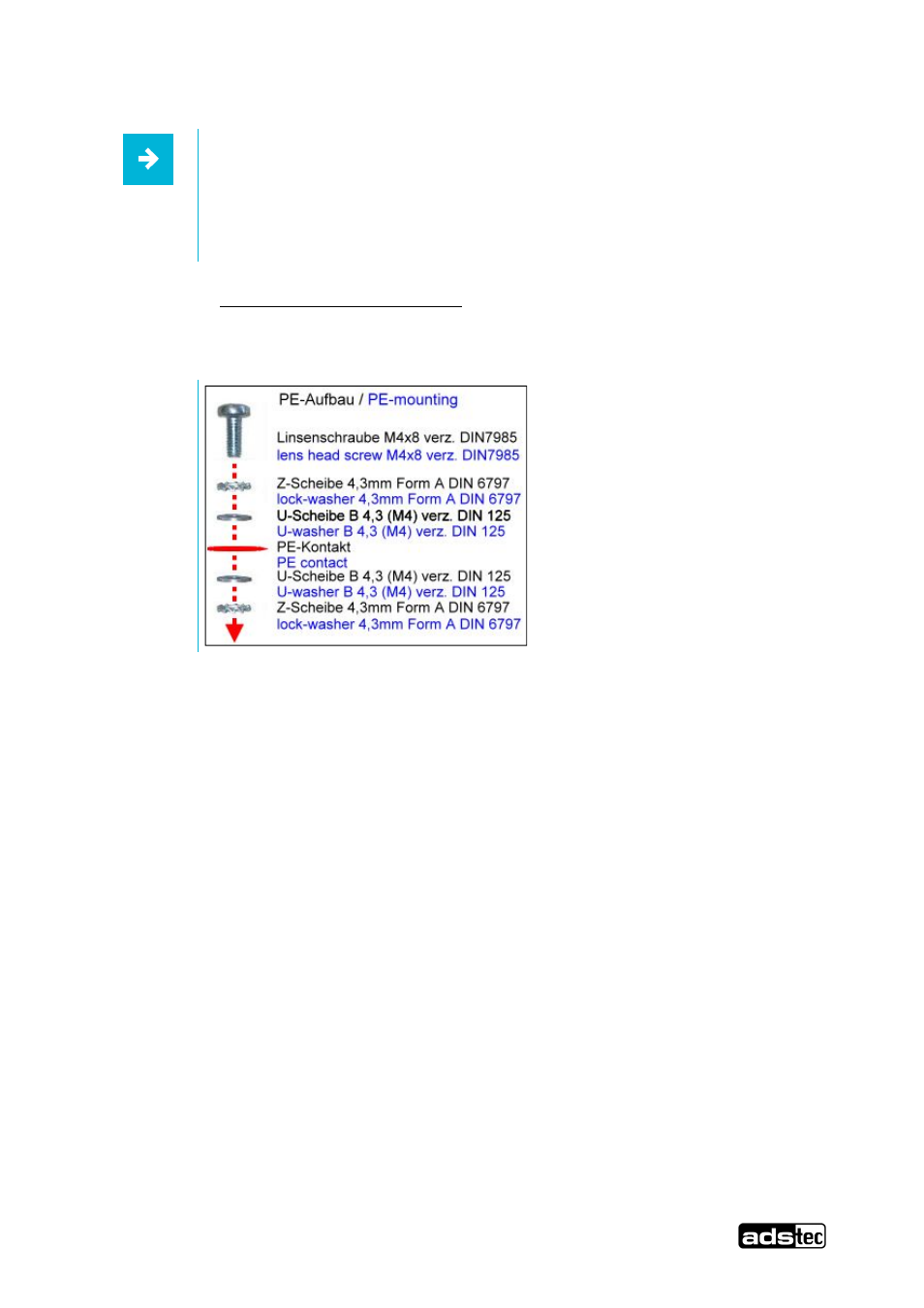

How to proceed if a PE system is used:

You must adhere to the following figure in order to ensure a correct installation of the PE
system.

Abb. 13:
