VMT6008

Note:

If the case is connected with earth potential at the provided PE contact (e.g. by connecting
the PE contact with the device plug), the electrical insulation is no longer given. This also
applies if the device is installed by using a metal retainer clip.

If you want to have the device electrically insulated from the power supply, you
have to use a method of installation that ensures appropriate insulation.

Pos: 18 /Datentechnik/Inbetriebnahme/Reihenfolge der Inbetriebnahme/Reihenfolge der Inbetriebnahme für VMT 60xx-Serie @ 1\mod_1222073159179_6.doc @ 4100 @

4.2 Order of Steps during Commissioning

Removing the Lid from the Service Slot

Loosen the undetachable screws on the service slot cover by using a Torx Tx10 wrench and subsequently remove
the service slot cover from the device.

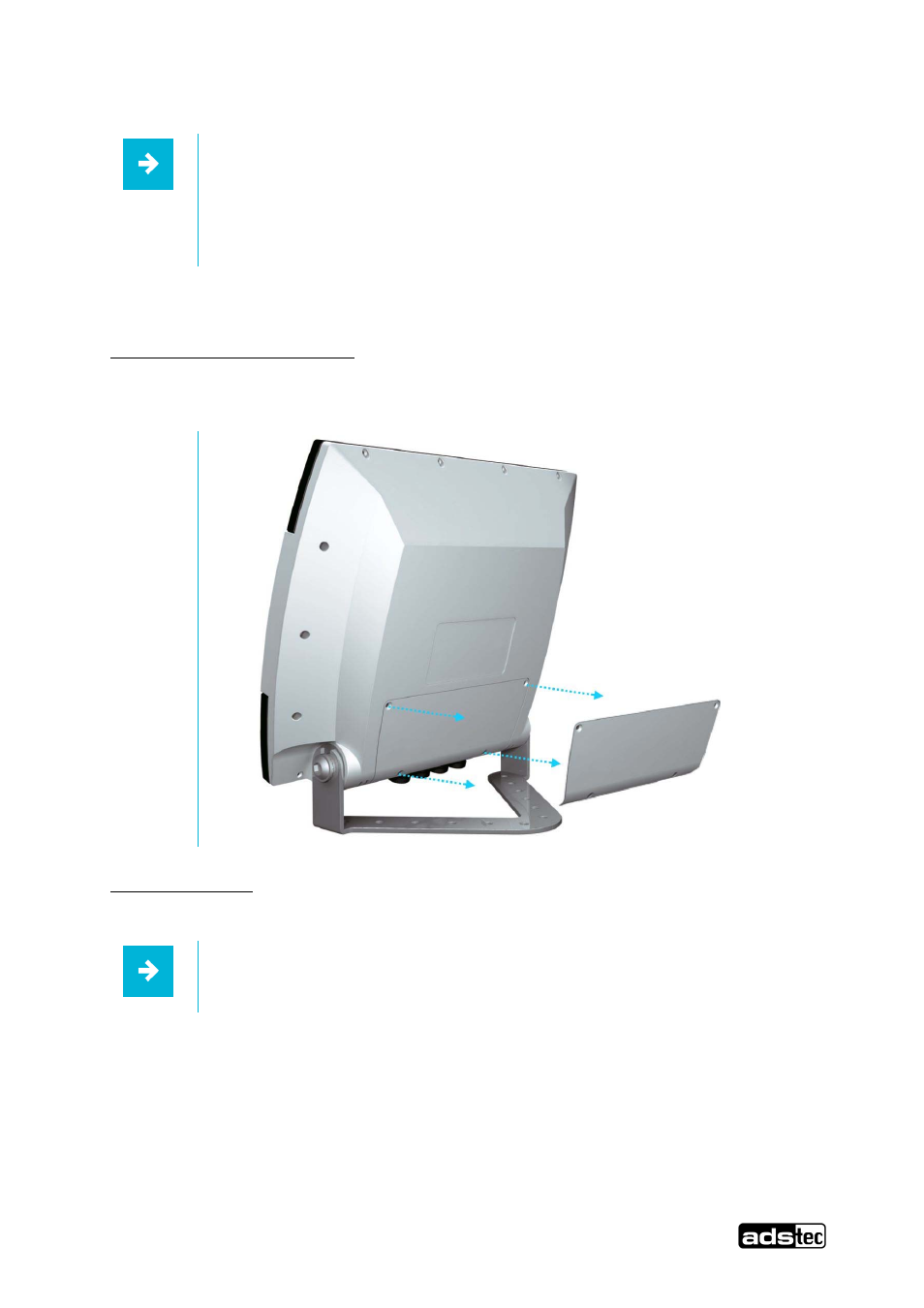

Abb. 3:

Connecting The Cables

Please connect all required cables. Use grommets in this case, in order to install the cables correctly and to avoid
any potential damage to the cables.

Note:

A cable installation kit, which includes grommets for several cable diameters, is
available as an option.
