Part No. Description
TANK-101B-R10/D525/1GB
Extend tempeture fanless embedded system with dual
core Intel® Atom™ Processor D525 1.8GHz CPU with
two isolated CAN, one isolated Serial Port, 1GB DDR3
memory onboard, 9~36V DC in, Pantone 287C + Cool
Gray 2C, -20°C ~ 60°C, RoHS
TANK-101B-R10/N455/1GB
Extend tempeture fanless embedded system with Intel®
Atom™ Processor N455 1.66GHz CPU with two isolated
CAN, one isolated Serial Port, 1GB DDR3 memory
onboard, 9~36V DC in, Pantone 287C + Cool Gray 2C,
-20°C ~ 70°C, RoHS
TANK-101BW-R10/D525/1GB
Fanless embedded system with dual core Intel® Atom™
Processor D525 1.8GHz CPU with two isolated CAN, one
isolated Serial Port, built-in 802.11b/g/n wireless, 1GB
DDR3 memory onboard, 9~36V DC in, Pantone 287C +
Cool Gray -10°C ~ 50°C, RoHS
DK-84MB DIN mount kit for embedded system, black, RoHS
Embedded OS support
TANKCF-101B-XPE-1GB
Windows® XP Embedded OS image, for TANK-101B, with
1GB CompactFlash memory card, RoHS
* For other CompactFlash® capacity, please contact with IEI for customization.
1 x SATA HDD drive cable (P/N: 32801-004900-100-RS)
1 x 60W 12V power adaptor (P/N: 63000-FSP060DBAB1552-RS)
1 x Power cord 2 x Wireless antenna (For wireless model only)
1 x QIG 2 x Wall mount brackets
1 x Driver CD 1 x Screw set
Model Name TANK-101B
Platform Intel®
Chassis
Color Cool Gray+Blue
Dimensions 248 x 153 x 44 mm
Chassis Construction Aluminum Alloy with heavy duty metal
Motherboard
Processor CPU
Intel® Atom™ D525 processor 1.8 GHz /
1 MB L2 cache
Intel® Atom™ N455 processor 1.66 GHz/
512 KB L2 cache
Chipset ICH8M
System Memory
1 GB DDR3 memory on board
One expansion 204-pin DDR3 slot
(Support up to 2GB)
Storage
Hard Drive 1 x 2.5" SATA HDD space
Compact Flash 1
System
Function
USB 2.0 4
Ethernet 2 x Realtek 8111E PCIe GbE
RS-232 3
RS-232/422/485
RS-232/422/485
Default RS422 with isolation
Display 1 x VGA
Resoluiton
Up to 2048 x 1536@60 Hz (D525),
1400 x 1050@60Mhz (N455)
Audio 1 x Mic in, 1 x Speaker out
Other 2 x CAN with isolation
Wireless 1 x 802.11 b/g/n
Expansions
1 x PCIe mini card slot (reserve for wifi
module, optional for IEI mini DOM)
Power
Power Input 9~36 V DC
Power consumption
[email protected] (Intel® D525 1.8G GHz with 1MB
L2 Cache, DDR3 1GB)
Reliability
Mounting DIN mount (optional), wall-mount
Operating Temperature
-20°C ~ 60°C
(D525 model with CompactFlash®/SSD )
-20°C ~ 70°C
(N455 model with CompactFlash®/SSD )
*Ambient air speed pre IEC-68-2-2 standard
-10°C ~ 50°C with WI-FI
Operating Shock Half sine wave 3G; 11ms 3axis
Operating Vibration
Meet
MIL-STD-810F 514.5C-1 with SATA HDD
MIL-STD-810F 514.5C-2 with SATA SSD/CF
Weight (Net/Gross) 2.1 kg / 3.9 kg

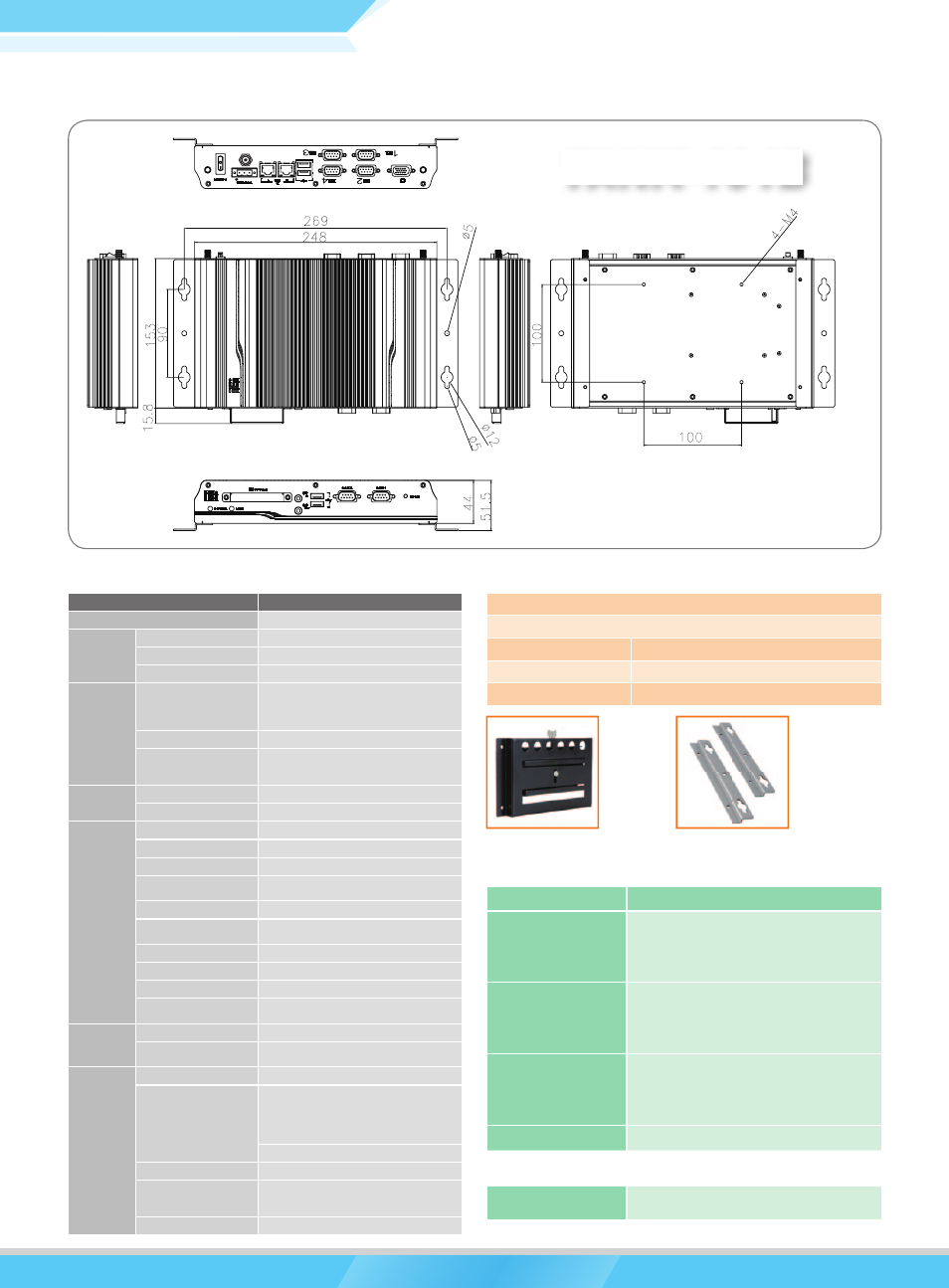

Dimensions
(Unit: mm)
Specifications
Ordering Information
Packing List
TANK-101B-D525/N455-2011-V11
Wall Mount bracket
DK-84MB
(optional)
