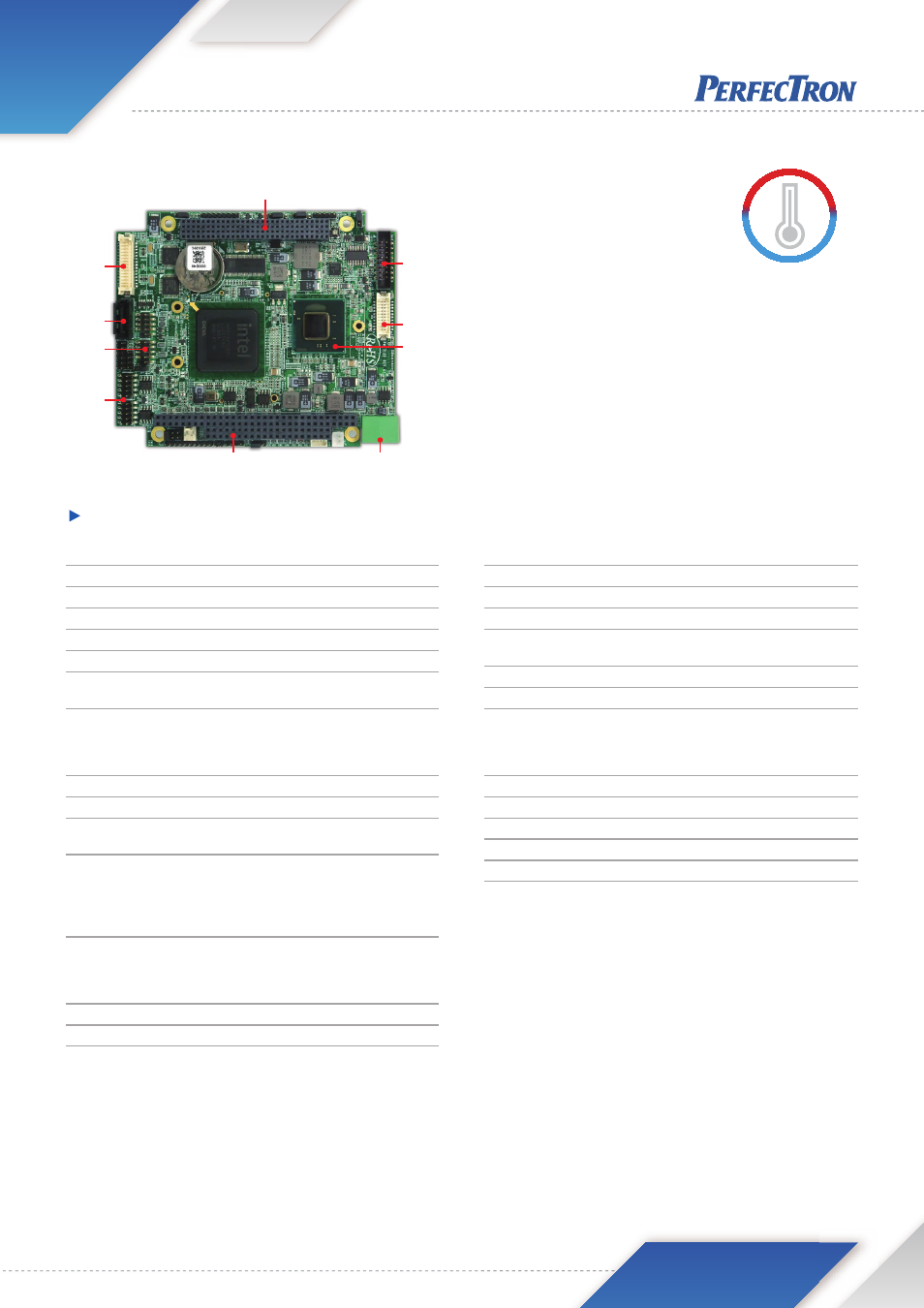

OXY5415A
Intel® Pineview N455 PC/104+ Module, Wide Temp. -20 to 70°C
• Supports Intel® Atom™ N455 CPU onboard
• VGA/LVDS dual display
• SATA and CFast socket
• Dual GbE LAN
• PCI-104 and PC/104
• Wide operating temp. -20 to 70°C
Main Features
Specifi cations
PC/104
COM
SATA
USB
LAN VGA
LVDS
PCI-104
Power
Intel®
D525/N455
-20°C~+70°C
SUPPORT
System
CPU Type Intel® Atom™ N455 1.66 GHz
Chipset Intel® ICH8M
Memory Type 1 x 204-pin SO-DIMM DDR3 800 MHz up to 2 GB
BIOS AMI® BIOS
Super I/O SMSC SCH3112
Watchdog 1-255 sec. or 1-255 min. software programmable,
can generate system reset
Expansion Slot PC/104, PCI-104
Display
Chipset Integrated Intel® GMA3150 GFX Render core
VGA Yes (Max. resolution 2048 x 1536)
LVDS Supports single channel 18-bit LVDS
(Max. resolution 1366 x 768)
Dual Independent
Displays Capability VGA+LVDS
Audio
Codec Realtek ALC269 High Defi nition Audio Codec
Ethernet
Chipset 2 x RTL8111DL GbE LAN
WOL Yes
Boot from LAN Yes for PXE
Internal I/O
SATA 1 x SATAII (3 Gb/s)
SSD 1 x CFast socket
USB 4 ports by 2 x 5-pin header
COM 2 ports by 2 x 5-pin header
COM2 supports RS232/422/485
VGA 2 x 8-pin header
LAN 2 x 15-pin header
LVDS 20-pin connector
Mechanical and Environment
Form Factor PC/104+
Power type 5V DC-in
Dimension 96 x 115 mm (3.8" x 4.5")
Operating Temp. -20 to 70°C
Storage Temp. -20 to 85°C
Relative Humidity 10% to 90%, non-condensing
