I N S T A L L A T I O N

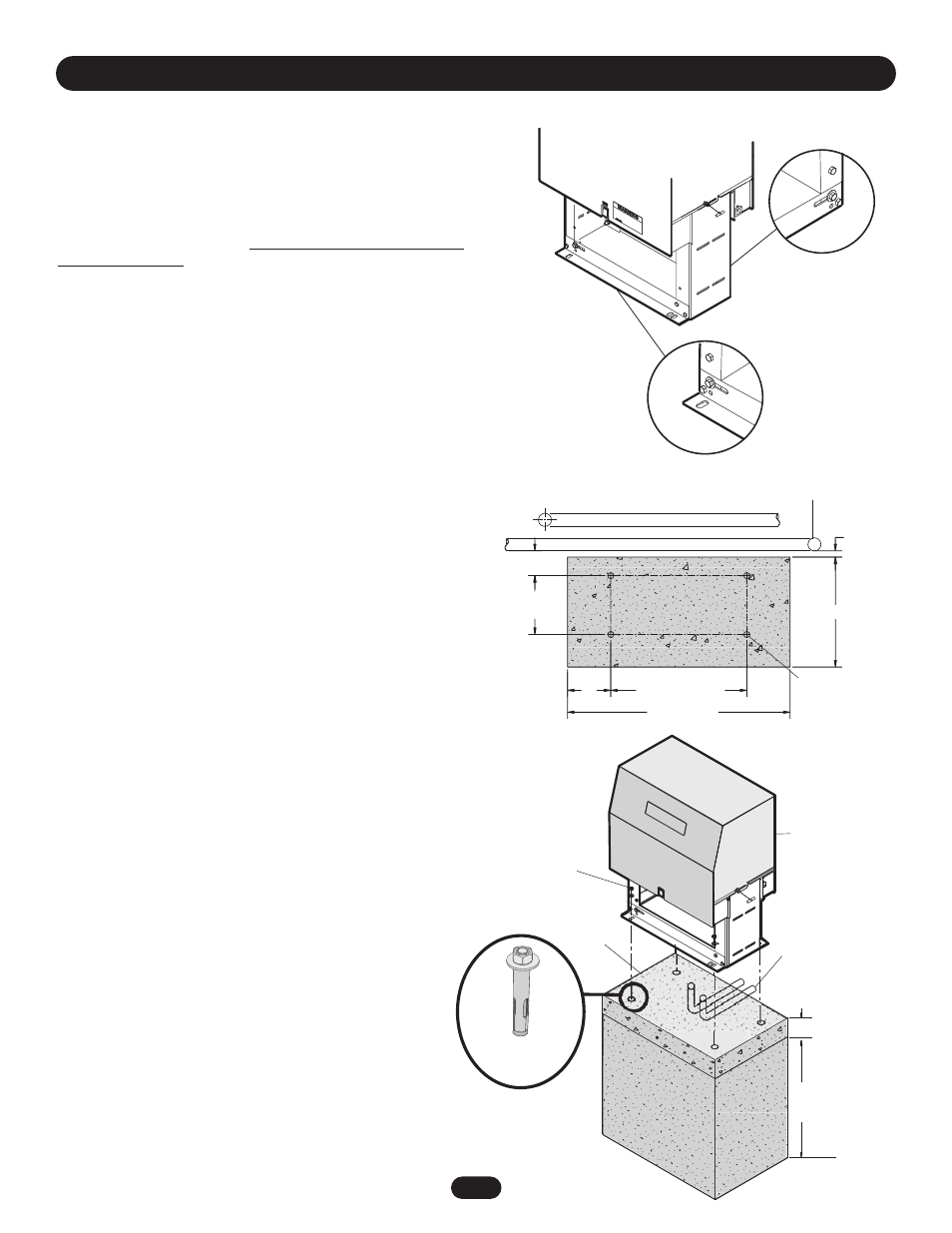

PAD MOUNTING
RETRO-FIT INSTALLATION
The operator is shipped from the factory with the lower mounting
angles configured out (Figure 1). If you have pad constrictions,
either angle can be unbolted and reversed to ‘angle in’.
NOTE: If you are replacing an SL540/SL570 and wish to use the
same pad mounting hardware, the gate side mounting angle must
be installed angle in.
NEW INSTALLATION
Concrete Pad Preparation:
1. Lay out concrete pad. (Figure 2).
2. Locate electrical conduit, as required, prior to pouring
concrete.
3. Pour concrete pad.
4. Secure operator (Figure 3) to the concrete pad using four 1/2"
concrete anchors (not provided).
Figure 1
Figure 2
Figure 3
Angle In
Angle Out
Fence In
Rear of Gate
or Back Frame
1" (2.5 cm)
18" (45.7 cm)
Concrete
Anchor Holes
21-1/8" (53.7 cm)
36" (91.4 cm)
10-7/8"
(27.6 cm)
4" (10.2 cm)
Drive and Idler
Sprocket Toward
Gate Side
Power and Control
Wiring Should Be Run
In Separate Conduit
2" to 4"
(5.1 to 10.2 cm)
Above Grade
Depth Required By
Local Codes or
Below Frost Line
1/2" Concrete
Anchors
(4 Required)
Concrete Pad
Using Suitable Hardware
To Secure Operator To
Concrete Anchors
