10

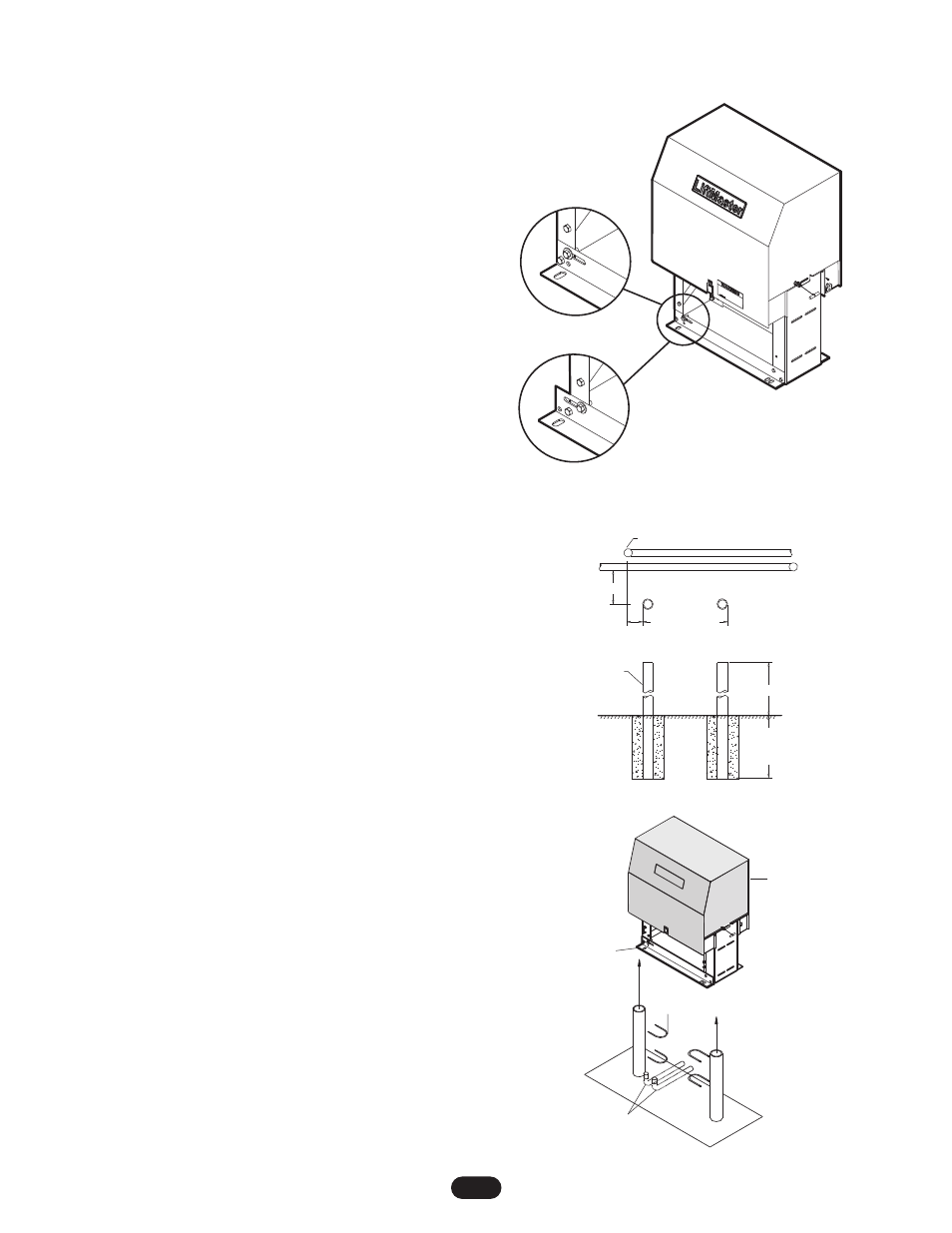

POST MOUNTING
RETRO-FIT INSTALLATION
The operators come from the factory configured to mount to an
inside the frame post mount dimension of 26" (outside to outside
of posts). The frame comes slotted to accommodate posts
24-1/8" to 26", outside to outside (Figure 1).
NOTE: If you are replacing a SL540/SL570, the frame will require
adjustment to 24 1/8".
NEW INSTALLATION
1. Locate and anchor two posts made of 3" (7.6 cm) outer
diameter heavy walled pipe. Posts should be parallel and
square to the gate (Figure 2).
2. Locate electrical conduit, as required, prior to pouring
concrete.
3. Secure operator (Figure 3) to posts using four 3" (7.6 cm)
U-bolts and hardware provided.
24-1/8" (61 cm)
26" (66 cm)
Figure 1
Post to Post Adjustment
Figure 3
Figure 2
End Post
Fence Line
26" (66 cm)
Outside To Outside
14" (35.6 cm) Min
Ground Level
Depth As Required By
Local Codes or Below
Frost LIne
3" (7.6 cm) Outside
Diameter Heavy
Wall Fence Pipe
6" (15.2 cm) Min
8.5" (21.6 cm)
Drive and Idler
Sprocket Toward
Gate Side
Angle
Bracket
3" (7.6 cm) U-bolt
(4 required)
Power and Control
Wiring Should Be Run In
Separate Conduit
