36

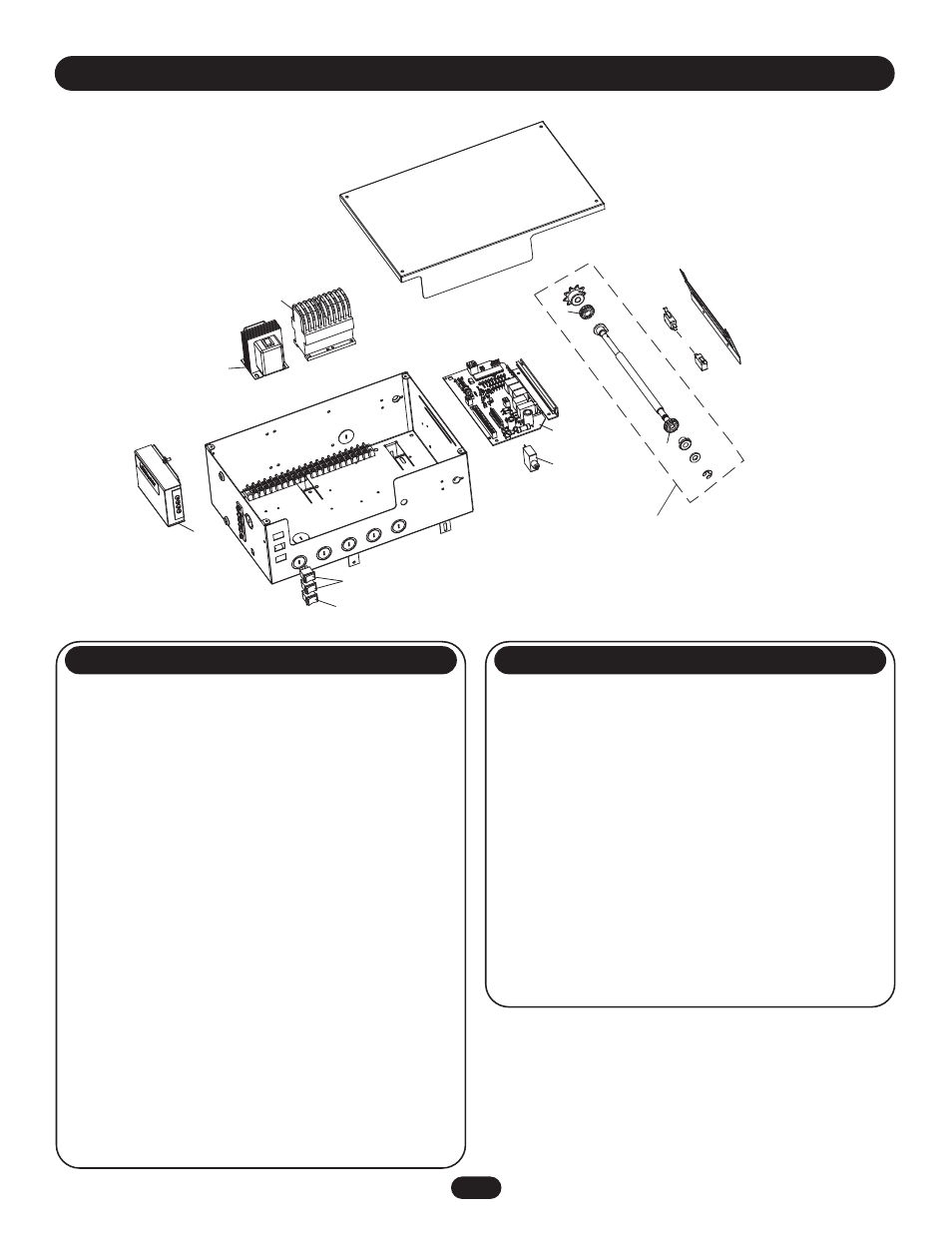

E L E C T R I C A L B O X
ITEM PART # DESCRIPTION
1 K001A5566 Control board
2 312HM Radio - 315 MHz
3 13-10024 Limit nut
4 23-10041 Limit switch
5 03-8024-K Contactor
6 23-34822 Open/close switch
7 21-3260-1 Transformer -
115/208/230/460Vac/60VA
21-10298-1 Transformer - 575Vac/100VA
8 23-30716 Stop switch
VARIABLE PARTS
9 25-2006 Overload - 6 AMP - SL575-50-21,
SL575-50-81
25-2008 Overload - 8 AMP - SL575-75-21,
SL575-75-81, SL575-100-21,
SL575-100-81
25-2010 Overload - 10 AMP - SL575-50-11
25-2015 Overload - 15 AMP - SL575-100-11
25-4002-SK Overload - 1.8 to 2.6 AMP -
SL575-100-53
(NOT SHOWN)
K74-18379 RPM Sensor (Hall effect)
INDIVIDUAL PARTS
2
3
3
1
9
6
8
5
7
4
K1 (K72-34818)
ITEM PART # DESCRIPTION
K1 K72-34818 Limit shaft kit
Complete with: Limit shaft, limit
nuts, limit bearings, limit sprocket,
shim washers, compression ring,
roll pin and e-ring.
*To order a complete replacement electrical box kit contact
technical support at 1-800-528-2806.
SERVICE KITS
*Non stocked item. Please allow additional delivery time.
