www.ramsetinc.com
RAMSET
6
RAM 302
GROUND LEVEL
ELECTRICAL
CONDUIT FOR
MASTER/SLAVE
DEDICATED CONDUIT
WITH 15 amp BREAKER
1/2” REDHEAD
ANCHOR BOLTS 4X
INDEPENDENT CONDUIT
FOR LOW VOLTAGE
WIRES
18”
18”
24”
15”
ALLOW 2” ABOVE
GROUND LEVEL
MINIMUM FOR
LEVELING.

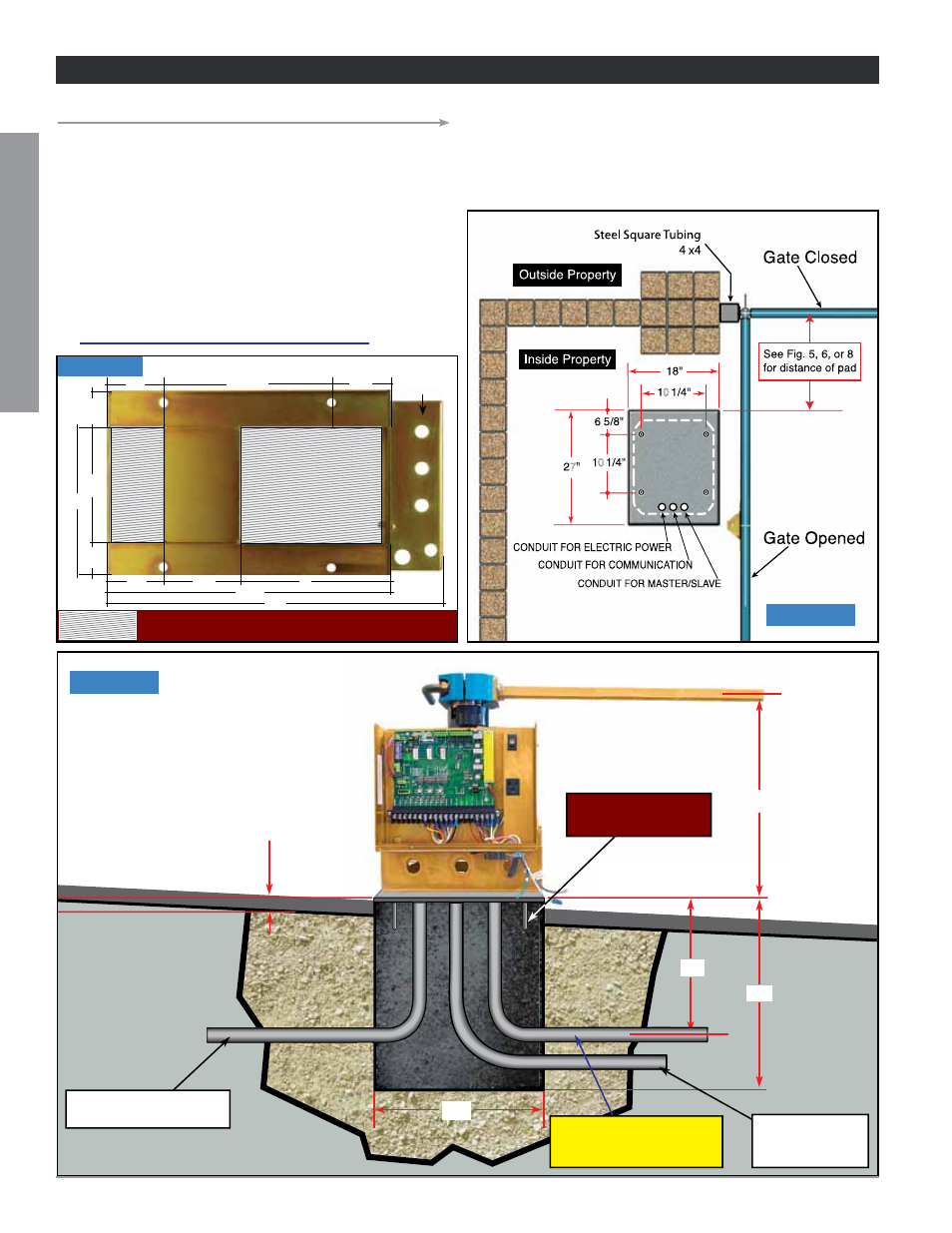

CONCrETE pAd CONSTruCTiON:
Dimensions given for the pad are based on soil bearing shear of 2000 P.S.F. These figures may have to be
adjusted depending on local soil conditions.
1. Construct form for mounting pad according to dimensions shown in Figure 1 and 2.
2. Locate mounting pad according to dimensions
given in illustration.
3. Level top edge of form.
4. Set reinforcing bars and wire mesh.
5. Allow pad to cure for 48 hours, and remove forms.
6. Note: conduits 6” above concrete pad.
iNSTALLATiON SpECiFiCATiONS
Figure 2
Footprint
9 ” 47/8 ”
173/8 ”
PCB
31/4” off the
ground
21 ”
103/8 ” 31/2 ” 31/2 ”
31/2 ”
25/16
”
25/16
”
73/8
” 12
”
Open areas to run conduit.
0
0
7
Figure 1
