RAM 302
RAMSET
www.ramsetinc.com 11

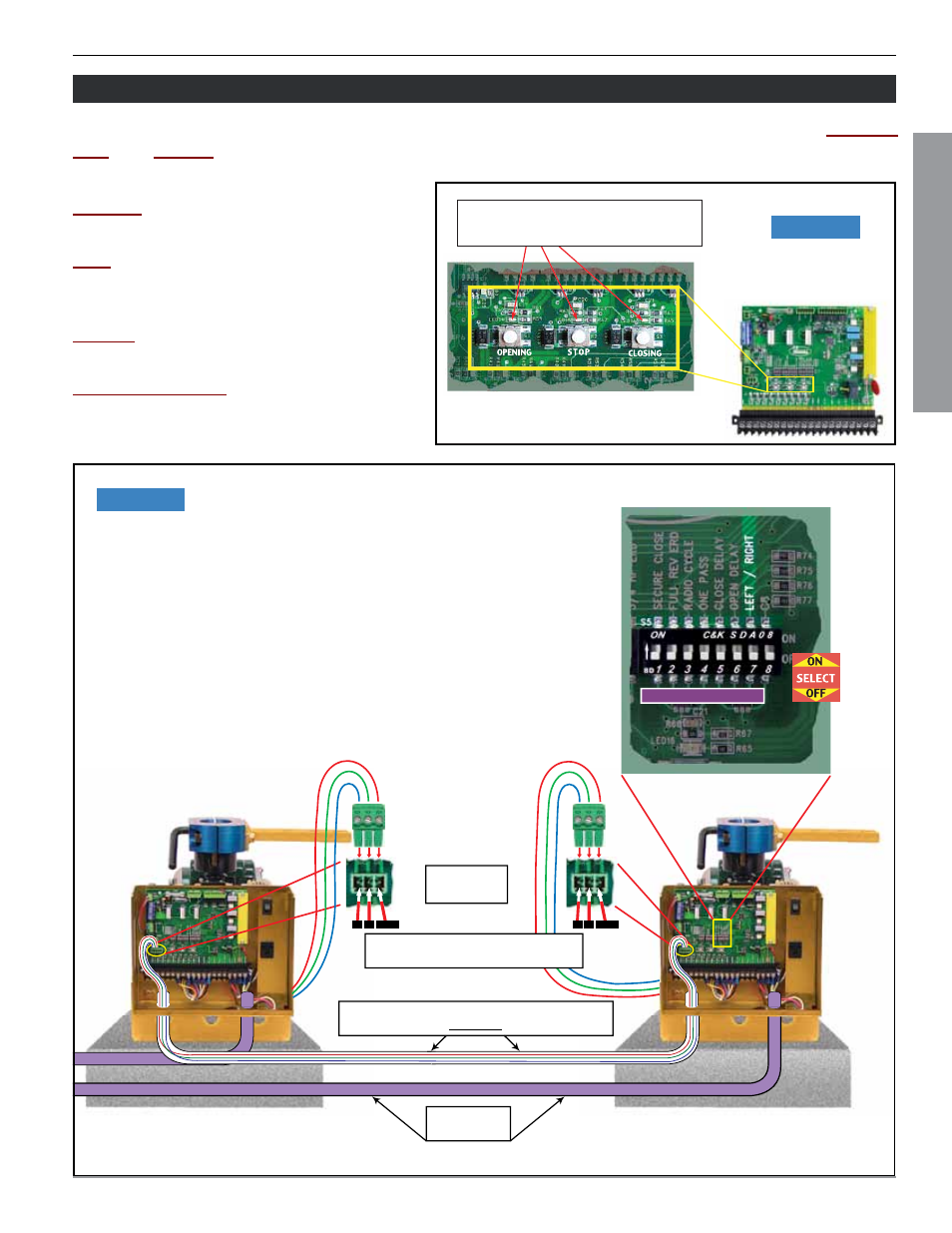

Dip Switch “C”
Use jumper
JP7 to JP7
Conduit for
power
Use 3-stranded, shielded wires
(not supplied) from Master to Slave.
Route low-voltage wires for Master/Slave
in a conduit separate from power.
A B COM A B COM
L.E.D.’s light up when Opening,
Closing or Stopped
“Intelligate” Control Board
puShBuTTON CONTrOLS
Three pushbuttons are located under the dip switches for operation of the gate (see Figure 11). The opening,
stop and closing buttons can be utilized to set limit switches and verify proper system operation when
installing or servicing an operator.
Opening
Pressing this button will cause the gate to open.
Stop
Pressing this button will cause the gate to
stop moving.
Closing
Pressing this button will cause the gate to close.
Reset E.R.D. Board
Push all three pushbuttons for approximately
5 seconds. All three L.E.D.’s should blink.
Figure 11
Figure 12
mASTEr/SLAvE iNSTALLATiON
Set Dip Switch (C8) “Slave Mode” to ON for
slave operator.
(Rh) Right hand operation requires Dip Switch
(C7) “Left/Right” to be ON
